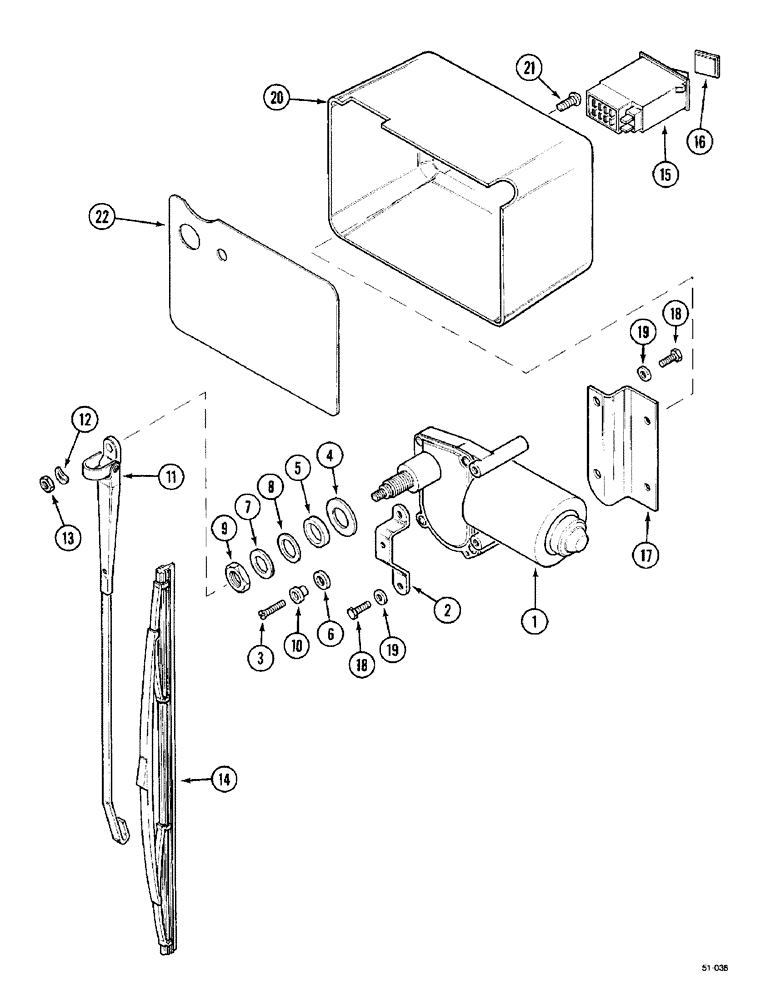

Запчасти Case IH 5150 (4-92) - WINDSCREEN WIPER - REAR (04) - ELECTRICAL SYSTEMS

1

A186172

WIPER MOTOR

MOTOR, WIPER

1шт.

2

1958584C1

BRACKET

1шт.

3

30932R1

SELF-TAP SCREW,Oval Hd, M4.8 x 19

4 x 20 mm

1шт.

4

A165073

WASHER

1шт.

5

A165074

SPACER

7/8 in

1шт.

6

A165076

WASHER,7.87mm ID x 25.4mm OD x 3.05mm Thk

5/16 x 1 x 7/64 in

1шт.

7

495-81182

WASHER,21/32" x 1 1/4" x .060"

21/32 x 1-1/4 x 3/64

1шт.

8

A187577

WASHER

44020 Rubber

1шт.

9

3223055R1

NUT

M16

1шт.

10

F64198

BUMPER,4.98mm ID x 7.92mm OD x 10.21mm L

1шт.

11

A187824

ARM

1шт.

12

L112089

WASHER

1шт.

13

L112090

NUT

8 mm

1шт.

14

A187603

WIPER BLADE

16 in

1шт.

15

1964539C1

WINDSHIELD WIPER SWI

44020 Rear

1шт.

16

1983612C1

SYMBOLS

SYMBOL

1шт.

17

1331147C1

BRACKET

1шт.

18

514-503

BOLT,Hex, M6 x 1 x 12mm, Cl 8.8, Full Thd

M6 x 12

4шт.

19

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

4шт.

20

1331103C2

HOUSING

1шт.

21

905988R1

SELF-TAP SCREW,Phillips Drive, Pan HD, M6.3 x 1.8 x 25mm

1/4 x 1/2 in

2шт.

22

1344021C1

DECAL

1шт.
