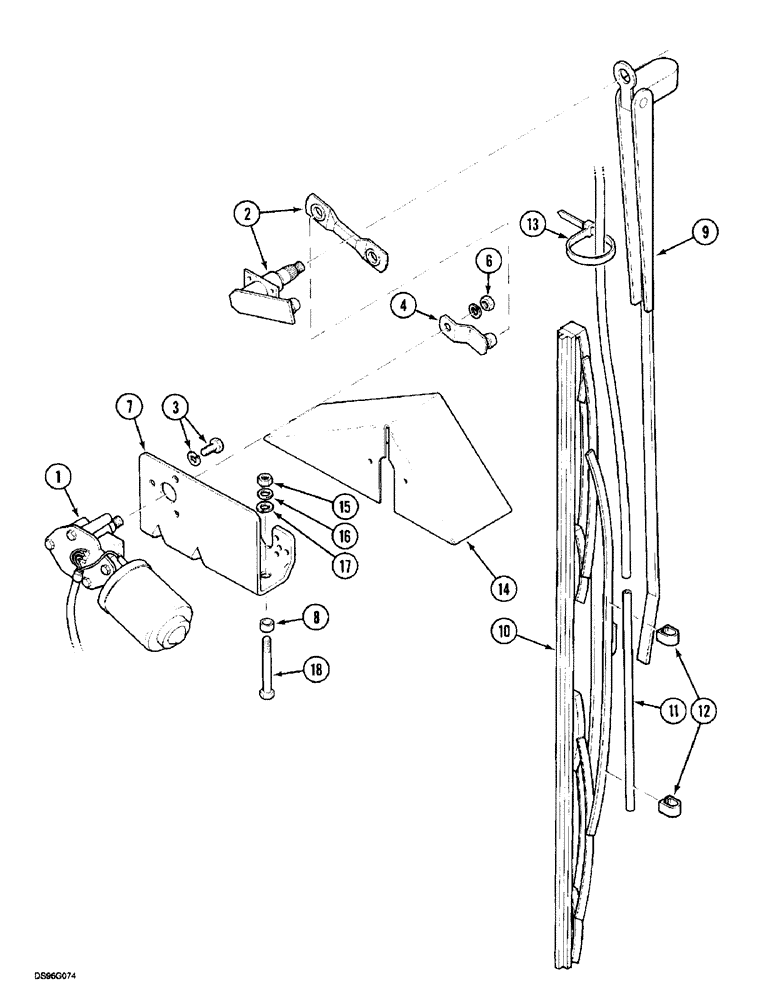

Запчасти Case IH 5150 (4-90) - WINDSCREEN WIPER - FRONT, VALEO (04) - ELECTRICAL SYSTEMS

REF

INSTRUCTION

MOTOR, WIPER, 44020 Consists Of: 1-7

1шт.

1

111139A1

WIPER MOTOR

MOTOR, WIPER ASSY., 12V

1шт.

2

111140A1

PIVOT ASSY.

1шт.

3

111142A1

BOLT

ASSY.

3шт.

4

111143A1

ARM

1шт.

6

111141A1

NUT

1шт.

7

111138A1

SUPPORT

1шт.

8

1344295C1

SPACER,12.5mm ID x 17.1mm OD x 10.3mm L

2шт.

9

111144A1

WIPER ARM

ARM, WIPER 19 in

1шт.

10

111145A1

WIPER BLADE

BLADE, WIPER

1шт.

11

113307A1

JET

NOZZLE

1шт.

12

113305A1

CLIP,ELECTRICAL

2шт.

13

473321C1

CABLE TIE,8" OAL x 0.098" W

CABLE STRAP

2шт.

14

1977992C1

GUARD

1шт.

15

829-1410

NUT,M10 x 1.5, Cl 10.9

2шт.

16

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

11 x 21 x 2 mm

2шт.

17

892-11010

LOCK WASHER,M10

2шт.

18

31064R1

BOLT,Hex Flange, M10 x 1.5 x 80mm, Grade 10.9

10 x 80 mm

2шт.
