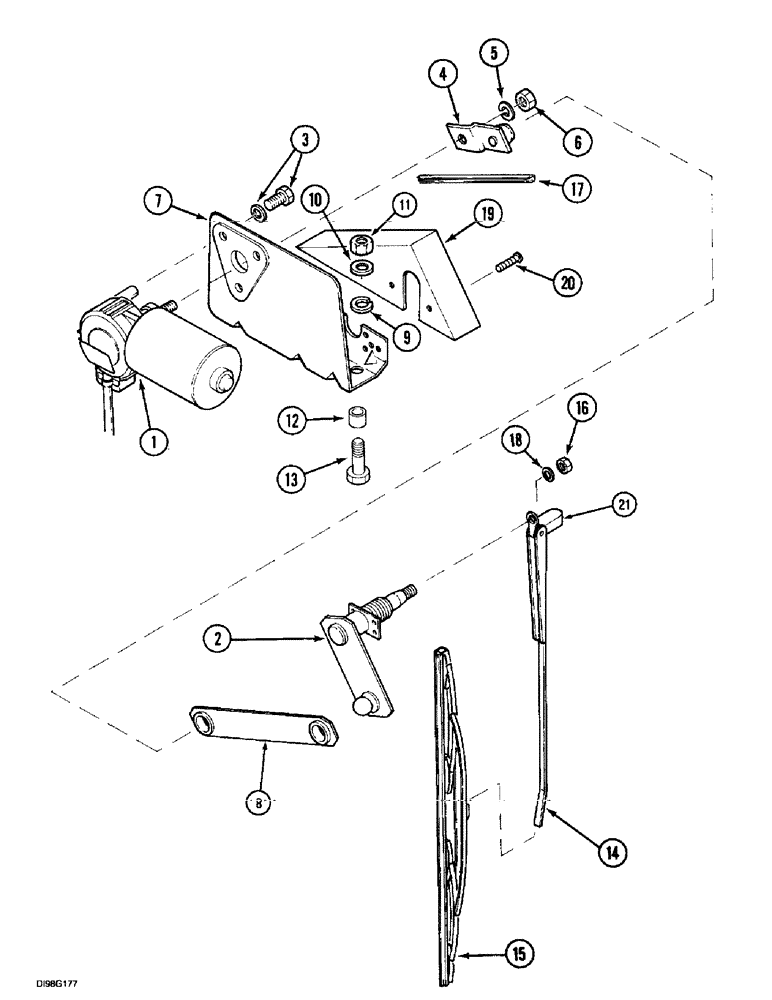

Запчасти Case IH 5150 (4-86) - WINDSCREEN WIPER - FRONT, BOSCH (04) - ELECTRICAL SYSTEMS

113560A2

WIPER MOTOR

MOTOR, WIPER 44020 Consists Of: 1-8

1шт.

A186171

WIPER MOTOR

MOTOR, WIPER 12V, 44020 High Roof Consists Of: 1-8

1шт.

1

A186256

WIPER MOTOR,12V

12V

1шт.

2

A187792

PIVOT

ASSY., 44020 Used With : 113560A2

1шт.

2

N14112

SHAFT

44020 Used With : A186171

1шт.

3

N8362

CAPTIVE WASHER SCREW,Hex, M6 x 18.50mm, Gr 10.9

ASSY., 44020 With Washer

3шт.

4

N8360

SUPPORT

arm

1шт.

5

N8361

SPRING WASHER

1шт.

6

L112090

NUT

8 mm

1шт.

7

N8359

SUPPORT

1шт.

8

N8358

LINK

LINK

1шт.

9

892-11010

LOCK WASHER,M10

2шт.

10

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

11 x 21 x 2 mm

2шт.

11

829-1310

NUT,M10, Cl 10

2шт.

12

1344295C1

SPACER,12.5mm ID x 17.1mm OD x 10.3mm L

2шт.

13

31064R1

BOLT,Hex Flange, M10 x 1.5 x 80mm, Grade 10.9

10 x 80 mm

2шт.

14

A187602

WIPER ARM

ARM, WIPER 12 in, 44020 Straight

1шт.

14

A186222

WIPER ARM,Single, 475mm L

ARM, WIPER 44020 Hook

1шт.

15

192036A1

WIPER BLADE

BLADE, WIPER 44020 Universal

1шт.

16

825-1408

NUT,M8, Cl 8

1шт.

17

1535205C1

SEAL

1шт.

18

893-11008

LOCK WASHER,Ext Tooth, M8

1шт.

19

1977992C1

GUARD

1шт.

20

490-1258

SCREW,Cross Pan Hd, 1/4"-28 x 1/2"

1/4 x 1/2 in, 44020 Used With : 113560A2

2шт.

20

N8356

SCREW,Phillips Drive, Flat HD, M5 x 8mm

44020 Used With : A186171

2шт.

21

L112081

CAP

1шт.
