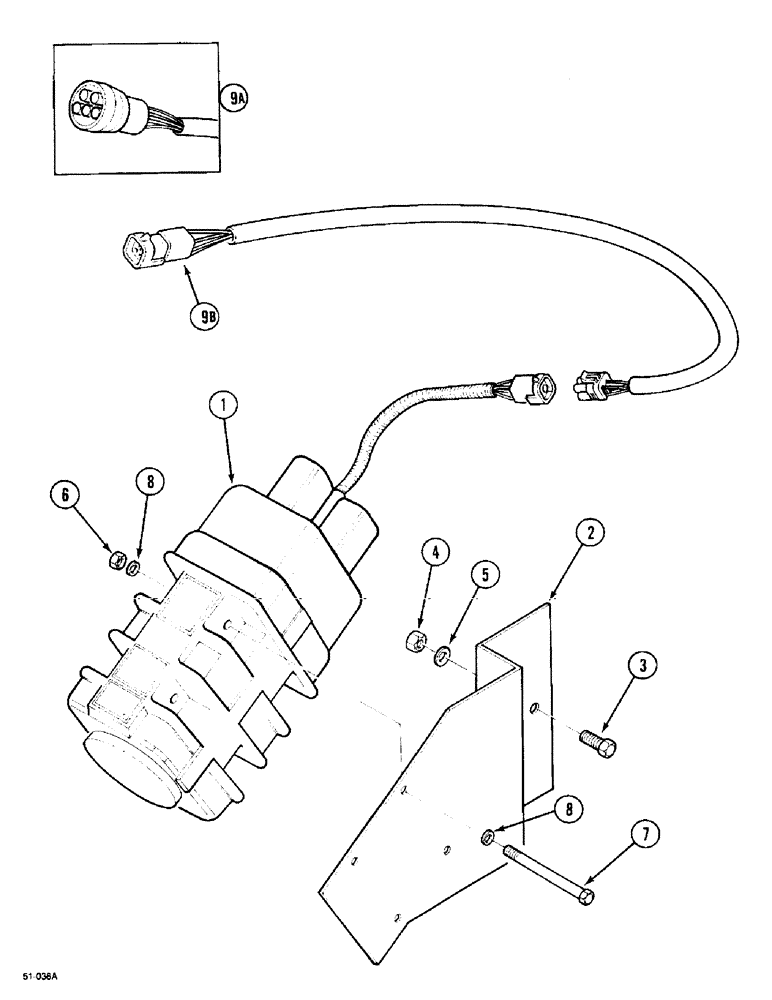

Запчасти Case IH 5150 (4-84) - GROUND SPEED SENSOR (04) - ELECTRICAL SYSTEMS

1

228759A1

SPEED LIMITER

SENSOR ASSY., 47011 UK Only

1шт.

1

228760A1

RADAR

SENSOR ASSY., 47011 Not For UK

1шт.

2

1531896C1

SUPPORT ASSY.

47011 1 Battery

1шт.

2

T103883

BRACKET

47011 2 Battery

1шт.

3

614-8022

BOLT,Hex, M8 x 1.25 x 22mm, Cl 8.8, Full Thd

3шт.

4

825-1408

NUT,M8, Cl 8

3шт.

5

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

3шт.

6

934305R1

THIN NUT,M6 x 1, Thin

6 mm

4шт.

7

814-6100

BOLT,Hex, M6 x 1 x 100mm, Cl 8.8

4шт.

8

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

8шт.

9a

1964560C4

HARNESS

47011 Ground Speed, Start Serial: JJF1029999

1шт.

9b

122497A1

CABLE ASSY.

47011 Ground Speed, Serial Range: -JJF1030000

1шт.

a

176463A1

SENSOR

KIT, 47011 1 Battery Includes : 1 - 8, 9A, UK Only, Start Serial: JJF1029999

1шт.

b

176462A1

SENSOR

KIT, 47011 2 Battery Includes : 1 - 8, 9A, 9B, UK Only, Serial Range: -JJF1030000

1шт.

a

176461A1

SENSOR

KIT, 47011 1 Battery Includes : 1 - 8, 9A, Not for UK, Start Serial: JJF1029999

1шт.

b

134138A1

SENSOR

KIT, 47011 2 Battery Includes : 1 - 8, 9A, 9B, Not for UK, Serial Range: -JJF1030000

1шт.
