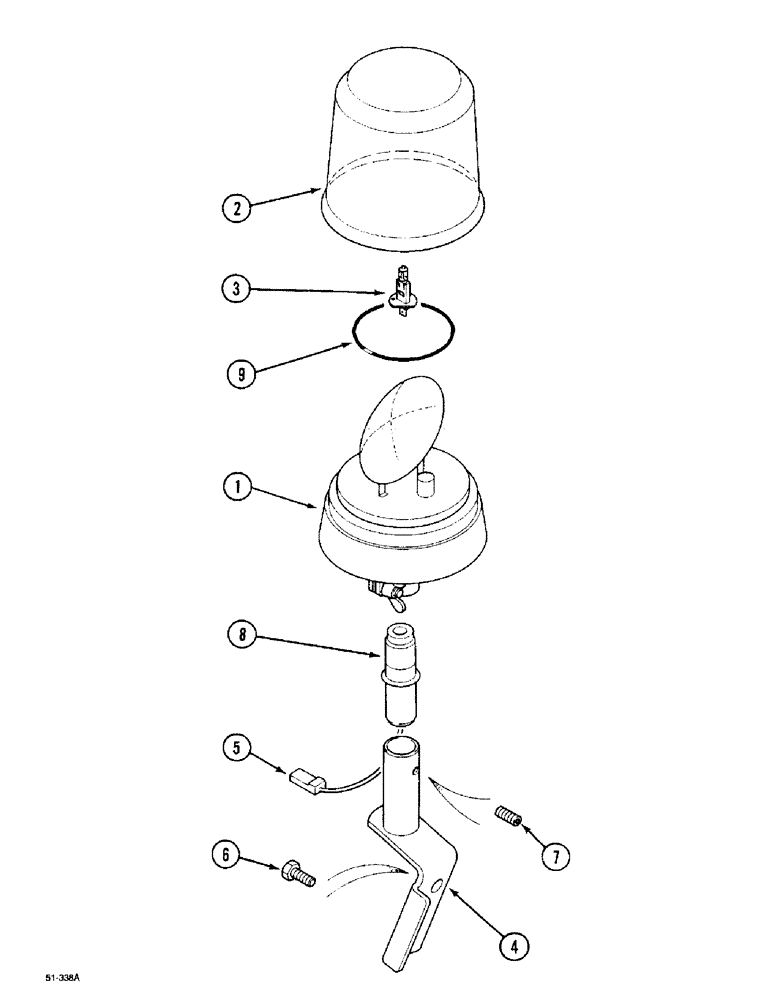

Запчасти Case IH 5150 (4-82) - ROTATING BEACON AND SUPPORT (04) - ELECTRICAL SYSTEMS

1

1530813C1

LIGHT ASSY.

43570 Use With : B506553

1шт.

2

B506553

LENS

1шт.

1

92392C1

BEACON

43570 Use With : A187542 Consists Of: 2-9

1шт.

2

A187542

LENS

Amber

1шт.

3

3125705R1

BULB

12V/55W

1шт.

4

1990556C1

SUPPORT ASSY.

43570 ( - Maxxum Pro)

1шт.

4

255468A1

SUPPORT ASSY.

43570 High Roof (Maxxum Pro - )

1шт.

5

1983401C1

HARNESS

1шт.

6

614-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 8.8, Full Thd

1шт.

7

877-1066

SET SCREW,M6 x 6mm

1шт.

8

1133183R2

ELEC CONNECTOR

1шт.

9

A187575

O-RING

43570 Drive

1шт.
