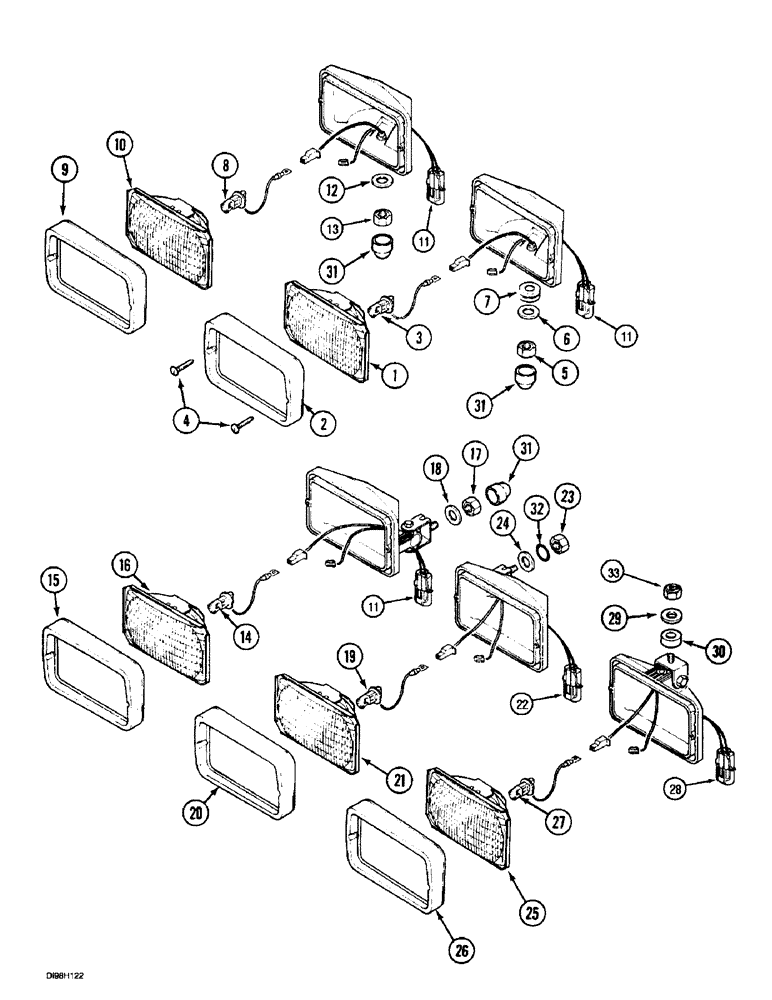

Запчасти Case IH 5150 (4-76) - WORK LIGHTS (04) - ELECTRICAL SYSTEMS

92269C1

WORK LAMP,Halogen, 12V, 55W, Clear

ASSY.

1шт.

1

276498A1

LENS

CARES Cab Rear Fender Includes : 1 - 4, 11, A.B.L.

1шт.

2

1964806C1

BEZEL

CARES Cab Rear Fender Includes : 1 - 4, 11, A.B.L.

1шт.

3

1094362R1

BULB

12V/55W, CARES Cab Rear Fender Includes : 1 - 4, 11, A.B.L.

1шт.

4

260-54312

SELF-TAP SCREW,Cross Pan Hd, #6 x 3/4"

CARES Cab Rear Fender Includes 1 - 4, 11, A.B.L.

2шт.

5

934819R1

LOCK NUT,M10 x 1.5, Thin

CARES Cab Rear Fender Includes 1 - 4, 11, A.B.L.

2шт.

6

495-81140

WASHER,13/32" x 1 1/4" x .060"

CARES Cab Rear Fender Includes: 1 - 4, 11, A.B.L.

4шт.

7

96901C1

GROMMET

CARES Cab Rear Fender Includes : 1 - 4, 11, A.B.L.

4шт.

178345A1

LAMP, WORK,Halogen, 12V, 55W, Clear

LIGHT, WORK CARES Cab Rear Fender Includes : 1 - 4, 11, A.B.L.

2шт.

8

1312210C2

BULB,Halogen H3, 12V, 55W

12V, 55W, CARES Adjustable, Includes 8 - 11, A.B.L.

1шт.

9

1964806C1

BEZEL

CARES Adjustable Includes : 8 - 11, A.B.L.

1шт.

10

276498A1

LENS

CARES Adjustable Includes : 8 - 11, A.B.L.

1шт.

11

245483C1

ELEC CONNECTOR,Male, 2 Pin

2 Junct, CARES Adjustable Includes : 8 - 11, A.B.L.

1шт.

12

495-81140

WASHER,13/32" x 1 1/4" x .060"

CARES Adjustable Includes: 8 - 11, A.B.L.

2шт.

13

934819R1

LOCK NUT,M10 x 1.5, Thin

CARES Adjustable Includes 8 - 11, A.B.L.

1шт.

1983301C1

LAMP, WORK

LIGHT, WORK CARES Adjustable Includes : 8 - 11, A.B.L.

1шт.

14

1094362R1

BULB

12V/55W, CARES Rear, Left Cut-Back Fenders Includes : 14 - 16, 11, A.B.L.

1шт.

15

1964806C1

BEZEL

CARES Rear, Left Cut-Back Fenders Includes : 14 - 16, 11, A.B.L.

1шт.

16

276498A1

LENS

CARES Rear, Left Cut-Back Fenders Includes : 14 - 16, 11, A.B.L.

1шт.

17

934819R1

LOCK NUT,M10 x 1.5, Thin

CARES Rear, Left Cut-Back Fenders Includes 14 - 16, 11, A.B.L.

1шт.

18

495-81140

WASHER,13/32" x 1 1/4" x .060"

CARES Rear, Left Cut-Back Fenders Includes: 14 - 16, 11, A.B.L.

2шт.

1987490C1

LIGHT ASSY.

CARES Rear, Left Cut-Back Fenders Includes : 14 - 16, 11, A.B.L.

1шт.

19

1312210C2

BULB,Halogen H3, 12V, 55W

12V, 55W, CARES Adjustable, Cab Front, Includes 19 - 22, HELLA

1шт.

20

1987493C1

BEZEL

CARES Adjustable Cab Front Includes : 19 - 22, HELLA

1шт.

21

1987494C1

LAMP BASE

CARES Adjustable Cab Front Includes : 19 - 22, HELLA

1шт.

22

3227856R1

CONNECTION

2 Junct, CARES Adjustable Cab Front Includes : 19 - 22, HELLA

1шт.

23

934819R1

LOCK NUT,M10 x 1.5, Thin

CARES Adjustable Cab Front Includes 19 - 22, HELLA

2шт.

24

495-81140

WASHER,13/32" x 1 1/4" x .060"

CARES Adjustable Cab Front Includes: 19 - 22, HELLA

2шт.

92263C1

LIGHT ASSY.

CARES Adjustable Cab Front Includes : 19 - 22, HELLA

4шт.

25

276498A1

LENS

CARES Platform Includes : 25 - 28, A.B.L.

1шт.

26

1964806C1

BEZEL

CARES Platform Includes : 25 - 28, A.B.L.

1шт.

27

1094362R1

BULB

12V/55W, CARES Platform Includes : 25 - 28, A.B.L.

1шт.

28

245483C1

ELEC CONNECTOR,Male, 2 Pin

2 Junct, CARES Platform Includes : 25 - 28, A.B.L.

1шт.

29

495-81140

WASHER,13/32" x 1 1/4" x .060"

CARES Platform Includes: 25 - 28, A.B.L.

4шт.

30

K915800

MISC PACKAGING

INSULATOR, CARES Platform Includes : 25 - 28, A.B.L.

4шт.

31

3221520R1

CAP

CARES Platform Includes : 25 - 28, A.B.L.

1шт.

32

934674R1

WASHER,M10.5 x 30 x 2.5

10.5 x 30 x 2.5 mm, CARES Platform Includes : 25 - 28, A.B.L.

2шт.

33

934819R1

LOCK NUT,M10 x 1.5, Thin

43530 With Cab, CARES Platform Includes 25 - 28, A.B.L.

4шт.

130916A1

CABLE ASSY.

43530 Adaptor Dual Lights Not Illustrated, CARES Platform Includes : 25 - 28, A.B.L.

1шт.
