(4-74) - LAMPS - TAIL, FLASH AND STOP

Запчасти Case IH 5150 (4-74) - LAMPS - TAIL, FLASH AND STOP (04) - ELECTRICAL SYSTEMS

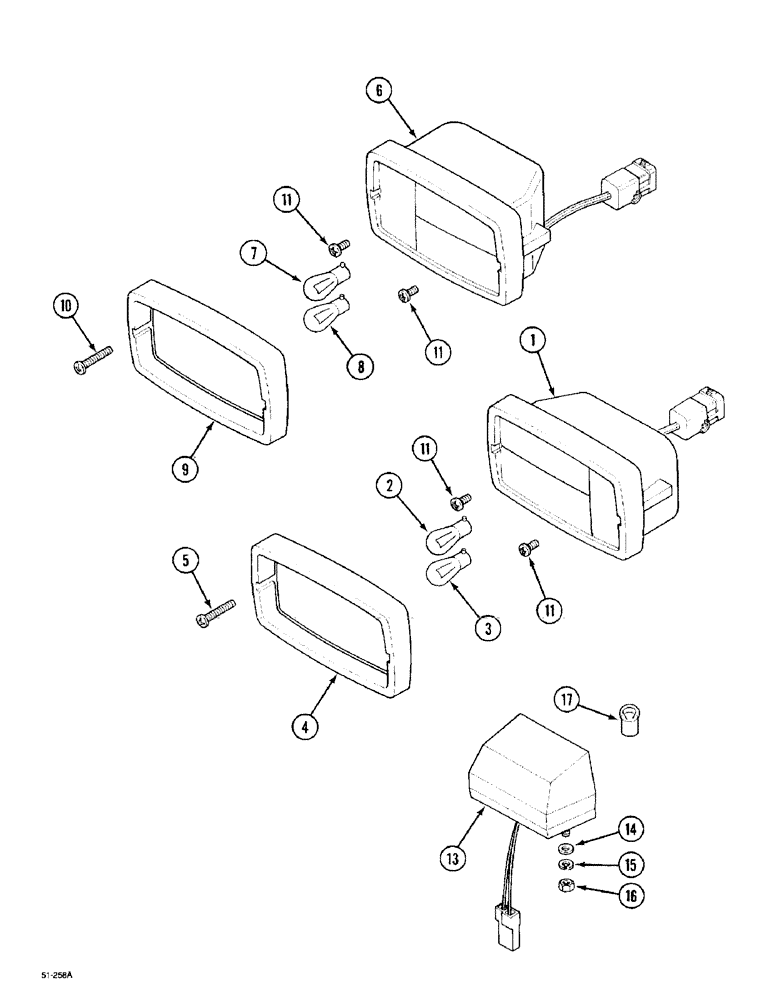

Схема запчастей Case IH 5150 - (4-74) - LAMPS - TAIL, FLASH AND STOP (04) - ELECTRICAL SYSTEMS
1
16
7
3
11
11
5
10
13
11
8
4
11
17
9
15
14
6
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

1964744C1

LAMP, TAIL

LIGHT, TAIL 43520 Right Includes : 2, 3, 4, 5

1шт.

2

1094366R1

BULB

12V, 21w, 43520 Flash

1шт.

3

3131234R1

BULB,P25-2, 12V, 5W

43520 Stop-Tail

1шт.

4

1983266C1

BEZEL

43520 Right

1шт.

5

1983269C1

SCREW

2шт.

6

1964745C1

LAMP, TAIL,12V, 21W, Amber/Red

LIGHT, TAIL 43520 Left Includes : 7, 8, 9, 10

1шт.

7

1094366R1

BULB

12V, 21w, 43520 Flash

1шт.

8

3131234R1

BULB,P25-2, 12V, 5W

43520 Stop-Tail

1шт.

9

1983265C1

BEZEL

43520 Left

1шт.

10

1983269C1

SCREW

2шт.

11

1334768C1

SELF-TAP SCREW,Hex, M5.5 x 15mm

2шт.

13

1983579C1

NUMBER PLATE LAMP

43520 Number Plate With Cab

2шт.

13

3231505R91

LIGHT ASSY.

43520 Number Plate Without Cab

1шт.

14

895-11005

WASHER,5.5mm ID x 10mm OD x 1mm Thk

4шт.

15

892-11005

LOCK WASHER,M5

4шт.

16

825-1405

NUT,M5, Cl 8

4шт.

17

H40556

BULB

2шт.
