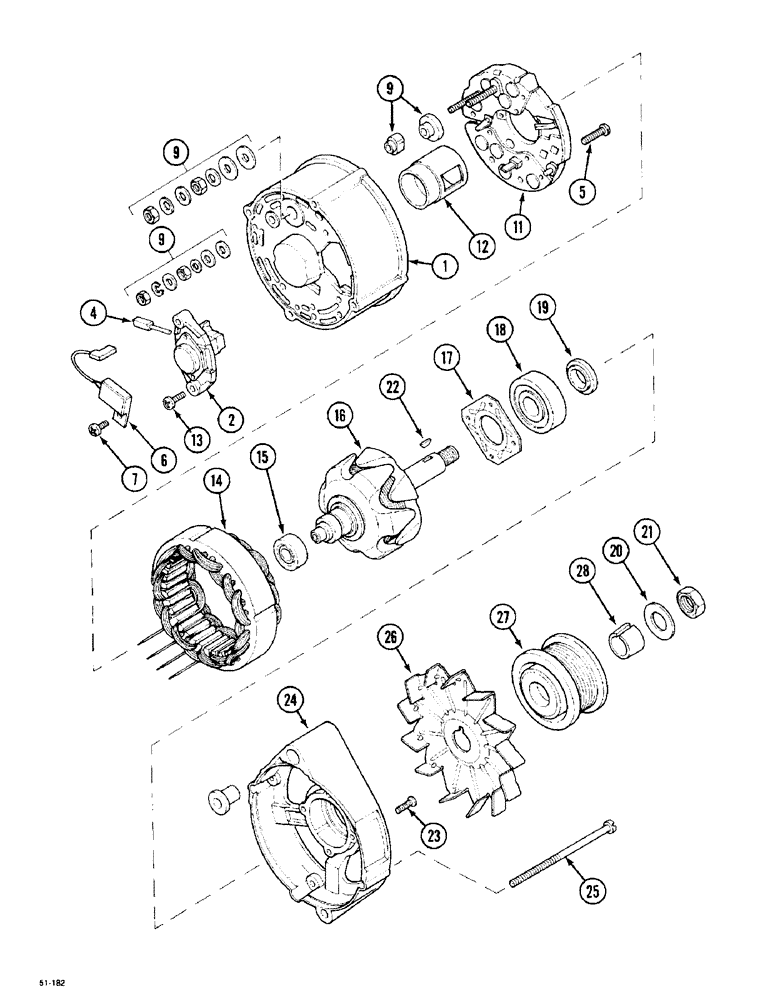

Запчасти Case IH 5150 (4-66) - ALTERNATOR, BOSCH (65 AMP) (04) - ELECTRICAL SYSTEMS

A187873

ALTERNATOR,12V, 65A

14V, 65 amp, Consists Of: 1-25

1шт.

A187873GV

ALTERNATOR

Value, 14V, 65 Amp

1шт.

1

A187903

COVER

housing

1шт.

2

A187906

VOLTAGE REGULATOR

1шт.

4

1964968C1

COMMUTATOR BRUSH

1шт.

5

A187898

SCREW

with Washer

2шт.

6

3079134R1

CAPACITOR

1шт.

7

1964969C1

SCREW

1шт.

9

A187904

MULTIPOLE CONNECTOR

1шт.

11

A187917

RECTIFIER

1шт.

12

A187899

INNER SHIELD

1шт.

13

A187907

CAPTIVE WASHER SCREW

with Washer

2шт.

14

A187995

STATOR

ASSY.

1шт.

15

A187908

BALL BEARING,12 mm ID x 32 mm OD x 10 mm

ball

1шт.

16

1987499C1

ROTOR

ASSY.

1шт.

17

A187901

FIXING PLATE

PLATE

1шт.

18

A186183

BALL BEARING,17 mm ID x 47 mm OD x 14 mm

ball

1шт.

3078897R91

SET

Consists Of: 19-23

1шт.

19

NSS

NOT SOLD SEPARAT

RING

1шт.

20

NSS

NOT SOLD SEPARAT

WASHER lock

1шт.

21

NSS

NOT SOLD SEPARAT

NUT

1шт.

22

NSS

NOT SOLD SEPARAT

KEY

1шт.

23

NSS

NOT SOLD SEPARAT

SCREW

1шт.

24

A187994

HOUSING

housing

1шт.

25

A186193

BOLT,Pan, Cross Recess Phillips, M5 x 110mm

4шт.

26

259868A1

FAN

1шт.

27

J908560

PULLEY

1шт.

28

J908563

RETAINER

1шт.
