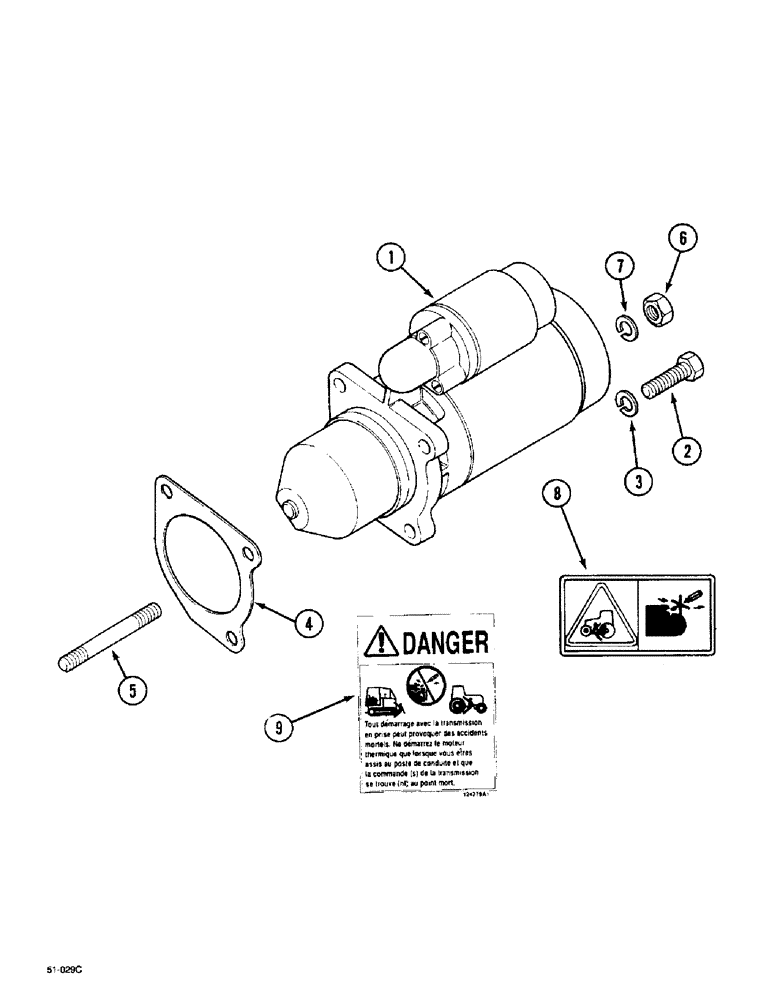

Запчасти Case IH 5150 (4-58) - STARTER MOTOR (04) - ELECTRICAL SYSTEMS

1

REF

INSTRUCTION

STARTER ASSY., 42510, 5120, See Figure: 4-60

1шт.

1

REF

INSTRUCTION

STARTER ASSY., 42510, 5130, 5140, 5150, See Figure: 4-62

1шт.

2

30976R1

12 PT SCREW,M10 x 40mm, Cl 12.9

10 x 40 mm

2шт.

3

892-11010

LOCK WASHER,M10

2шт.

4

L112209

GASKET,0.79mm Thk

1шт.

5

T104577

STUD

10 x 110 mm

1шт.

6

825-1410

NUT,M10, Cl 8

1шт.

7

892-11010

LOCK WASHER,M10

1шт.

8

180543A1

DECAL

1шт.
