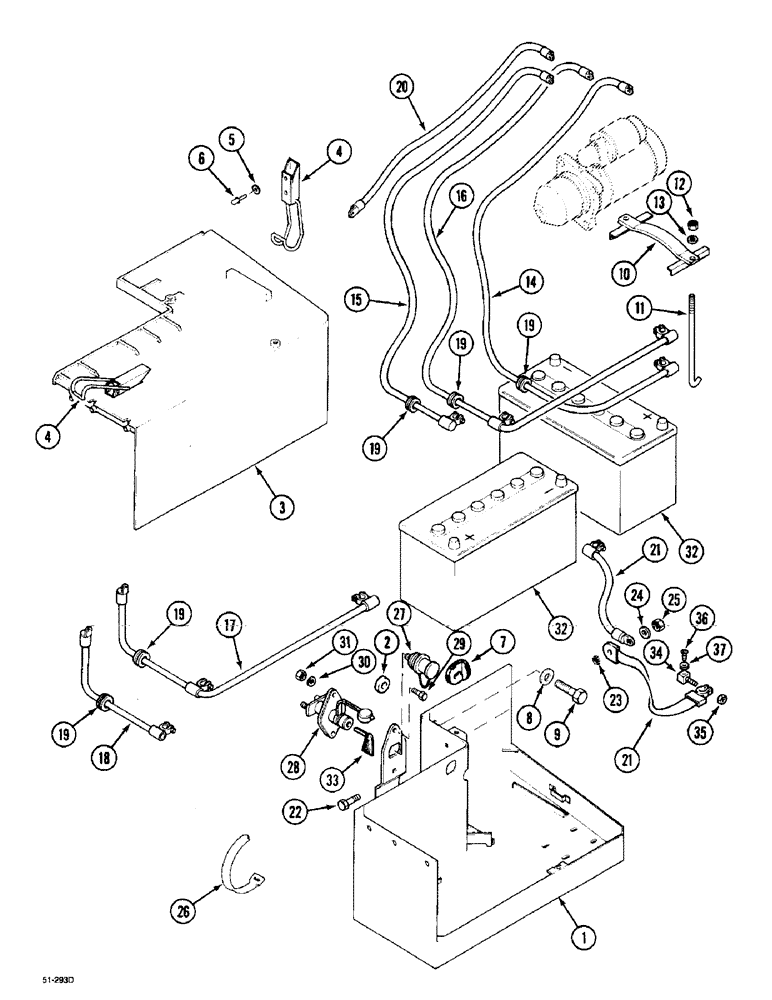

Запчасти Case IH 5150 (4-54) - BATTERY AND CABLES (04) - ELECTRICAL SYSTEMS

1

1531890C4

SUPPORT ASSY.

90136 Small 1 Battery Includes : 2

1шт.

1

1531956C5

SUPPORT ASSY.

90136 2 Battery Includes : 2

1шт.

2

1533122C1

SPACER

3шт.

3

1531634C2

COVER ASSY

90136 Includes : 4, 5, 6

1шт.

3

1533014C1

COVER ASSY

90136 Includes : 4, 5, 6 1 Battery

1шт.

4

1531635C1

FASTENER

2шт.

5

905951R1

WASHER,M3.7 x 11 x .8

4шт.

6

905938R1

RIVET

4шт.

7

134029A1

PLUG

1шт.

7

1533051C3

PLUG

90136 1 Battery Small

1шт.

8

905789R1

WASHER,M17 ID x 30 OD x 3 Thk

2шт.

9

862-16050

HEX SOC SCREW,M16 x 50mm, Cl 12.9

M16 x 50; 12.9

2шт.

10

T104583

BRACKET

ASSY.

2шт.

11

T104160

ROD

4шт.

12

934286R1

THIN NUT,M8 x 1.25, Thin

4шт.

13

3218129R1

WASHER

4шт.

14

1533118C2

CABLE

40110 Starter 1 Battery Small

1шт.

15

1533311C2

CABLE

40110 Starter 1 Battery Heavy Duty

1шт.

16

1533312C2

CABLE

40110 Starter 2 Battery Heavy Duty Version Without : 28

1шт.

17

1533313C2

CABLE

40110 2 Battery Heavy Duty Version With : 28

1шт.

18

1533333C2

CABLE

40110 Starter 1 Battery Heavy Duty Version With : 27, 28

1шт.

19

1533307C2

GROMMET

1шт.

20

1533314C2

CABLE

40110 Version With : 27, 28

1шт.

21

1530671C1

CABLE ASSY.

40110 Ground

1шт.

21

1533134C1

CABLE

40110 Ground 2 Battery

1шт.

22

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

1шт.

23

893-11010

LOCK WASHER,Ext Tooth, M10

1шт.

24

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

11 x 21 x 2 mm

1шт.

25

832-10410

NUT,M10 x 1.5, Cl 8

1шт.

26

3402979R2

BAND

cable, 350 mm

1шт.

27

1964554C1

TERMINAL

1шт.

28

1983240C1

SWITCH

40110 Disconnect

1шт.

29

614-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8, Full Thd

2шт.

30

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

2шт.

31

831-1106

NUT

M6

2шт.

32

1502296C1

BATTERY, DRY

BATTERY DRY 12V, 40110, Charged

1шт.

32

1502297C1

BATTERY, WET

BATTERY WET 12V, 40110 Wet Charged

1шт.

33

1539005C1

IGNITION KEY

KEY, 40110 Use With : 1983240C1

1шт.

34

1534945C1

SCREW,M8 x 30mm, Cl 4.6

1шт.

35

1534946C1

NUT

1шт.

36

905887R1

SCREW,M6 x 12mm

6 x 12 mm

1шт.

37

905886R1

WASHER,M6.4 ID x 12 OD x 1.6 Thk, Brass

6 mm

1шт.

3055196R1

BOOT

40110 Starter Not Illustrated

1шт.
