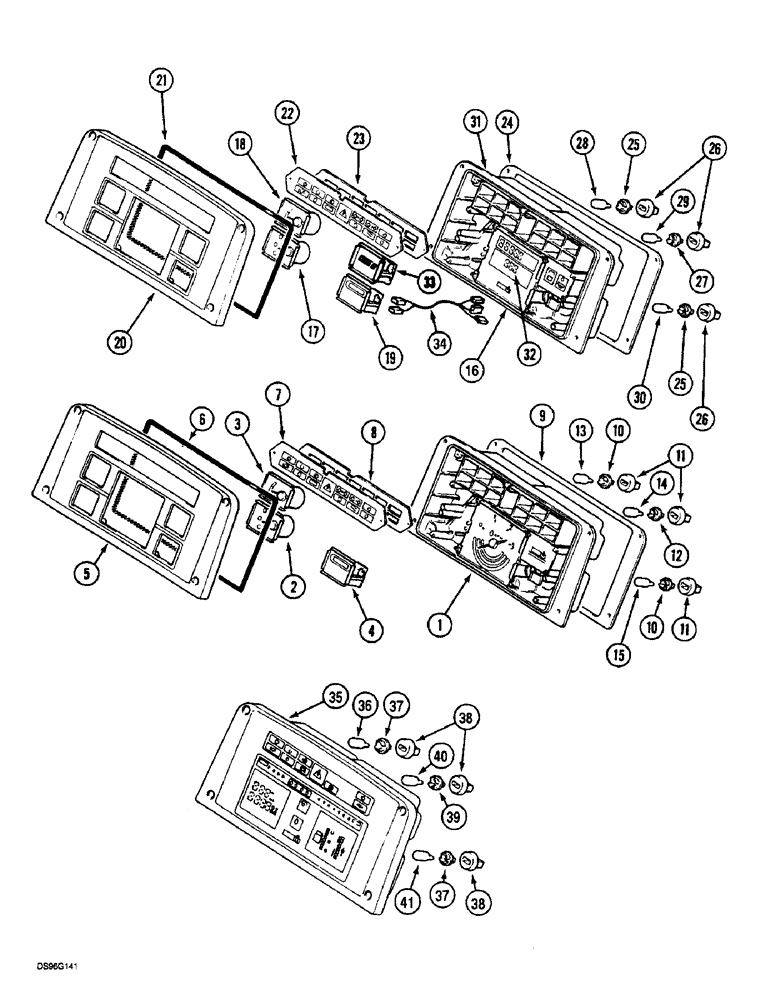

Запчасти Case IH 5150 (4-50) - INSTRUMENT CLUSTER, ISSPRO, STANDARD, SYNCHROMESH (04) - ELECTRICAL SYSTEMS

1

1983597C2

PANEL, INSTRUMENTS

PANEL, INSTRUMENT CLUSTER, 30 km/h, 42040 Consists Of: 2-15

1шт.

1

1983598C2

PANEL, INSTRUMENTS

PANEL, INSTRUMENT CLUSTER, 40 km/h, 42040 Consists Of: 2-15

1шт.

2

92353C1

FUEL GAUGE

1шт.

3

92354C2

INDICATOR

GAUGE, 42012 Temperature

1шт.

4

193661A1

HOURMETER

42015, Start Serial: JJF1045983

1шт.

4

131625A1

HOURMETER

42015, Serial Range: -JJF1045982

1шт.

5

1964871C1

BEZEL

1шт.

6

1964872C1

O-RING

1шт.

7

1964873C1

LENS

42040 Warning Light

1шт.

8

1964874C1

GASKET

1шт.

9

1964875C1

GASKET

1шт.

10

1964876C1

HOLDER

16шт.

11

1964877C1

BOOT

17шт.

12

1983316C1

DIODE ELEMENT

HOLDER, 42040 Warning Light

1шт.

13

3221006R1

BULB,W10/3, 12V, 3W

12V/3 W

12шт.

14

D71346

TAIL LAMP,12V

No. 168

1шт.

15

3221006R1

BULB,W10/3, 12V, 3W

12V/3 W

4шт.

143183A2

CLUSTER, INSTR.

CLUSTER, INSTRUMENT 42040 Consists Of: 16-33, ISSPRO, De-Luxe, Powershift

1шт.

16

194287A1

CASE ASSY.

MODULE, ISSPRO, De-Luxe, Powershift

1шт.

17

92353C1

FUEL GAUGE

42013 ( - JJF1045982), ISSPRO, De-Luxe, Powershift

1шт.

17

190975A1

FUEL GAUGE

42013 (JJF1045983 - ), ISSPRO, De-Luxe, Powershift

1шт.

18

92354C2

INDICATOR

GAUGE, 42012 Temperature, ISSPRO, De-Luxe, Powershift

1шт.

19

188602A1

HOURMETER

ISSPRO, De-Luxe, Powershift

1шт.

20

1964870C1

BEZEL

ISSPRO, De-Luxe, Powershift

1шт.

21

1964872C1

O-RING

ISSPRO, De-Luxe, Powershift

1шт.

22

1964873C1

LENS

42040 Warning Light, ISSPRO, De-Luxe, Powershift

1шт.

23

1964874C1

GASKET

ISSPRO, De-Luxe, Powershift

1шт.

24

1964875C1

GASKET

ISSPRO, De-Luxe, Powershift

1шт.

25

1964876C1

HOLDER

42040 Black Includes : 28, ISSPRO, De-Luxe, Powershift

2шт.

25

195157A1

DIODE ELEMENT

HOLDER, 42040 Green Includes : 30, ISSPRO, De-Luxe, Powershift

1шт.

26

1964877C1

BOOT

ISSPRO, De-Luxe, Powershift

17шт.

27

1983316C1

DIODE ELEMENT

HOLDER, 42040 Warning Light Blue Includes : 29, ISSPRO, De-Luxe, Powershift

14шт.

28

F64363

BULB

42040 Indicator, ISSPRO, De-Luxe, Powershift

2шт.

29

D71346

TAIL LAMP,12V

No. 168, ISSPRO, De-Luxe, Powershift

14шт.

30

3221006R1

BULB,W10/3, 12V, 3W

12V/3 W, ISSPRO, De-Luxe, Powershift

1шт.

31

194241A1

CASE

HOUSING, ISSPRO, De-Luxe, Powershift

1шт.

32

188066A1

SPEEDOMETER

ISSPRO, De-Luxe, Powershift

1шт.

33

194242A1

EMBLEM CASE/IH

ISSPRO, De-Luxe, Powershift

1шт.

34

190331A1

HARNESS

40150 Hourmeter Adaptor, ISSPRO, De-Luxe, Powershift, Serial Range: -JJF1013876

1шт.

35

1987440C1

CLUSTER, INSTR.

CLUSTER, INSTRUMENT 42040 Consists Of: 36-41, FUTABA, De-Luxe, Powershift

1шт.

36

W10478

LAMP

No. 194, FUTABA, De-Luxe, Powershift

12шт.

37

1964876C1

HOLDER

FUTABA, De-Luxe, Powershift

16шт.

38

1964877C1

BOOT

FUTABA, De-Luxe, Powershift

17шт.

39

1983316C1

DIODE ELEMENT

HOLDER, FUTABA, De-Luxe, Powershift

1шт.

40

D71346

TAIL LAMP,12V

No. 168, FUTABA, De-Luxe, Powershift

1шт.

41

3221006R1

BULB,W10/3, 12V, 3W

12V/3 W, FUTABA, De-Luxe, Powershift

4шт.
