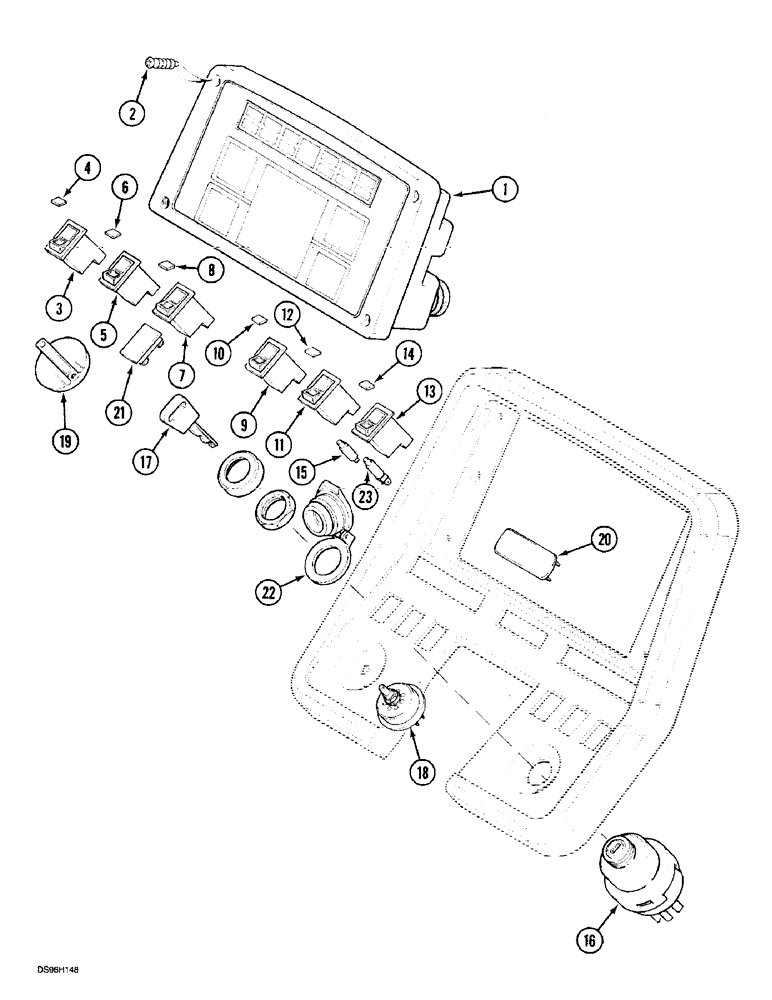

Запчасти Case IH 5150 (4-46) - INSTRUMENT PANEL (04) - ELECTRICAL SYSTEMS

1

REF

INSTRUCTION

CLUSTER, 42040 See Figure: 4-50

1шт.

2

260-16516

SELF-TAP SCREW,Cross Pan Hd, #10 x 1"

4шт.

3

245908C1

FLASHER SWITCH

41511 Hazard Warning

1шт.

4

1983283C1

SYMBOLS

SYMBOL 41511 Red

1шт.

5

1983559C1

LIGHT SWITCH

41511 Worklight

1шт.

6

1983589C1

SYMBOLS

SYMBOL 41511 Worklight

1шт.

7

245909C1

SWITCH ASSY

41510 Beacon Light

1шт.

8

1983276C1

SYMBOLS

SYMBOL LENS, 41510 Green

1шт.

9

3231782R1

SWITCH

41510 Ether Starting

1шт.

10

1983231C1

SYMBOLS

SYMBOL LENS, 41510 Ether Starting

1шт.

11

1964649C1

SWITCH ASSY

41510 Front P.T.O.

1шт.

12

1983273C1

SYMBOLS

SYMBOL LENS, 41510 Front P.T.O.

1шт.

13

91855C1

SWITCH

41510 MFD 30 km/h

1шт.

13

1964835C1

SWITCH ASSY

41510 MFD 40 km/h

1шт.

14

1964651C1

SYMBOLS

SYMBOL 41510 Used With : 13

1шт.

15

3141107R1

BULB,W5/1.2, 12V, 1.2W

1шт.

16

1987424C1

SWITCH ASSY

41512 Ignition With Cab

1шт.

16

1533738C1

SWITCH ASSY

41512 Ignition Without Cab

1шт.

17

1964831C2

IGNITION KEY

ignition

1шт.

18

1983207C2

SWITCH

41511 Light

1шт.

19

1977521C1

BUTTON

41511 Light Switch With Screw

1шт.

20

1981861C1

PROTECTOR

cover

1шт.

21

245918C1

LENS

PLUG, blanking, rocker switch

1шт.

22

1983228C1

COVER

COVER, key switch 42040 Without Cab

1шт.

22

121731A1

WASHER

COVER, 42040 With Cab

1шт.

23

134608A1

LAMP SOCKET

BULB

1шт.
