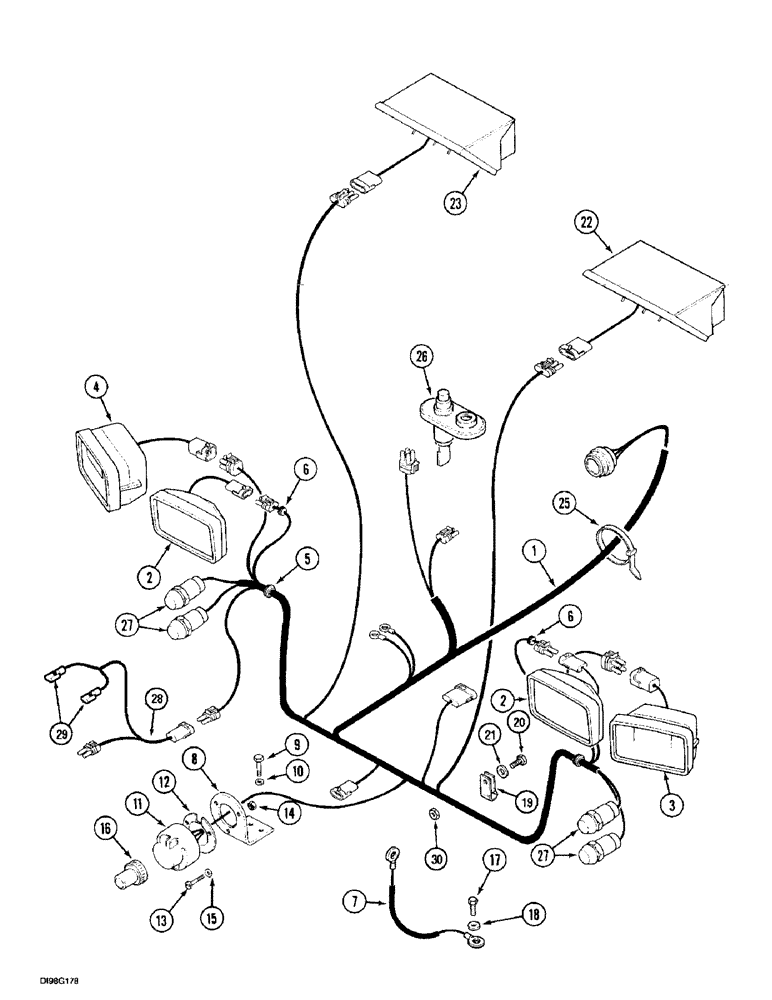

Запчасти Case IH 5150 (4-40) - HARNESS - REAR FENDER, WITHOUT CAB (04) - ELECTRICAL SYSTEMS

1

1987584C2

HARNESS

40160, Fixed Rops And 225 mm Fenders, Serial Range: -JJF1015045

1шт.

1

1983542C1

HARNESS

40160, Fixed Rops And 225 mm Fenders, Start Serial: JJF1015046

1шт.

1

1987583C1

HARNESS

40160, Foldable Rops And Cut-Back Fenders, Serial Range: -JJF1015045

1шт.

1

1983432C1

HARNESS

40160, Foldable Rops And Cut-Back Fenders, Start Serial: JJF1015046

1шт.

2

REF

INSTRUCTION

LAMP ASSY., 43550 Worklight See Figure: 4-76

2шт.

3

1964744C1

LAMP, TAIL

LIGHT, TAIL 43520 Rear

1шт.

4

1964745C1

LAMP, TAIL,12V, 21W, Amber/Red

LIGHT, TAIL 43520 Rear

1шт.

5

1340167C1

GROMMET

2шт.

6

96901C1

GROMMET

2шт.

7

92326C2

CABLE

40160 Ground Strap

1шт.

8

1961336C2

SUPPORT

1шт.

8

1530642C1

SUPPORT

41030 Power Beyond

1шт.

9

827-6014

BOLT,Hex, M6 x 14mm, Cl 10.9, Full Thd

M6 x 14; 10.9

2шт.

10

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

1шт.

11

3142496R1

SOCKET/RECEPTACLE,A7

7 Pin

1шт.

12

3131909R1

CAP

1шт.

13

931858R1

SCREW,M5 x 0.8 x 35mm, Cl 5.8

M5 x 35

3шт.

14

825-1405

NUT,M5, Cl 8

3шт.

14

825-1408

NUT,M8, Cl 8

41030 Power Beyond

1шт.

14

825-1406

NUT,M6, Cl 8

41030 Power Beyond

1шт.

15

495-21019

WASHER,#8

3шт.

16

A139672

PLUG

CONNECTOR, 41030 7 Pin

1шт.

17

614-8012

BOLT,Hex, M8 x 1.25 x 12mm, Cl 8.8, Full Thd

1шт.

17

827-6014

BOLT,Hex, M6 x 14mm, Cl 10.9, Full Thd

M6 x 14; 10.9, 40160 Power Beyond

1шт.

18

896-11008

WASHER,9mm ID x 17mm OD x 2mm Thk

9 x 17 x 2 mm

1шт.

19

362120R1

CLAMP,9.53mm ID, 10.32mm Bolt Hole, P Type

4шт.

20

814-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

M8 x 16

4шт.

21

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

4шт.

22

1983302C1

LIGHT ASSY.

43530 Front Position Right

1шт.

23

1983303C1

LIGHT ASSY.

43530 Front Position Left

1шт.

25

3148767R2

COLLAR CLAMP

STRAP cable, 197 mm

6шт.

26

1534229C1

PUSH BUTTON SWITCH

41510 Parking Brake

1шт.

27

1964848C1

SWITCH, THREE POINT

41510 Remote Control

4шт.

28

1987395C1

HARNESS

40160 Number Plate Light Includes: 29

1шт.

29

225325C1

ELEC. TERMINAL PIN

1шт.

30

825-1408

NUT,M8, Cl 8

4шт.
