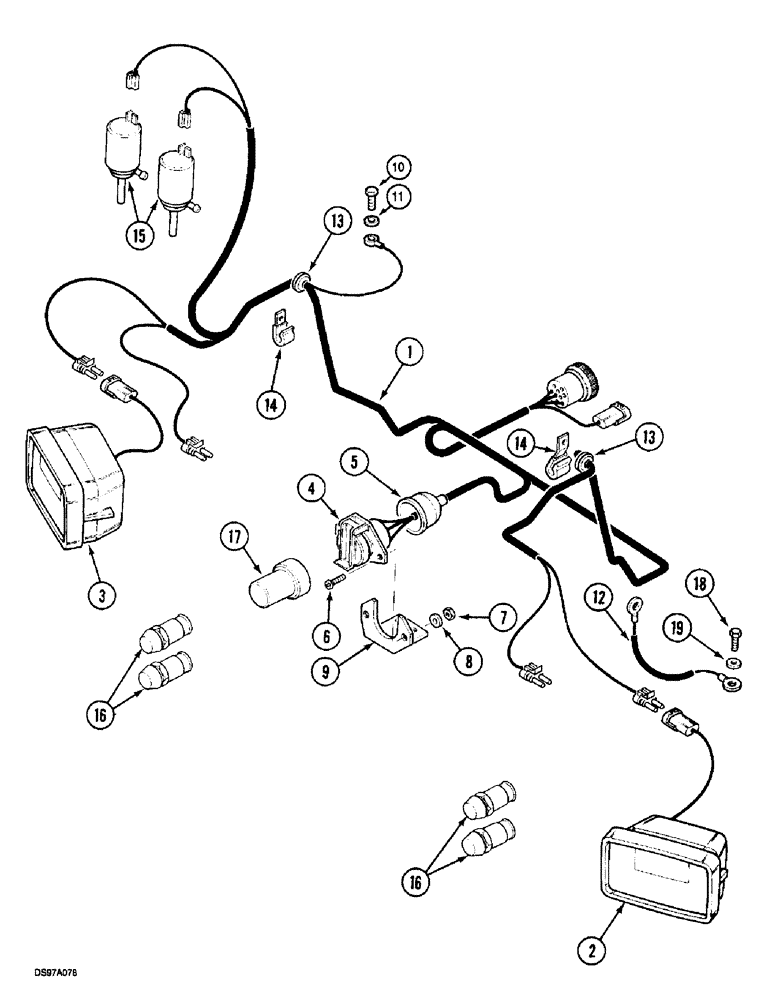

Запчасти Case IH 5150 (4-38) - HARNESS - REAR FENDER, WITH CAB (04) - ELECTRICAL SYSTEMS

1

1546554C3

HARNESS

40160, Start Serial: JJF1025680

1шт.

1

1983258C2

HARNESS

40160, Serial Range: -JJF1025679

1шт.

2

1964744C1

LAMP, TAIL

LIGHT, TAIL 43520 Rear

1шт.

3

1964745C1

LAMP, TAIL,12V, 21W, Amber/Red

LIGHT, TAIL 43520 Rear

1шт.

4

3142496R1

SOCKET/RECEPTACLE,A7

41030 7 Pin

1шт.

5

3131909R1

CAP

1шт.

6

827-6014

BOLT,Hex, M6 x 14mm, Cl 10.9, Full Thd

M6 x 14; 10.9

2шт.

7

825-1405

NUT,M5, Cl 8

3шт.

7

825-1410

NUT,M10, Cl 8

41030 Power Beyond

1шт.

7

825-1406

NUT,M6, Cl 8

41030 Power Beyond

1шт.

8

895-11005

WASHER,5.5mm ID x 10mm OD x 1mm Thk

3шт.

9

1961336C2

SUPPORT

1шт.

9

1530642C1

SUPPORT

41030 Power Beyond

1шт.

10

931858R1

SCREW,M5 x 0.8 x 35mm, Cl 5.8

M5 x 35

3шт.

10

827-6014

BOLT,Hex, M6 x 14mm, Cl 10.9, Full Thd

M6 x 14; 10.9, 40160 Power Beyond

1шт.

11

895-11005

WASHER,5.5mm ID x 10mm OD x 1mm Thk

1шт.

12

92326C2

CABLE

1шт.

13

1340167C1

GROMMET

2шт.

14

263515R91

CLIP,ELECTRICAL

1шт.

15

1964696C2

PUMP

ASSY

2шт.

16

1964848C1

SWITCH, THREE POINT

41510 Remote Control

4шт.

17

A139672

PLUG

CONNECTOR, 41030 7 Pin

1шт.

18

614-8012

BOLT,Hex, M8 x 1.25 x 12mm, Cl 8.8, Full Thd

1шт.

19

896-11008

WASHER,9mm ID x 17mm OD x 2mm Thk

9 x 17 x 2 mm

1шт.
