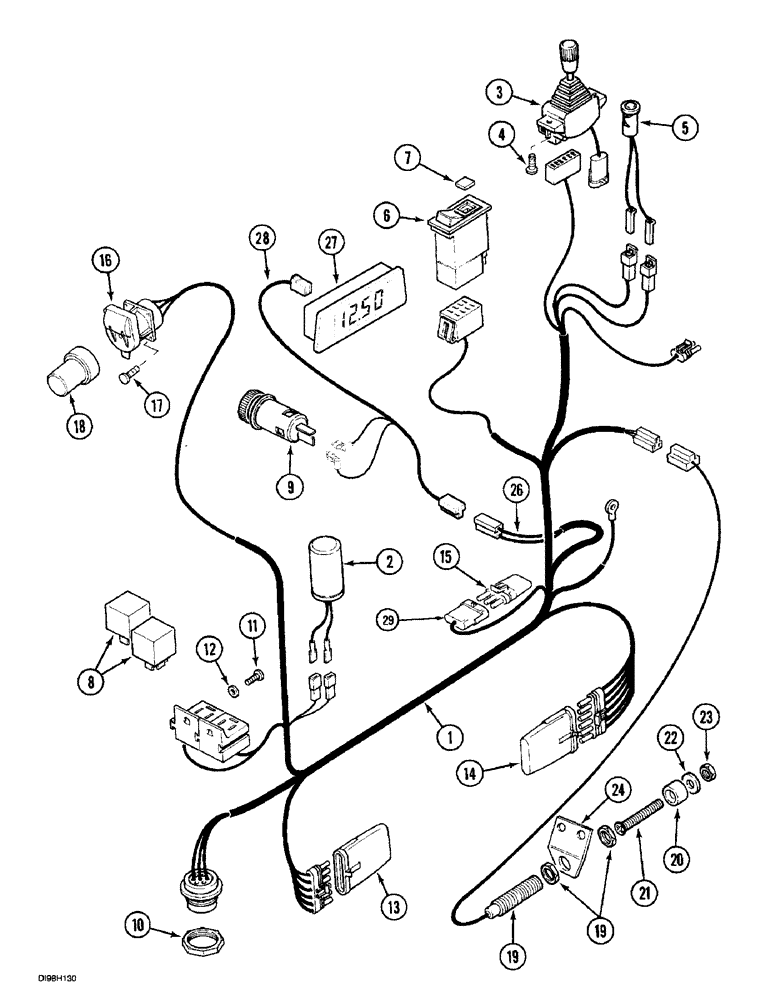

Запчасти Case IH 5150 (4-36) - HARNESS - CONTROL CONSOLE, (JJF1030000 - ) (04) - ELECTRICAL SYSTEMS

1

239709A1

HARNESS

40150 (Maxxum Pro - )

1шт.

1

122490A1

HARNESS

40150 (JJF1030000 - Maxxum Pro)

1шт.

2

3125984R2

FLASHER UNIT

41510 Hitch Control

1шт.

3

1534361C2

SWITCH, THREE POINT

41510 Hitch Control 6 Position

1шт.

4

840-1516

SCREW,Pan, M5 x 16mm, Cl 4.8

2шт.

5

1983234C2

SIGHTGLASS

LAMP, 41510 Hitch Control

1шт.

6

1983282C1

DIFF LOCK SWITCH

41510 Diff Lock

1шт.

7

1983274C1

SYMBOLS

SYMBOL LENS

1шт.

8

1983394C2

RELAY

30 amp, 41531 Hitch Control

1шт.

8

1987409C1

RELAY

30A, 41531 Diff Lock

1шт.

9

1964773C1

CIGAR LIGHTER

12 v

1шт.

10

225347C1

NUT

1шт.

11

905915R1

SELF-TAP SCREW,Hex Hd, M4.9 x 9.5

4.8 x 9.5 mm

2шт.

12

895-11005

WASHER,5.5mm ID x 10mm OD x 1mm Thk

2шт.

13

131734A1

DIODE

1шт.

14

131735A1

DIODE

1шт.

15

A187874

MODULE

MODULE

3шт.

16

1533880C1

SOCKET/RECEPTACLE

41030 3 Pin

1шт.

17

1534925C1

RIVET

4шт.

18

1533899C1

MULTIPOLE CONNECTOR,Female, 3 Pole

SOCKET, 41030 3 Pin

1шт.

19

107220A1

SENSOR

41510 4th Range

1шт.

20

140699A1

FITTING

MAGNET

2шт.

21

140700A2

SCREW,Phil Flat Hd, Csk, M4 x 40mm, Brass

4 x 40 mm

1шт.

22

934599R1

WASHER,M5.3 x 15 x 1.6

1шт.

23

832-10404

NUT,M4 x 0.7, Cl 8.8

1шт.

24

1999906C2

SUPPORT ASSY.

1шт.

25

614-6012

BOLT,Hex, M6 x 1 x 12mm, Cl 8.8, Full Thd

2шт.

26

122498A1

CABLE ASSY.

HARNESS, 40150 Cigar Lighter

1шт.

27

239154A1

TIME-WATCH

40180 (Maxxum Pro - )

1шт.

28

239708A1

HARNESS

46039 Adaptor

1шт.

29

A187826

DIODE

MODULE

1шт.
