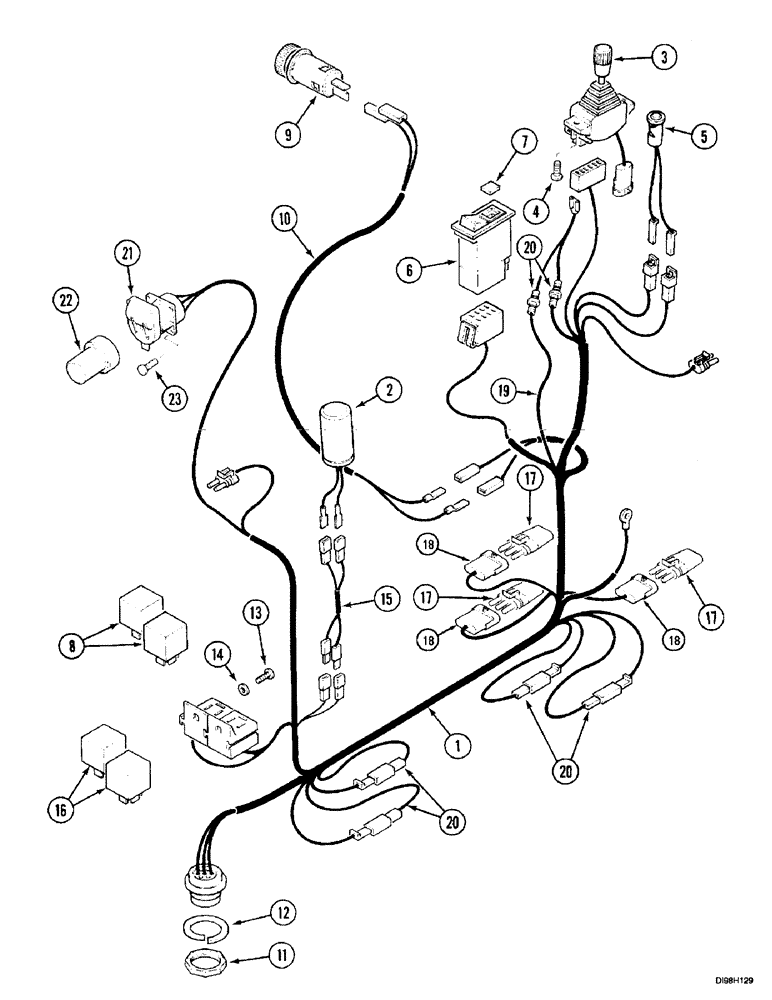

Запчасти Case IH 5150 (4-32) - HARNESS - CONTROL CONSOLE, ( - JJF1029999) (04) - ELECTRICAL SYSTEMS

1

1546493C1

HARNESS

40150 Includes : 20, Serial Range: JJF1024793-1029999

1шт.

1

1987578C1

HARNESS

40150 Includes : 20, Serial Range: JJF1015046-1024792

1шт.

1

1533884C2

HARNESS

40150 Includes : 20, Serial Range: -JJF1015045

1шт.

2

3125984R2

FLASHER UNIT

41510 Hitch Control

1шт.

3

1534361C3

SWITCH, THREE POINT

41510 6 Position

1шт.

4

840-1516

SCREW,Pan, M5 x 16mm, Cl 4.8

2шт.

5

1983234C2

SIGHTGLASS

LAMP, 41510 Hitch Control

1шт.

6

1983282C1

DIFF LOCK SWITCH

41510 Diff Lock

1шт.

7

1983274C1

SYMBOLS

SYMBOL LENS

1шт.

8

1983394C2

RELAY

30 amp, 41531 Resistor Suppressed Hitch Control

1шт.

8

1987409C1

RELAY

30A, 41531 Diode Suppressed Diff Lock

1шт.

9

1964943C1

CIGAR LIGHTER

1шт.

10

1964957C1

HARNESS

1шт.

11

225347C1

NUT

40150 Use With : 1987578C1

1шт.

11

459329C1

NUT

40150 Use With : 1533884C2

1шт.

12

459330C1

LOCK WASHER

1шт.

13

905915R1

SELF-TAP SCREW,Hex Hd, M4.9 x 9.5

4.8 x 9.5 mm

2шт.

14

895-11005

WASHER,5.5mm ID x 10mm OD x 1mm Thk

2шт.

15

1983604C1

CABLE

1шт.

16

1983394C2

RELAY

30 amp, 41531 Use With : 1533884C2

2шт.

17

A187874

MODULE

MODULE, 46039 Hitch Control

3шт.

18

A187826

DIODE

MODULE

3шт.

19

1533847C1

HARNESS

40150 SHR Switch Includes : 20

1шт.

20

548239R2

RECTIFIER

DIODE, 2-31/64

1шт.

21

1533880C1

SOCKET/RECEPTACLE

41030 3 Pin, Start Serial: JJF1014948

1шт.

21

1964989C1

SOCKET/RECEPTACLE

41030 3 Pin, Serial Range: -JJF1014947

1шт.

22

1533899C1

MULTIPOLE CONNECTOR,Female, 3 Pole

SOCKET, 41030 3 Pin, Start Serial: JJF1014948

1шт.

22

1983583C1

SOCKET/RECEPTACLE

41030 3 Pin, Serial Range: -JJF1014947

1шт.

23

1534925C1

RIVET

4шт.
