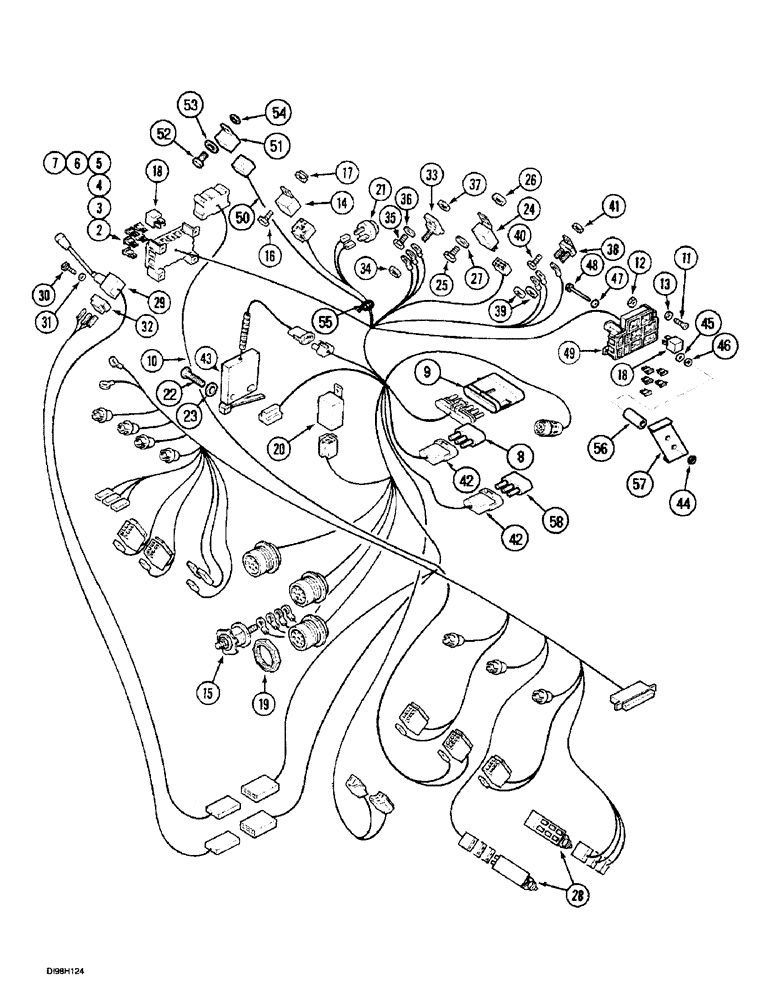

Запчасти Case IH 5150 (4-28) - HARNESS - INSTRUMENT PANEL, (JJF1030000 - ) (04) - ELECTRICAL SYSTEMS

1

122486A1

HARNESS

40150 ( - Maxxum Pro)

1шт.

1

231486A3

HARNESS

40150 (Maxxum Pro - )

1шт.

2

A149798

FUSE

5 amp, 40520 Tan

3шт.

3

A149799

FUSE

7.5 amp, 40520 Brown

5шт.

4

A149800

FUSE,10 Amp

10 amp, 40520 Red

13шт.

5

A149801

FUSE,Lt Blue, 15 Amp

15 amp, 40520 Light Blue

6шт.

5

137117A1

FUSE

BREAKER circuit, 15A, 40520 Windshield Washer

1шт.

6

A149802

FUSE

20 amp, 40520 Yellow

3шт.

7

A149804

FUSE

30 amp, 40520 Green

1шт.

8

A187874

MODULE

MODULE

1шт.

9

131736A1

DIODE

1шт.

10

1534967C1

HARNESS

40150 Front P.T.O.

1шт.

11

905973R1

SCREW,M3

13 x 10 mm, 40150, Serial Range: -JJF1046094

8шт.

11

175993A1

RIVET

40150, Start Serial: JJF1046095

8шт.

12

825-1103

NUT,M3, Cl 8

M3

8шт.

13

895-11003

WASHER,3.2mm ID x 7mm OD x 0.5mm Thk

(3.2 x 7 x 0.5 mm), 40150, Serial Range: -JJF1046094

8шт.

14

1502351C1

RELAY

12V, 40520 Low Beam

1шт.

15

A187523

JUNCTION BLOCK

1шт.

16

827-6014

BOLT,Hex, M6 x 14mm, Cl 10.9, Full Thd

M6 x 14; 10.9

1шт.

17

934305R1

THIN NUT,M6 x 1, Thin

6 mm

1шт.

18

1983394C2

RELAY

30 amp, 41531 Resistor Suppressed Flasher

1шт.

18

1987409C1

RELAY

30A, 41531 Diode Suppressed Flasher

1шт.

19

225347C1

NUT

4шт.

20

1987452C1

RELAY

12V, 70 amp

1шт.

21

1983529C1

BUZZER

42032 Park Brake

1шт.

22

840-1312

SCREW,Pan, M3 x 121mm, Cl 4.8

2шт.

23

895-11003

WASHER,3.2mm ID x 7mm OD x 0.5mm Thk

(3.2 x 7 x 0.5 mm)

2шт.

24

1964535C2

FLASHER UNIT,12V

LAMP

1шт.

25

614-5012

BOLT,Hex, M5 x 0.8 x 12mm, Cl 8.8, Full Thd

1шт.

26

934306R1

LOCK NUT,M5 x .8, Thin

1шт.

27

934044R1

WASHER,M5.3 ID x 10 OD x 1 Thk

5 mm

1шт.

28

1964945C4

SWITCH

41510 Brake

2шт.

29

REF

INSTRUCTION

SWITCH, 41511 Flasher - Horn See Figure: 6-84

1шт.

30

814-4008

BOLT,Hex, M4 x 0.7 x 8mm, Cl 8.8, Full Thd

M4 x 8

2шт.

31

495-31017

WASHER,#8

4 mm

2шт.

32

REF

INSTRUCTION

SWITCH selector, 41510 Forward - Neutral - Reverse See Figure: 6-84

1шт.

33

245539C1

CONNECTION

BLOCK

1шт.

34

425-104

NUT,1/4"-20, Cl 5

1шт.

35

614-5025

BOLT,Hex, M5 x 0.8 x 25mm, Cl 8.8, Full Thd

M5 x 25

1шт.

36

934599R1

WASHER,M5.3 x 15 x 1.6

2шт.

37

934306R1

LOCK NUT,M5 x .8, Thin

1шт.

38

403069R1

CIRCUIT-BREAKER,30A

30 amp

1шт.

39

825-1405

NUT,M5, Cl 8

2шт.

40

827-6014

BOLT,Hex, M6 x 14mm, Cl 10.9, Full Thd

M6 x 14; 10.9

1шт.

41

934305R1

THIN NUT,M6 x 1, Thin

6 mm

1шт.

42

A187826

DIODE

MODULE

1шт.

43

92397C1

SWITCH

41510 Inching Pedal

1шт.

234713A1

PACKAGE, REPAIR

41510 Includes : 44 - 49, 56, 57

1шт.

44

831-10406

NUT, M6; 8

2шт.

45

934850R1

WASHER

6 mm

2шт.

46

829-1306

NUT,M6, Cl 10

2шт.

47

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

2шт.

48

614-6040

BOLT,Hex, M6 x 1 x 40mm, Cl 8.8, Full Thd

2шт.

49

225342C2

BOX, FUSE

BLOCK - plug, relay protection, 4 Relay Ports, 16 Fuse Ports

1шт.

232800A1

KIT

service, 41510 Inching Pedal Includes: 50-55

1шт.

50

226259A1

HARNESS

1шт.

51

1983394C2

RELAY

30 amp, 41531 Powershift

1шт.

52

614-5020

BOLT,Hex, M5 x 0.8 x 20mm, Cl 8.8, Full Thd

1шт.

53

895-11005

WASHER,5.5mm ID x 10mm OD x 1mm Thk

1шт.

54

934306R1

LOCK NUT,M5 x .8, Thin

1шт.

55

3148767R2

COLLAR CLAMP

STRAP cable, 197 mm

1шт.

56

234715A1

SPACER

TUBE

1шт.

57

234714A1

SUPPORT

2шт.

58

A187874

MODULE

MODULE

1шт.
