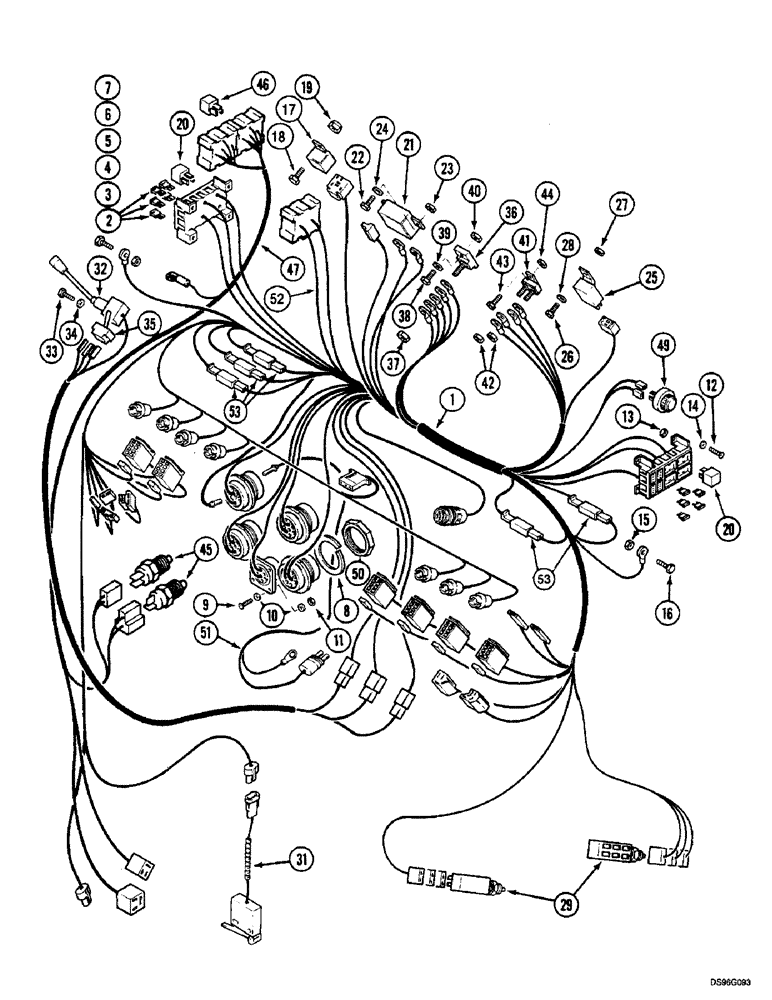

Запчасти Case IH 5150 (4-22) - HARNESS - INSTRUMENT PANEL, ( - JJF1029999) (04) - ELECTRICAL SYSTEMS

1

1546489C1

HARNESS

40150 (JJF1024793 - 1029999), Serial Range: JJF1024793-1029999

1шт.

1

1546488C1

HARNESS

40150 (JJF1024793 - 1029999) With Powershift, Serial Range: JJF1024793-1029999

1шт.

1

1987574C1

HARNESS

40150, 5120, 5130, 5140, Serial Range: JJF1015046-1024792

1шт.

1

1987573C1

HARNESS

40150, 5120, 5130, 5140, With Powershift, Serial Range: JJF1015046-1024792

1шт.

1

1987417C1

HARNESS

40150, 5120, 5130, 5140, Serial Range: -JJF1015045

1шт.

2

A149798

FUSE

5 amp, 40520 Tan

6шт.

3

A149799

FUSE

7.5 amp, 40520 Brown

5шт.

4

A149800

FUSE,10 Amp

10 amp, 40520 Red

13шт.

5

A149801

FUSE,Lt Blue, 15 Amp

15 amp, 40520 Light Blue

6шт.

6

A149802

FUSE

20 amp, 40520 Yellow

1шт.

7

A149804

FUSE

30 amp, 40520 Green

1шт.

8

459330C1

LOCK WASHER

4шт.

9

840-1312

SCREW,Pan, M3 x 121mm, Cl 4.8

4шт.

10

895-11003

WASHER,3.2mm ID x 7mm OD x 0.5mm Thk

(3.2 x 7 x 0.5 mm)

8шт.

11

825-1103

NUT,M3, Cl 8

M3

4шт.

12

905973R1

SCREW,M3

13 x 10 mm

8шт.

13

825-1103

NUT,M3, Cl 8

M3

8шт.

14

895-11003

WASHER,3.2mm ID x 7mm OD x 0.5mm Thk

(3.2 x 7 x 0.5 mm)

8шт.

15

829-1306

NUT,M6, Cl 10

2шт.

16

614-6008

BOLT,Hex, M6 x 1 x 8mm, Cl 8.8, Full Thd

M6 x 8

2шт.

17

1502351C1

RELAY

12V, 41531 Low Beam, 5120, 5130, 5140, Serial Range: -JJF1017717

1шт.

18

827-6014

BOLT,Hex, M6 x 14mm, Cl 10.9, Full Thd

M6 x 14; 10.9, 41531, 5120, 5130, 5140

1шт.

19

934305R1

THIN NUT,M6 x 1, Thin

6 mm, 41531, 5120, 5130, 5140

1шт.

20

1983394C2

RELAY

30 amp

1шт.

20

1987409C1

RELAY

30A, 41531 Forward-Reverse

1шт.

21

1987452C1

RELAY

12V, 70 amp

1шт.

22

614-5020

BOLT,Hex, M5 x 0.8 x 20mm, Cl 8.8, Full Thd

1шт.

23

934306R1

LOCK NUT,M5 x .8, Thin

1шт.

24

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

1шт.

25

1964535C2

FLASHER UNIT,12V

LAMP

1шт.

26

827-6014

BOLT,Hex, M6 x 14mm, Cl 10.9, Full Thd

M6 x 14; 10.9

1шт.

27

934305R1

THIN NUT,M6 x 1, Thin

6 mm

1шт.

28

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

1шт.

29

1964945C3

SWITCH

41510 Brake

2шт.

31

92397C1

SWITCH

41510 Inching Pedal With Powershift

1шт.

32

1964640C2

SWITCH ASSY

41511 Turn Signal, 5120, 5130, 5140, Serial Range: -JJF1017717

1шт.

32

1534417C2

FLASHER SWITCH

41511 Flasher - Horn, Serial Range: JJF1017718-1029999

1шт.

33

814-4008

BOLT,Hex, M4 x 0.7 x 8mm, Cl 8.8, Full Thd

M4 x 8

2шт.

34

495-31017

WASHER,#8

4 mm

2шт.

35

REF

INSTRUCTION

SWITCH selector, 41510 Forward-Reverse See Figures: 6-80, 82

1шт.

36

245539C1

CONNECTION

BLOCK

1шт.

37

425-104

NUT,1/4"-20, Cl 5

1шт.

38

614-5025

BOLT,Hex, M5 x 0.8 x 25mm, Cl 8.8, Full Thd

M5 x 25

1шт.

39

934599R1

WASHER,M5.3 x 15 x 1.6

2шт.

40

934306R1

LOCK NUT,M5 x .8, Thin

1шт.

40

459329C1

NUT

42032, 5120, 5130, 5140

4шт.

41

403069R1

CIRCUIT-BREAKER,30A

30 amp

1шт.

42

825-1405

NUT,M5, Cl 8

2шт.

43

827-6014

BOLT,Hex, M6 x 14mm, Cl 10.9, Full Thd

M6 x 14; 10.9

1шт.

44

934305R1

THIN NUT,M6 x 1, Thin

6 mm

1шт.

44

934305R1

THIN NUT,M6 x 1, Thin

6 mm

1шт.

138421A1

KIT

ADAPTER, 41510 Inching Pedal Switch Includes : 45, 46, 47

1шт.

45

1964885C4

SWITCH

1шт.

45

115206A1

LIMIT SWITCH

46030 Bottom

1шт.

45

115205A1

LIMIT SWITCH

46030 Top

1шт.

46

1987409C1

RELAY

30A

2шт.

47

136032A2

HARNESS

46030 Adaptor

1шт.

49

1983529C1

BUZZER

1шт.

50

225347C1

NUT

42032, Start Serial: JJF1015046

4шт.

51

1533855C1

HARNESS

40150 Front P.T.O., 5120, 5130, 5140, Serial Range: -JJF1015045

1шт.

52

1533854C1

HARNESS

40150 Front P.T.O., 5120, 5130, 5140, Serial Range: -JJF1015045

1шт.

52

1534967C1

HARNESS

40150 Front P.T.O., Start Serial: JJF1015046

1шт.

53

548239R2

RECTIFIER

DIODE, 2-31/64

5шт.
