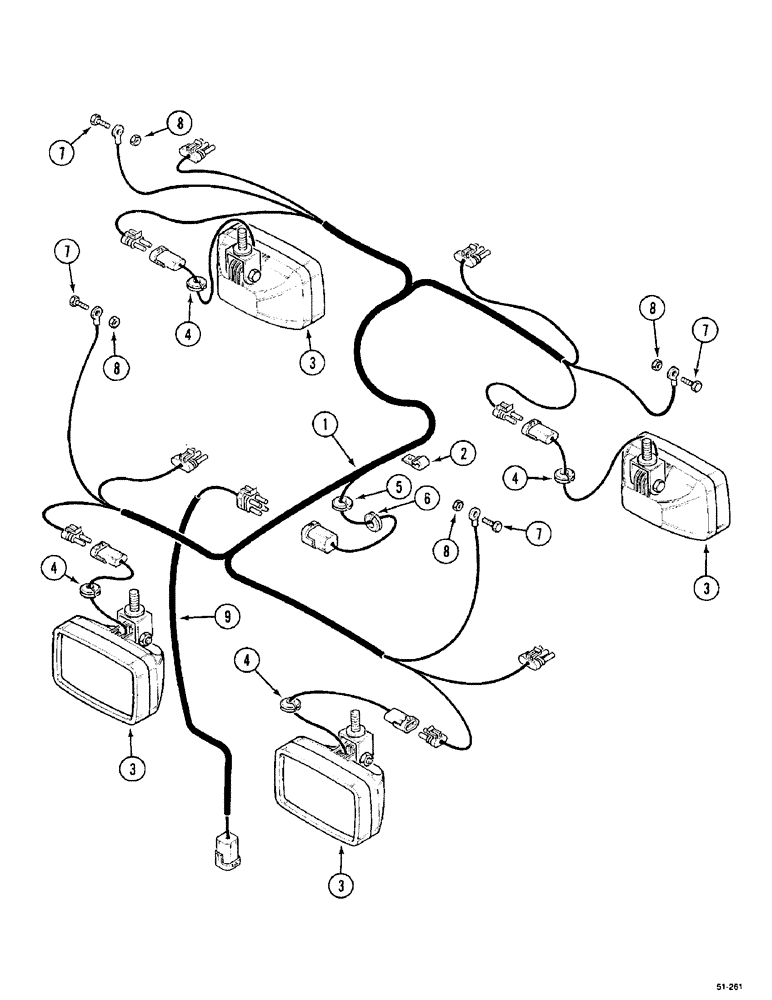

Запчасти Case IH 5150 (4-20) - HARNESS - CANOPY (04) - ELECTRICAL SYSTEMS

1

1964605C3

HARNESS

1шт.

2

384557R1

CLIP

4шт.

3

REF

INSTRUCTION

LAMP ASSY., 43550 Worklight See Figure: 4-76

4шт.

4

117975

GROMMET,5/8" ID x 1 3/8" x .062", Diag Cut

5/8

4шт.

5

112745

GROMMET,7/8" ID x 1 1/4" Groove Dia

1шт.

6

28627R1

GROMMET,1 1/8" ID x 1 3/4" x .062", Diag cut

2шт.

7

614-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd

4шт.

8

829-1306

NUT,M6, Cl 10

4шт.

9

1983249C2

HARNESS

40160 Extension

1шт.
