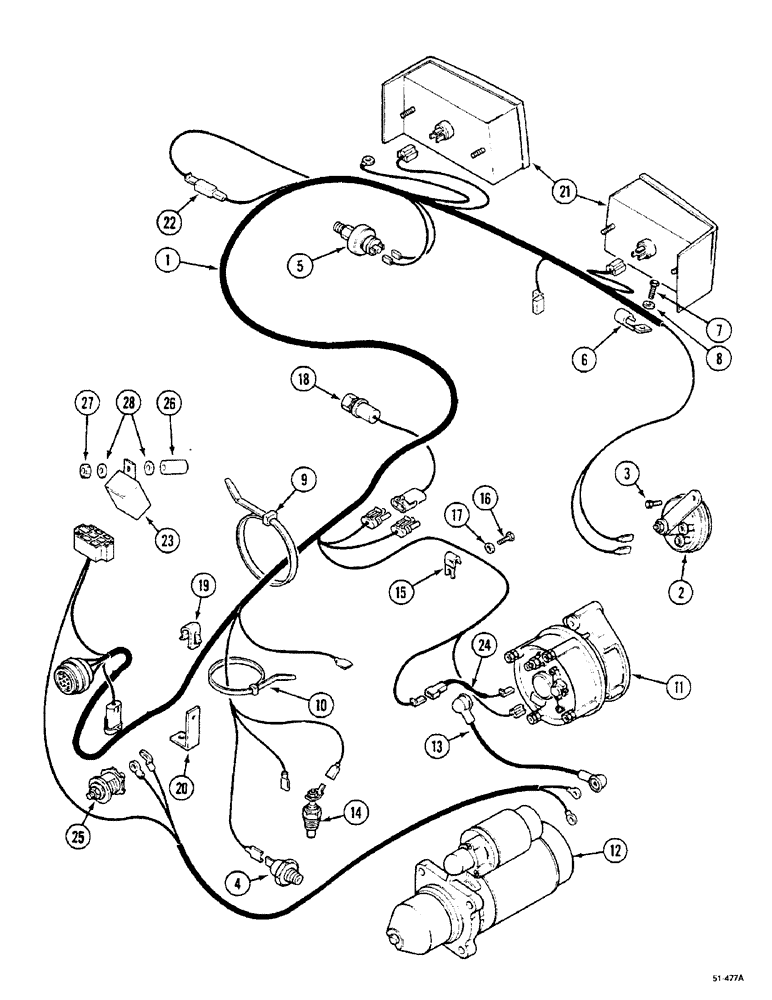

Запчасти Case IH 5150 (4-14) - HARNESS - ENGINE, (JJF1030000 - ) (04) - ELECTRICAL SYSTEMS

1

122488A2

HARNESS

40140, 5120

1шт.

1

122489A2

HARNESS

40140, 5130, 5140, 5150

1шт.

2

3057542R91

HORN

1шт.

3

614-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

1шт.

4

1534526C2

SWITCH, PRESSURE

PRESSURE SWITCH 42011 Oil

1шт.

5

292950A1

SWITCH

1шт.

6

T103869

CLIP

2шт.

7

827-6014

BOLT,Hex, M6 x 14mm, Cl 10.9, Full Thd

M6 x 14; 10.9

2шт.

8

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

2шт.

9

3402979R2

BAND

cable, 350 mm

5шт.

10

3148767R2

COLLAR CLAMP

STRAP cable, 197 mm

4шт.

11

REF

INSTRUCTION

ALTERNATOR, 43010 See Figures: 4-66, 4-68

1шт.

12

REF

INSTRUCTION

STARTER ASSY., 42510 See Figures: 4-60, 4-62

1шт.

13

92288C1

CABLE

40110, 5120

1шт.

13

92289C1

HARNESS

cable, 40110, 5130, 5140, 5150

1шт.

14

A187687

TEMPERATURE SENDER

42012

1шт.

15

3229710R1

CLIP

1шт.

16

614-8012

BOLT,Hex, M8 x 1.25 x 12mm, Cl 8.8, Full Thd

1шт.

17

934268R1

WASHER,M8.4 ID x 16 OD x 1.6 Thk

1шт.

18

232948A1

SWITCH, A/C HIGH PRE

Assy, 41510, See Figure 4-16

1шт.

19

T103869

CLIP

1шт.

20

1964946C1

BRACKET

1шт.

21

REF

INSTRUCTION

LAMP head, 43510 See Figure: 4-70

1шт.

22

548239R2

RECTIFIER

DIODE, 2-31/64

1шт.

23

1987452C1

RELAY

12V, 70 amp

1шт.

24

123624A1

CABLE

41531 Adaptor Tachometer

1шт.

25

A187523

JUNCTION BLOCK

1шт.

26

182766A1

SPACER,7 mm ID, 10 mm OD

TUBE

1шт.

27

832-10406

NUT,M6 x 1, Cl 8

1шт.

28

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

2шт.
