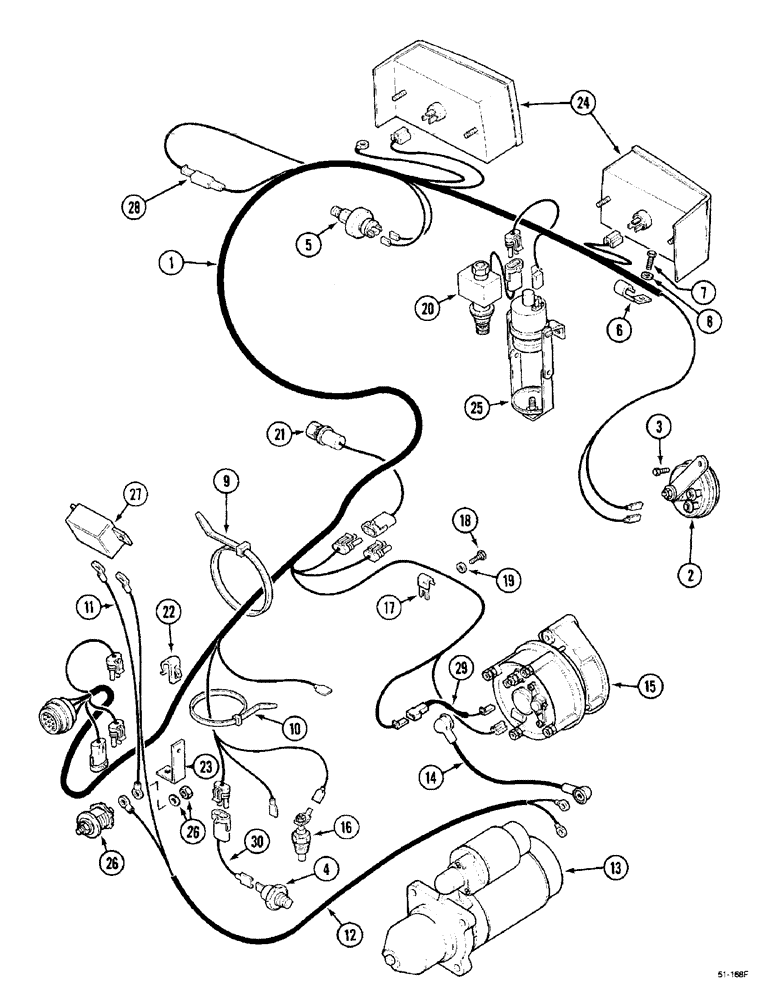

Запчасти Case IH 5150 (4-10) - HARNESS - ENGINE, ( - JJF1029999) (04) - ELECTRICAL SYSTEMS

1

1546490C1

HARNESS

40140, 5120, Serial Range: JJF1024792-1029999

1шт.

1

1546491C1

HARNESS

40140, 5130, 5140, 5150, Serial Range: JJF1024792-1029999

1шт.

1

1533975C1

HARNESS

40140, 5120, Serial Range: JJF1015046-1024791

1шт.

1

1533976C1

HARNESS

40140, 5130, 5140, Serial Range: JJF1015046-1024791

1шт.

1

1964986C3

HARNESS

40140, 5120, Serial Range: -JJF1015045

1шт.

1

1964987C3

HARNESS

40140, 5130, 5140, Serial Range: -JJF1015045

1шт.

2

3057542R91

HORN

1шт.

3

614-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

1шт.

4

1534526C2

SWITCH, PRESSURE

PRESSURE SWITCH 42011 Oil Pressure

1шт.

Ref #4....IF LOOKING FOR A AN ORING FITTING INSTEAD OF 1/8 PIPE THE PART IS 277016A1

1шт.

5

292950A1

SWITCH

42012 Indicator

1шт.

6

T103869

CLIP

2шт.

7

827-6014

BOLT,Hex, M6 x 14mm, Cl 10.9, Full Thd

M6 x 14; 10.9

2шт.

8

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

2шт.

9

3402979R2

BAND

cable, 350 mm

5шт.

10

3148767R2

COLLAR CLAMP

STRAP cable, 197 mm

4шт.

11

1964825C2

CABLE

1шт.

12

1964824C1

HARNESS

1шт.

13

REF

INSTRUCTION

STARTER ASSY., 42510, 5120, See Figure: 4-60

1шт.

13

REF

INSTRUCTION

STARTER ASSY., 42510, 5130, 5140, 5150, See Figure: 4-62

1шт.

14

92288C1

CABLE

40110, 5120

1шт.

14

92289C1

HARNESS

cable, 40110, 5130, 5140, 5150

1шт.

15

REF

INSTRUCTION

ALTERNATOR, 43010 See Figures: 4-66, 68

1шт.

16

A187687

TEMPERATURE SENDER

42012

1шт.

17

3229710R1

CLIP

1шт.

18

614-8012

BOLT,Hex, M8 x 1.25 x 12mm, Cl 8.8, Full Thd

1шт.

19

934268R1

WASHER,M8.4 ID x 16 OD x 1.6 Thk

1шт.

20

1980427C1

SOLENOID

VAVLE, 41520

1шт.

21

234921A1

SENSOR

SWITCH, 41510 Air Conditioning High Pressure, See Figure: 4-16

1шт.

22

T103869

CLIP

1шт.

23

1964946C1

BRACKET

1шт.

24

REF

INSTRUCTION

LAMP head, 43510 See Figure: 4-70

1шт.

25

A143381

SOLENOID

ASSY., 41520 Ether Start

1шт.

26

A187523

JUNCTION BLOCK

1шт.

27

1546541C1

RELAY

12 v, 41531 Starter Motor

1шт.

28

548239R2

RECTIFIER

DIODE, 2-31/64

1шт.

29

1964625C1

CABLE

Adaptor Alternator

1шт.

30

113640A1

CABLE

Adaptor Oil Pressure Swith

1шт.
