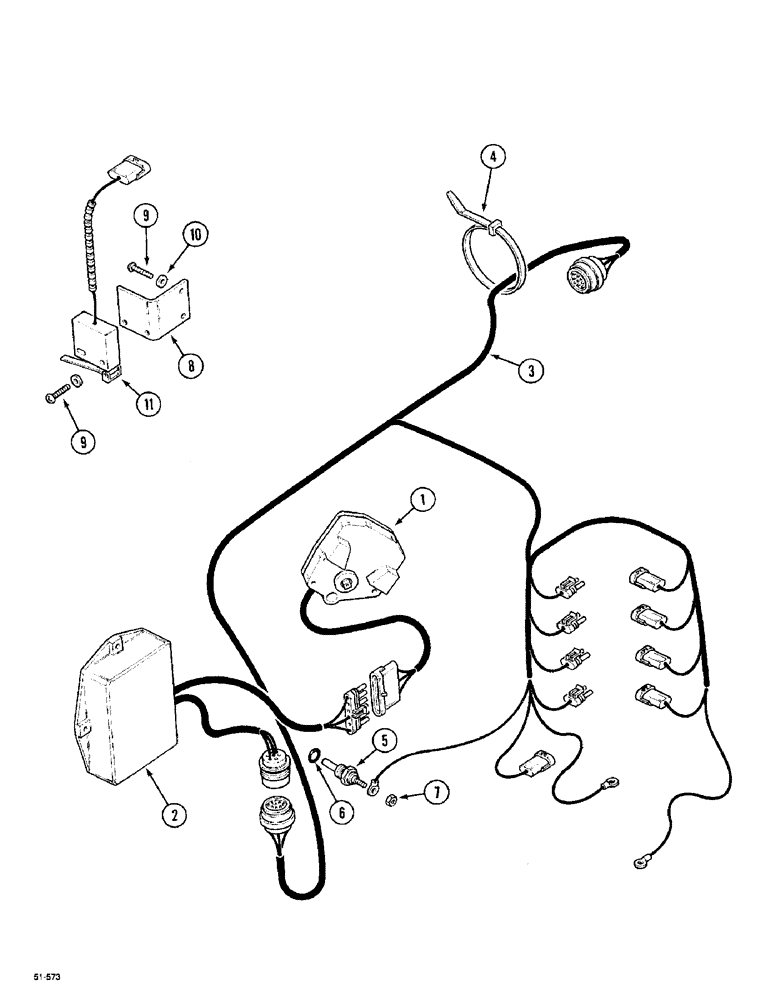

Запчасти Case IH 5150 (4-06) - HARNESS - POWERSHIFT, ( - JJF1029999) (04) - ELECTRICAL SYSTEMS

1

REF

INSTRUCTION

CONTROL ASSY., 47020 See Figure: 6-72

1шт.

2

1987585C1

CONTROL

MODULE, 47020, Serial Range: JJF1015046-1029999

1шт.

2

1964762C3

CONTROL

MODULE, 47020, 5120, 5130, 5140, Serial Range: -JJF1015045

1шт.

3

1987579C1

HARNESS

40120 (JJF1015046 - 1029999), Serial Range: JJF1015046-1029999

1шт.

3

1964791C4

HARNESS

40120, 5120, 5130, 5140, Serial Range: -JJF1015045

1шт.

4

3148767R2

COLLAR CLAMP

STRAP cable, 197 mm

10шт.

5

1964691C1

PROBE

SENDER, 42015 Oil Temperature

1шт.

6

237-6007

O-RING,0.08" Thk x 0.53" ID, -907, Cl 6, 90 Duro

1шт.

7

193-1000

NUT,Keps, w/LW,#10-32

No. 10 NF

1шт.

8

1958603C1

SUPPORT

1шт.

9

840-1312

SCREW,Pan, M3 x 121mm, Cl 4.8

4шт.

10

895-11003

WASHER,3.2mm ID x 7mm OD x 0.5mm Thk

(3.2 x 7 x 0.5 mm)

4шт.

11

92397C1

SWITCH

41510 Inching Pedal

1шт.

REF

INSTRUCTION

PACKAGE service, 41510 Inching Pedal Switch See Figure: 4-28

1шт.
