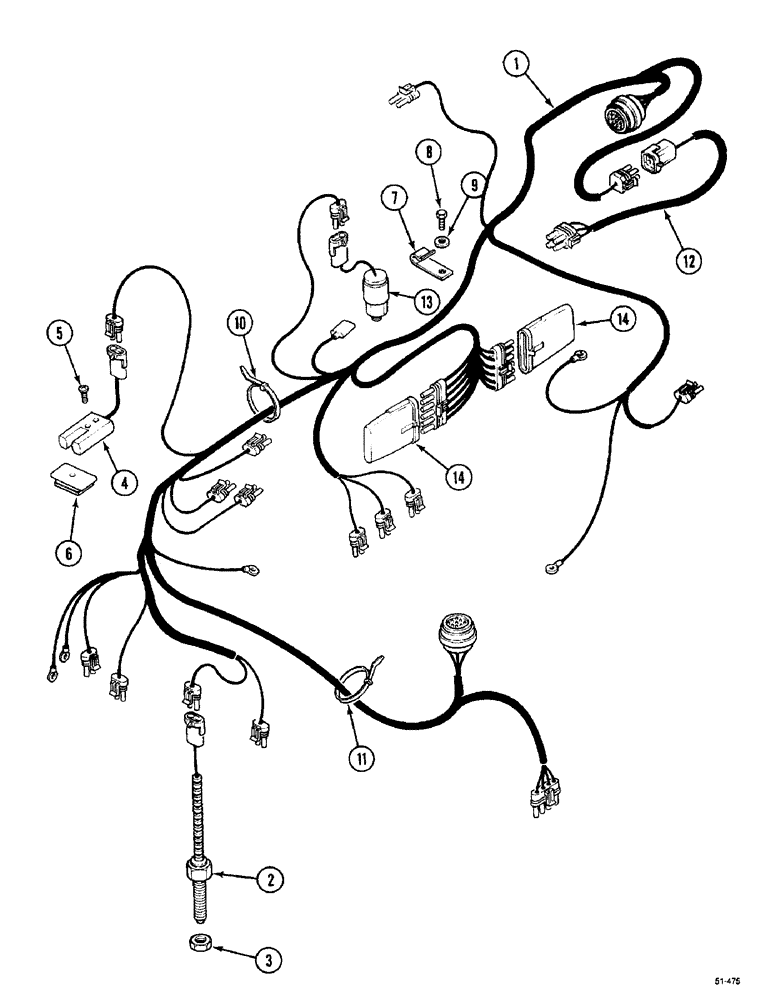

Запчасти Case IH 5150 (4-04) - HARNESS - TRANSMISSION, (JJF1030000 - ) (04) - ELECTRICAL SYSTEMS

1

122492A2

HARNESS

1шт.

2

92338C1

TRANSMITTER

47011 Ground Speed

1шт.

3

525-5110

NUT,M18 x 1.5, Cl 8

M18

1шт.

4

1531481C2

SWITCH

41510 PTO Drive

1шт.

5

1533531C1

SCREW

2шт.

6

1531482C1

GROMMET

1шт.

7

3224359R1

CLAMP

1шт.

8

814-10016

BOLT,Hex, M10 x 1.5 x 16mm, Cl 8.8, Full Thd

M10 x 16

1шт.

9

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

11 x 21 x 2 mm

1шт.

10

3148767R2

COLLAR CLAMP

STRAP cable, 197 mm

22шт.

11

3148767R2

COLLAR CLAMP

STRAP cable, 197 mm

3шт.

12

122497A1

CABLE ASSY.

HARNESS, 40150 Ground Speed

1шт.

13

1533942C1

PRESSURE SWITCH

SWITCH, 41510 Power Steering

1шт.

14

A187813

DIODE

2шт.
