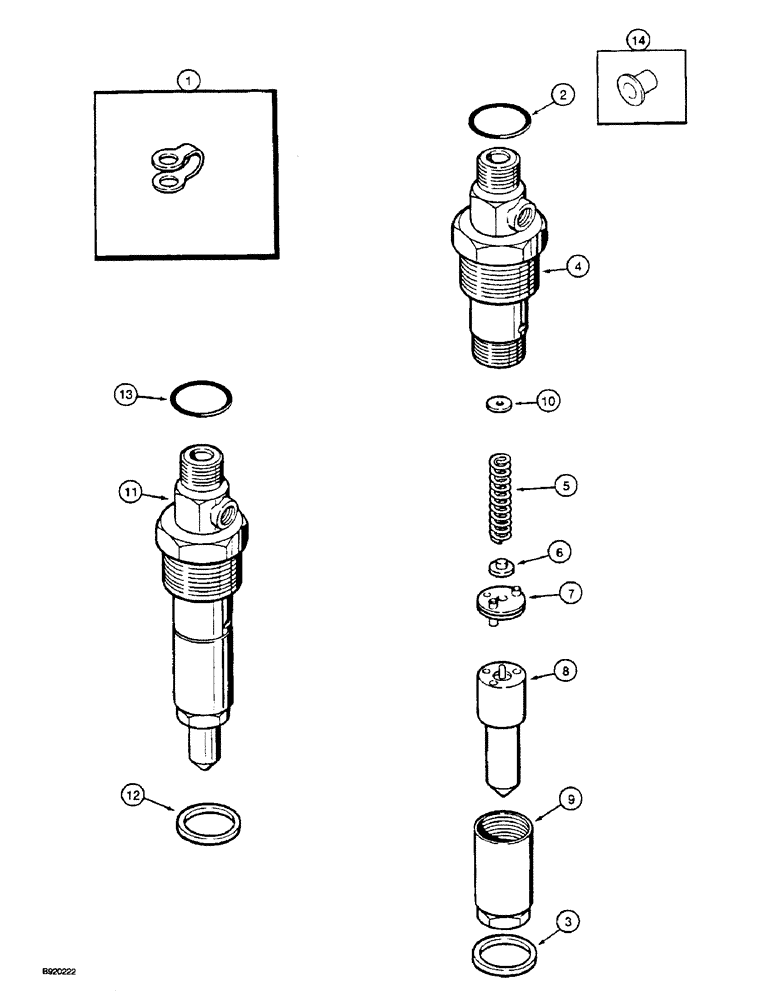

Запчасти Case IH 5150 (3-40) - FUEL INJECTION NOZZLE, (5140/5150) (03) - FUEL SYSTEM

1

J903380

SEAL

1шт.

2

J909356

SEAL,Square, 1.68mm Thk x 15.6mm ID, -16

M7

1шт.

3

J900808

SEAL

M9

1шт.

4

NSS

NOT SOLD SEPARAT

BODY ASSY.

1шт.

5

J905152

SPRING

1шт.

6

J905153

SPINDLE

SEAT

1шт.

7

J905154

PLATE

stop

1шт.

8

NSS

NOT SOLD SEPARAT

TIP, 30335 Order : J909476

1шт.

9

A48201

NUT

1шт.

10

1806233C1

SHIM,1.00mm Thk

Adjusting

1шт.

10

1806234C1

SHIM,1.04mm Thk

Adjusting

1шт.

10

1806235C1

SHIM,1.08mm Thk

Adjusting

1шт.

10

1806236C1

SHIM,1.10mm Thk

Adjusting

1шт.

10

1806237C1

SHIM,1.14mm Thk

Adjusting

1шт.

10

1806238C1

SHIM,1.18mm Thk

Adjusting

1шт.

10

1806239C1

SHIM,1.20mm Thk

Adjusting

1шт.

10

1806240C1

SHIM,1.24mm Thk

Adjusting

1шт.

10

1806241C1

SHIM,1.28mm Thk

Adjusting

1шт.

10

1806242C1

SHIM,1.30mm Thk

Adjusting

1шт.

10

1806243C1

SHIM,1.34mm Thk

Adjusting

1шт.

10

1806244C1

SHIM,1.38mm Thk

Adjusting

1шт.

10

1806245C1

SHIM,1.40mm Thk

Adjusting

1шт.

10

1806246C1

SHIM,1.44mm Thk

Adjusting

1шт.

10

1806247C1

SHIM,1.48mm Thk

Adjusting

1шт.

10

1806248C1

SHIM,1.50mm Thk

Adjusting

1шт.

10

1806249C1

SHIM,1.54mm Thk

Adjusting

1шт.

10

1806250C1

SHIM,1.58mm Thk

Adjusting

1шт.

10

1806251C1

SHIM,1.60mm Thk

Adjusting

1шт.

10

1806252C1

SHIM,1.64mm Thk

Adjusting

1шт.

10

1806253C1

SHIM,1.68mm Thk

Adjusting

1шт.

10

1806254C1

SHIM,1.70mm Thk

Adjusting

1шт.

10

1806255C1

SHIM,1.74mm Thk

Adjusting

1шт.

10

1806256C1

SHIM,1.78mm Thk

Adjusting

1шт.

10

1806257C1

SHIM,1.80mm Thk

Adjusting

1шт.

10

1806258C1

SHIM,1.84mm Thk

Adjusting

1шт.

10

1806259C1

SHIM,1.88mm Thk

Adjusting

1шт.

10

1806260C1

SHIM,1.90mm Thk

Adjusting

1шт.

10

1806261C1

SHIM,1.94mm Thk

Adjusting

1шт.

10

1806262C1

SHIM,1.98mm Thk

Adjusting

1шт.

11

J921913

NOZZLE INJECTION

INJECTOR, 30335, 5150

1шт.

11a

J909476

NOZZLE CAP

INJECTOR, 9 mm, 30335, 5140, Consists Of: 3-12

1шт.

ENGINE NO. : -52107488

1шт.

11b

J919322

INJECTOR ASSY.

7 mm, 30335, 5140, Used With: 10 All Other Parts Not Serviced Separately

1шт.

ENGINE NO. : 52107489-

1шт.

12

J906659

SEAL

M7, 30335 Used With : J921913 & J919322

1шт.

13

J909356

SEAL,Square, 1.68mm Thk x 15.6mm ID, -16

M7

1шт.

14

J919358

ADAPTER

7 mm - 9 mm

1шт.
