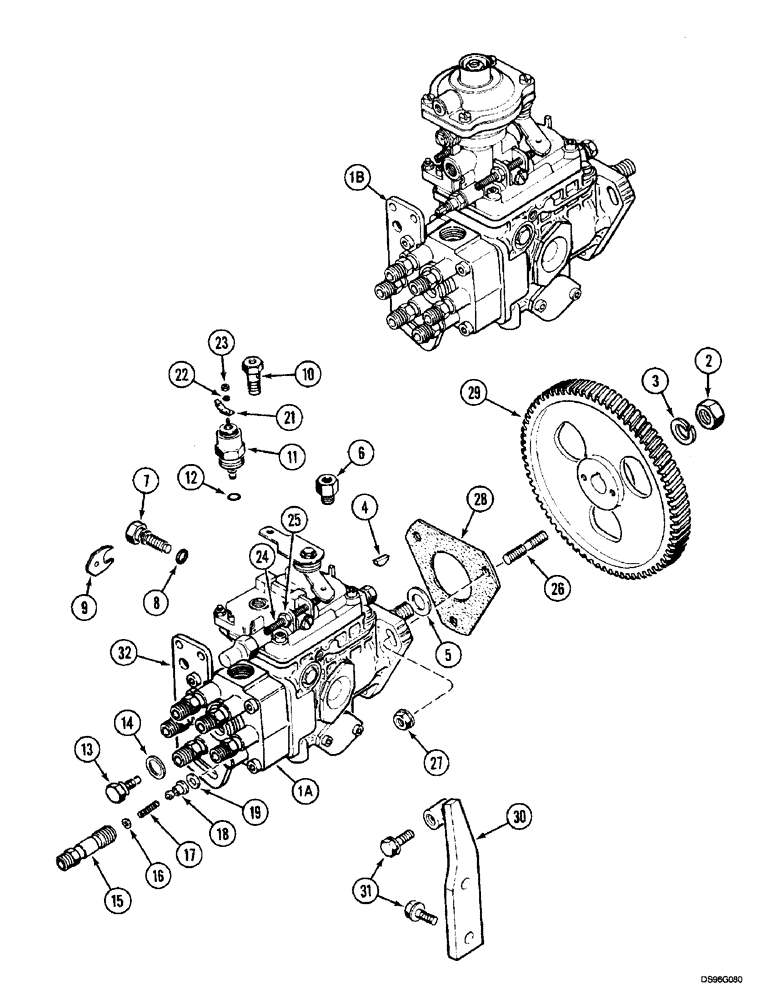

Запчасти Case IH 5150 (3-30) - FUEL INJECTION PUMP, (5140/5150) (03) - FUEL SYSTEM

1a

J918207

PUMP, FUEL INJECTION

PUMP, INJECTION 30331, 5140, Includes: 3-21

1шт.

1b

J924983

PUMP, FUEL INJECTION

PUMP, INJECTION 30331, 5150, Includes: 3-21 With Aneroid

1шт.

2

J903738

NUT

M14

1шт.

3

192-24

LOCK WASHER,9/16"

1шт.

4

126-112

WOODRUFF KEY,#6, 5/32" x 5/8", HT

1шт.

5

J920393

SEAL

1шт.

6

J903382

ADAPTER,M12 x 1.5 x M14 x 1.5

1шт.

7

J904784

SCREW,Hex Skt, M10 x 1 x 35mm

1шт.

8

J904785

O-RING,8 mm ID x 2.5 mm

1шт.

9

J904786

PLATE

locking

1шт.

10

J905465

BANJO BOLT

banjo, 30331 With Check Valve

1шт.

11

A77753

SOLENOID

ASSY., 12 V

1шт.

12

J903577

SEAL

1шт.

13

J903572

BLEED SCREW,M8 x 1 x 23.10mm

1шт.

14

3053133R1

SEALING RING,M8 x 11.5 x 1

1шт.

15

J910794

FITTING

6шт.

16

3059066R1

WASHER,2.5mm ID x 7.3mm OD x 1.5mm Thk

6шт.

17

J910796

SPRING

6шт.

18

J910795

BY-PASS VALVE

6шт.

19

J903570

GASKET,5.4mm ID x 12mm OD x 1mm Thk

6шт.

21

A187990

TERMINAL CONNECTOR,Tin, 0.254 - 1.520mm

1шт.

22

J907481

WASHER

1шт.

23

J907480

NUT

1шт.

24

J904782

SET SCREW,Sl, M6 x 40mm, Half Dog Pt

1шт.

25

J904783

NUT

1шт.

26

J902501

STUD

M8 x 48

3шт.

27

J900589

NUT

M8

3шт.

28

J931607

GASKET

mounting

1шт.

29

J920594

PINION

GEAR

1шт.

30

J905313

LEVER

BRACE

1шт.

31

845-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

3шт.

32

J905697

SUPPORT

1шт.
