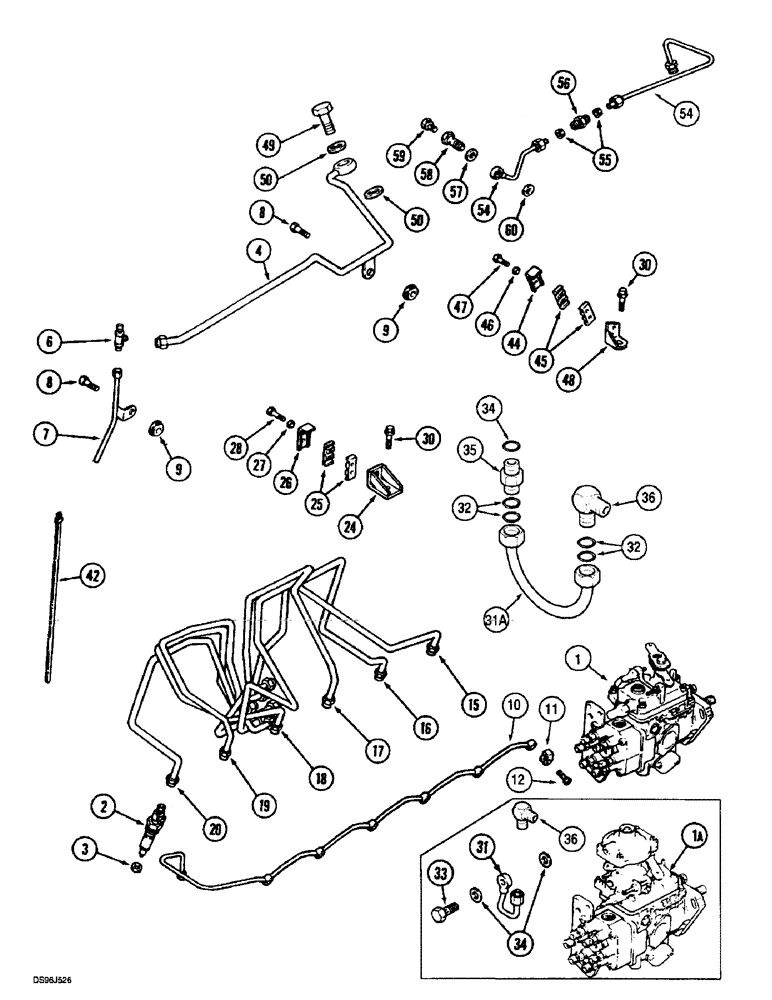

Запчасти Case IH 5150 (3-20) - FUEL LINES, (5140/5150) (03) - FUEL SYSTEM

1

REF

INSTRUCTION

PUMP ASSY., 30331, 5140, See Figure: 3-30

1шт.

1a

REF

INSTRUCTION

PUMP ASSY., 30331, 5150, See Figure: 3-30

1шт.

2

REF

INSTRUCTION

INJECTOR ASSY., 30335 See Figure: 3-40

6шт.

3

J900808

SEAL

M9, 30335, 5140, Engine No. : - 52107488

6шт.

3

J906659

SEAL

M7, 30335 Engine No. : 52107489 -

6шт.

4

J920889

FUEL TUBE

Drain (5140, 5240, 5150, 5250 Tractors)

1шт.

6

222-121

TEE,3/16", Flex Tubing

1шт.

7

J905692

FUEL TUBE

1шт.

8

845-8016

BOLT,Hvy Hex, M8 x 16mm, Cl 8.8

2шт.

9

J900267

SEAL

2шт.

10

J909696

TUBE

ASSY.

1шт.

11

J903380

SEAL

6шт.

12

J905307

BANJO BOLT,M6 x 1 x 14.30mm

6шт.

15

J909438

FUEL TUBE,2 mm ID x 6.4 mm OD x 746 mm L

ASSY., 30333 Cylinder : 1

1шт.

16

J903486

FUEL TUBE,2 mm ID x 6.4 mm OD x 747.5 mm L

ASSY., 30333 Cylinder : 2

1шт.

17

J903487

FUEL TUBE,2 mm ID x 6.4 mm OD x 741.8 mm L

ASSY., 30333 Cylinder : 3

1шт.

18

J903488

FUEL TUBE,2 mm ID x 6.4 mm OD x 747.3 mm L

ASSY., 30333 Cylinder : 4

1шт.

19

J903489

FUEL TUBE,2 mm ID x 6.4 mm OD x 748.1 mm L

ASSY., 30333 Cylinder : 5

1шт.

20

J903490

FUEL TUBE,2 mm ID x 6.4 mm OD x 745.3 mm L

ASSY., 30333 Cylinder : 6

1шт.

A77494

BRACKET

ASSY., 30333 Consists Of : 24 - 28

1шт.

24

J917777

BRACE

1шт.

25

J917747

CLAMP

ISOLATOR

2шт.

26

J904519

SUPPORT

1шт.

27

NSS

NOT SOLD SEPARAT

WASHER

2шт.

28

J920854

CAPTIVE WASHER SCREW,HWH, M5 x 0.8 x 24.5mm, Cl 8.8

2шт.

30

J918109

FLANGE BOLT,Hex, M8 x 1.25 x 25mm

2шт.

31

J926739

TUBE

150 mm (6 in), 30331 Aneroid, 5150, Includes: 32

1шт.

32

NSS

NOT SOLD SEPARAT

SEAL, 30331, 5150

4шт.

33

J903729

BANJO BOLT,M8 x 1 x 17mm

30331, 5150, Engine No.: - 52176737

1шт.

34

J918188

WASHER,7.8mm ID x 13.5mm OD x 1.2mm Thk

30331, 5150, Engine No.: 52176738 -

1шт.

34

J918188

WASHER,7.8mm ID x 13.5mm OD x 1.2mm Thk

30331, 5150, Engine No.: - 52176737

2шт.

35

J931741

FITTING

30331, 5150

1шт.

36

J910265

ELBOW

CONNECTOR, 1/8 PT x 7/16, 30331 #5150(1)

1шт.

42

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP tie, 15 inch, nylon

2шт.

A77529

BRACKET

ASSY., 30333 Consists Of: 44-48

1шт.

44

NSS

NOT SOLD SEPARAT

SPACER ASSY.

1шт.

45

J917747

CLAMP

ISOLATOR

2шт.

46

NSS

NOT SOLD SEPARAT

WASHER

2шт.

47

J920854

CAPTIVE WASHER SCREW,HWH, M5 x 0.8 x 24.5mm, Cl 8.8

1шт.

48

J917778

BRACE

1шт.

49

J905465

BANJO BOLT

banjo

1шт.

50

J918191

PACKING RING

WASHER, 12 x 18 x 1 mm

1шт.

54

J918640

FUEL TUBE

30313 Includes : 55, 56

1шт.

55

222-103

SLEEVE,5/16" Tube

2шт.

56

222-4

FITTING,9/16"-24, Flex Tube

5/16 OD

1шт.

J905860

BANJO BOLT

ASSY., 30313 Consists Of : 58, 59

1шт.

58

NSS

NOT SOLD SEPARAT

SCREW, 30313 Order : J905860

1шт.

59

J905403

CAPTIVE WASHER SCREW,Hex, M6 x 1 x 10mm, Cl 8.8

6x10 mm

1шт.

60

J918191

PACKING RING

WASHER, 12 x 18 x 1 mm

2шт.
