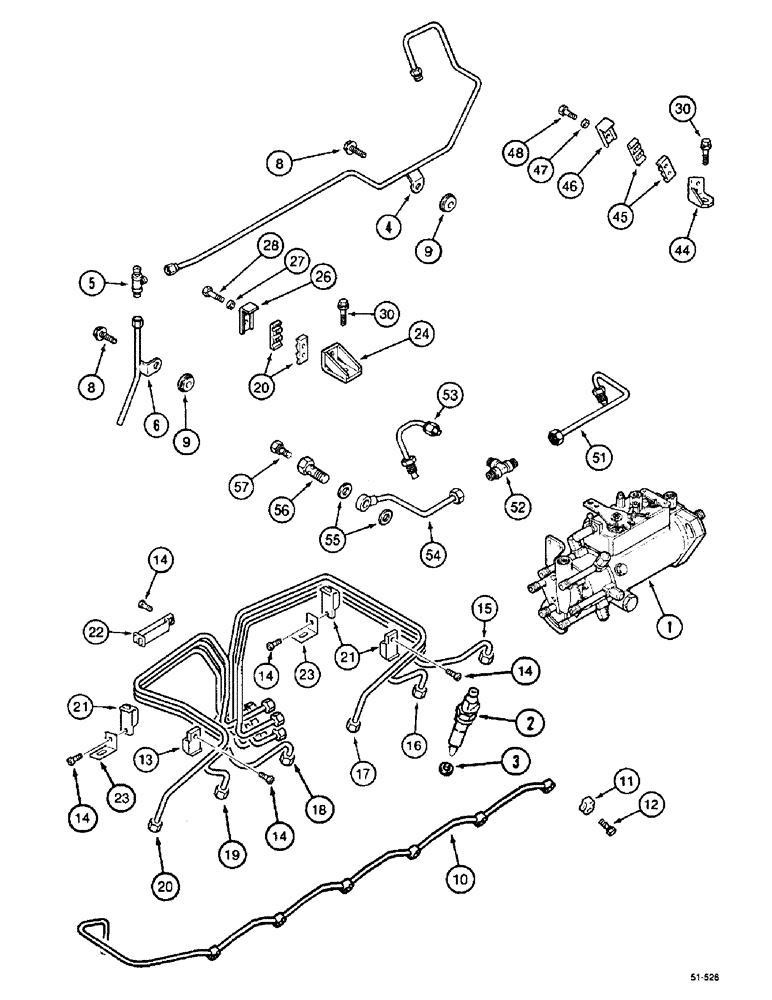

Запчасти Case IH 5150 (3-16) - FUEL LINES, (5130) (03) - FUEL SYSTEM

1

REF

INSTRUCTION

PUMP ASSY., 30331 See Figure: 3-28

1шт.

2

REF

INSTRUCTION

INJECTOR ASSY., 30335 See Figure: 3-36

6шт.

3

J900808

SEAL

M9, 30335 Engine No. : - 52107488

6шт.

3

J906659

SEAL

M7, 30335 Engine No. : 52107489 -

6шт.

4

J920891

FUEL TUBE,4.76 mm OD x 909.3 mm L

1шт.

5

222-121

TEE,3/16", Flex Tubing

1шт.

6

J905692

FUEL TUBE

1шт.

8

845-8016

BOLT,Hvy Hex, M8 x 16mm, Cl 8.8

2шт.

9

J900267

SEAL

2шт.

10

J909696

TUBE

ASSY.

1шт.

11

J903380

SEAL

6шт.

12

J905307

BANJO BOLT,M6 x 1 x 14.30mm

6шт.

J923530

INJECTION PIPE

PACKAGE, 30333 Consists Of: 13-23

1шт.

13

J924525

CLAMP

1шт.

14

845-6012

BOLT,Hvy Hex, M6 x 12mm, Cl 8.8

5шт.

15a

J914796

FUEL TUBE

ASSY. No. 1, Start Serial: JJF1020642

1шт.

15b

J924526

PIPE

ASSY. No. 1, Serial Range: -JJF1020643

1шт.

16a

J914798

FUEL TUBE

ASSY. No. 2, Start Serial: JJF1020642

1шт.

16b

J924527

PIPE

ASSY. No. 2, Serial Range: -JJF1020643

1шт.

17a

J914800

FUEL TUBE

ASSY. No. 3, Start Serial: JJF1020642

1шт.

17b

J924528

PIPE

ASSY. No. 3, Serial Range: -JJF1020643

1шт.

18a

J914802

FUEL TUBE

ASSY. No. 4, Start Serial: JJF1020642

1шт.

18b

J924529

PIPE

ASSY. No. 4, Serial Range: -JJF1020643

1шт.

19a

J914804

FUEL TUBE

ASSY. No. 5, Start Serial: JJF1020642

1шт.

19b

J924530

PIPE

ASSY. No. 5, Serial Range: -JJF1020643

1шт.

20a

J914806

FUEL TUBE

ASSY. No. 6, Start Serial: JJF1020642

1шт.

20b

J924531

PIPE

ASSY. No. 6, Serial Range: -JJF1020643

1шт.

21

J924524

CLAMP

3шт.

22

J924523

CLAMP

1шт.

23

J924522

SUPPORT

1шт.

A77494

BRACKET

ASSY., 30333 Consists Of: 24-28

1шт.

24

J917777

BRACE

1шт.

25

J917747

CLAMP

ISOLATOR

2шт.

26

J904519

SUPPORT

1шт.

27

J903723

WASHER

2шт.

28

J920854

CAPTIVE WASHER SCREW,HWH, M5 x 0.8 x 24.5mm, Cl 8.8

2шт.

30

J918109

FLANGE BOLT,Hex, M8 x 1.25 x 25mm

2шт.

A77529

BRACKET

ASSY., 30313 Consists Of: 44-48

1шт.

44

J917778

BRACE

1шт.

45

J917747

CLAMP

ISOLATOR

2шт.

46

J904519

SUPPORT

1шт.

47

J903723

WASHER

2шт.

48

J920854

CAPTIVE WASHER SCREW,HWH, M5 x 0.8 x 24.5mm, Cl 8.8

1шт.

51

J905363

FUEL TUBE,8 mm OD x 256.8 mm L

1шт.

52

J905353

TEE

1шт.

53

J905375

FUEL TUBE,8 mm OD x 137.6 mm L

1шт.

54

J905364

FUEL TUBE

1шт.

55

J918191

PACKING RING

WASHER 12 x 18 x 1 mm

2шт.

J905860

BANJO BOLT

ASSY., 30313 Consists Of: 56, 57

1шт.

56

NSS

NOT SOLD SEPARAT

SCREW, 30313 Order : J905860

1шт.

57

J905403

CAPTIVE WASHER SCREW,Hex, M6 x 1 x 10mm, Cl 8.8

6 x 10 mm

1шт.
