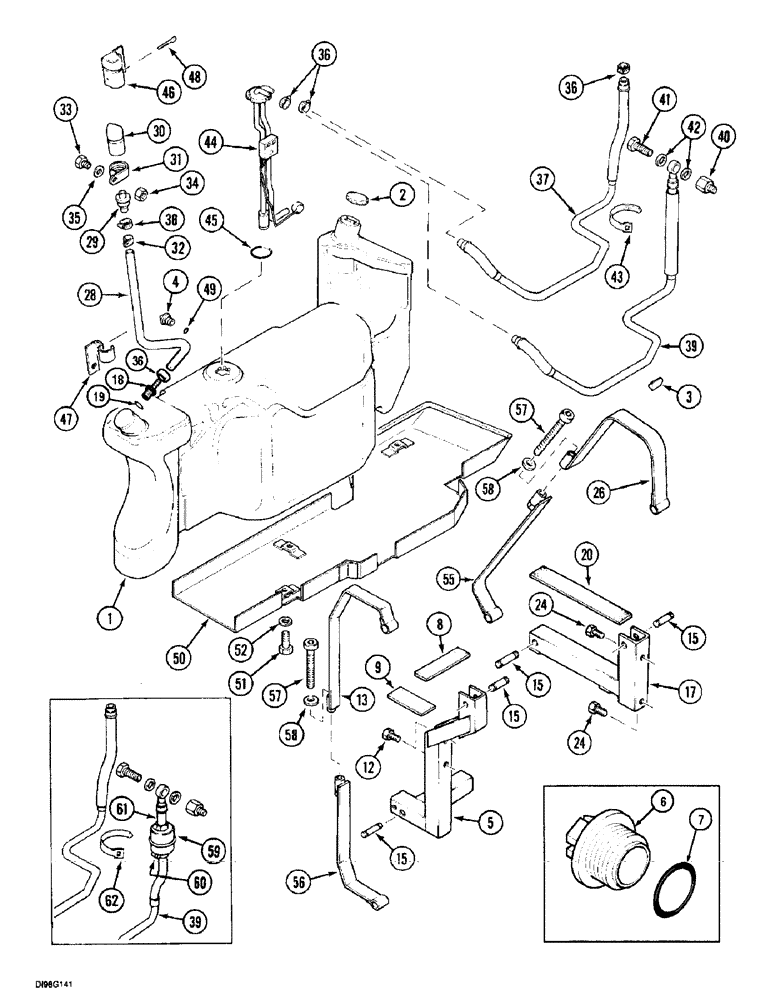

Запчасти Case IH 5150 (3-02) - FUEL TANK MOUNTINGS (03) - FUEL SYSTEM
№
Артикул
Название
Примечание
Количество
1
1533839C2
FUEL TANK
170 ltr
1шт.
1
1533838C2
FUEL TANK
135 ltr
1шт.
1
279602A1
FUEL TANK
220 ltr, 30311, 5130, 5140, 5150, Start Serial: JJF1063000
1шт.
1
238842A1
FUEL TANK
220 ltr, 30311, 5130, 5140, 5150, Serial Range: -JJF1062999
1шт.
2
1531353C2
FILLER CAP
1шт.
2
257778A1
FILLER CAP
30311 Screw Type, 5130, 5140, 5150, Start Serial: JJF1063000
1шт.
3
T104543
WEDGE
4шт.
4
T104544
PLUG
1шт.
5
1533479C1
SUPPORT ASSY.
170 ltr, 30311 For Scandinavia
1шт.
5
1533480C1
SUPPORT ASSY.
135 ltr, 30311 For Scandinavia
1шт.
5
1534442C1
SUPPORT ASSY.
170 ltr
1шт.
5
1534443C1
SUPPORT ASSY.
135 ltr
1шт.
6
280264A1
PLUG, DRAIN
18 mm, 30311, Start Serial: JJF1063000
1шт.
7
280265A1
O-RING
30311, Start Serial: JJF1063000
1шт.
8
1533511C1
FELT STRIP
STRAP
1шт.
9
1533521C1
FELT STRIP
STRAP
1шт.
12
614-16030
BOLT,Hex, M16 x 2 x 30mm, Cl 8.8, Full Thd
2шт.
13
1534754C1
STRAP
1шт.
15
1533503C1
PIN
4шт.
17
1533481C1
SUPPORT ASSY.
170 ltr, 30311 For Scandinavia
1шт.
17
1534444C1
SUPPORT ASSY.
170 ltr
1шт.
17
1533482C1
SUPPORT ASSY.
135 ltr, 30311 For Scandinavia
1шт.
17
1534445C1
SUPPORT ASSY.
135 ltr
1шт.
17
238843A1
SUPPORT ASSY.
220 ltr, 30311, 5130, 5140, 5150 (Maxxum Pro - )
1шт.
18
280266A1
END FITTING
30311 Bleed
1шт.
19
280267A1
SEAL
1шт.
20
1533520C1
FELT STRIP
STRAP
1шт.
20
239089A1
FELT STRIP
STRAP 220 ltr, 30311, 5130, 5140, 5150 (Maxxum Pro - )
1шт.
24
614-16030
BOLT,Hex, M16 x 2 x 30mm, Cl 8.8, Full Thd
30311 Fuel Tank: 170 ltr
2шт.
24
614-16030
BOLT,Hex, M16 x 2 x 30mm, Cl 8.8, Full Thd
30311 Fuel Tank: 135 ltr
1шт.
26
1534517C1
STRAP
1шт.
26
239093A2
STRAP
220 ltr, 30311, 5130, 5140, 5150 (Maxxum Pro - )
1шт.
28
1531425C1
HOSE
1000 mm (39-3/8 in), 30311 With Cab
1шт.
28
T103781
HOSE,730.00 mm
30311 With ROPS
1шт.
29
T103750
BREATHER
regulator
1шт.
30
T103777
TUBE
30311 With ROPS
1шт.
31
T103793
PIPE CLAMP
30311 With ROPS
1шт.
32
T103545
CLAMP
30311 With ROPS
2шт.
33
514-504
BOLT,Hex, M6 x 1 x 16mm, Cl 8.8, Full Thd
M6 x 16, 30311 With ROPS
3шт.
34
15896221
NUT,Hex, M6, 5.20mm High, Cl 10
30311 with ROPS
3шт.
35
895-11006
WASHER,6.6mm ID x 12mm OD x 1.6mm Thk
3шт.
36
3125239R1
COLLAR
5шт.
37
1530820C3
HOSE ASSY.
808 mm (31-7/8 in)
1шт.
39
1530842C4
HOSE ASSY.
852 mm (33-5/8 in)
1шт.
39
130913A3
HOSE ASSY.
852 mm (33-5/8 in), 30313 External Fuel Filter
1шт.
40
T101598
PORT
ADAPTER
1шт.
41
710098R2
BANJO BOLT,M14 x 1.5 x 32mm
1шт.
42
933610R1
SEALING RING,M14 x 18 x 1.8
2шт.
43
3148767R2
COLLAR CLAMP
STRAP cable 197 mm
3шт.
44
1533806C1
FUEL GAUGE
UNIT sending, 135 ltr, 531 mm (21 in) Long, With Filter Screen, 42013, Serial Range: -JJF1050110
1шт.
44
239711A1
SENDER UNIT
UNIT sending, 135 ltr, 526 mm (20-3/4 in) Long, Without Filter Screen, 42013, Start Serial: JJF1050111
1шт.
44
1533805C1
FUEL GAUGE
UNIT sending, 170 ltr, 611 mm (24 in) Long, With Filter Screen, 42013, Serial Range: -JJF1050110
1шт.
44
130915A1
SENDER UNIT
UNIT sending, 170 ltr, 606 mm (23-7/8 in) Long, Without Filter Screen, 42013, External Fuel Filter, Start Serial: JJF1050111
1шт.
44
253621A1
FUEL GAUGE
UNIT sending, 220 ltr, 42013, 5130, 5140, 5150
1шт.
45
3229809R1
O-RING
1шт.
46
1531445C1
CASE
HOUSING, 30311 With Cab
1шт.
47
1531498C1
CLAMP
30311 With Cab
1шт.
48
905952R1
COTTER PIN,M3.2 x 50
PIN, 30311 With Cab
1шт.
49
1531953C1
RUBBER WASHER
WASHER
1шт.
50
1533506C1
PROTECTOR
SHIELD, 135/170 ltr, 90135 For Scandinavia
1шт.
51
614-10016
BOLT,Hex, M10 x 1.5 x 16mm, Cl 8.8, Full Thd
3шт.
51
614-10040
BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8, Full Thd
1шт.
55
1534518C1
STRAP
170 ltr
1шт.
55
1534520C1
STRAP
135 ltr
1шт.
56
1534516C1
STRAP
170/220 ltr
1шт.
56
1534521C1
STRAP
135 ltr
1шт.
57
1534527C1
HEX SOC SCREW,M8 x 100mm, Cl 8.8
2шт.
58
895-11008
WASHER,9mm ID x 16mm OD x 1.6mm Thk
2шт.
59
L1950594
FILTER, FUEL
1шт.
60
3125239R1
COLLAR
2шт.
61
130914A2
FUEL HOSE
75 mm (3 in)
1шт.
62
3141429R2
MOUNTING CLIP
STRAP cable 92 mm
1шт.
Выбрано товаров: 73
