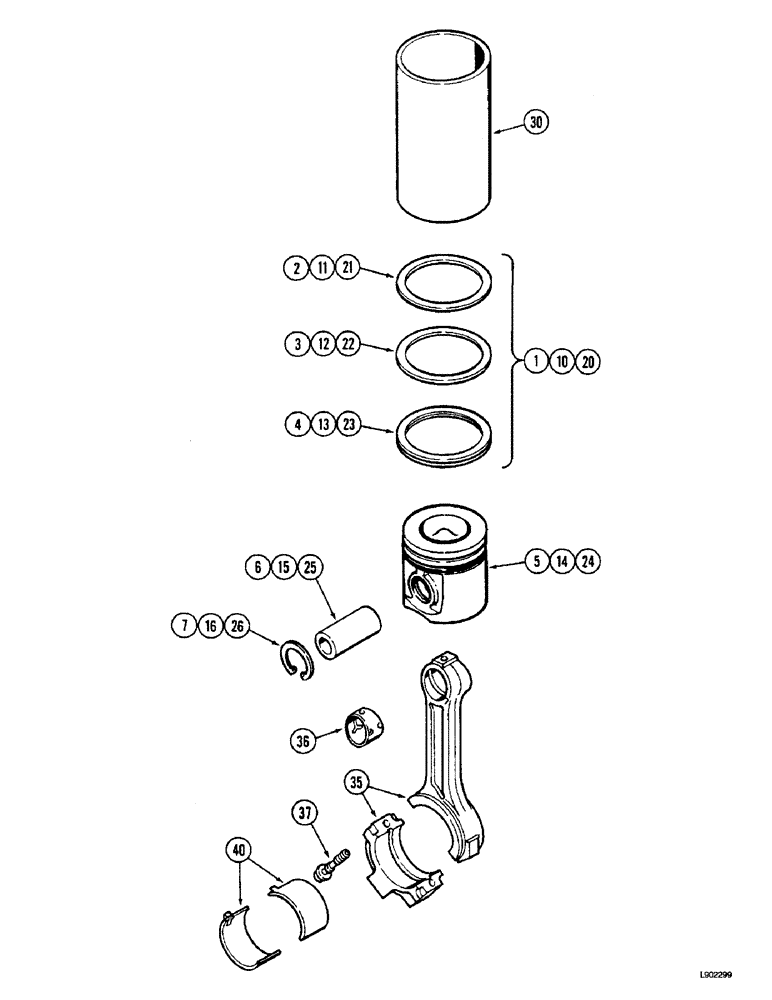

Запчасти Case IH 5150 (2-118) - PISTONS, (5120/5140/5150), 5120 ENGINE S/N 52110450 & AFTER (02) - ENGINE

A77730

PISTON,104MM PISTON DIAMETER

PACKAGE service, 20351, 5140, 5150 Standard, Consists Of: 1-7

6шт.

A77733

PISTON

PACKAGE service, 20351, 5120 Standard, Consists Of: 1-7

4шт.

1

A77727

PISTON RING SET

20351 Standard 5120, Consists Of: 2-4

4шт.

1

A77727

PISTON RING SET

20351 Standard 5140, 5150, Consist Of: 2-4

6шт.

2

NSS

NOT SOLD SEPARAT

RING, 20351 Top

1шт.

3

NSS

NOT SOLD SEPARAT

RING, 20351 Middle

1шт.

4

NSS

NOT SOLD SEPARAT

RING, 20351 Bottom

1шт.

5

NSS

NOT SOLD SEPARAT

PISTON, 20351 Standard

1шт.

6

J901793

PISTON PIN

1шт.

7

J901706

RING

2шт.

A77731

PISTON & RINGS KIT

PACKAGE service, 20351, 5140, 5150, Oversize: 0.5 mm

6шт.

A77734

PISTON

PACKAGE service, 20351, 5120, Oversize: 0.5 mm Consists Of: 10-16

4шт.

10

A77728

PISTON RING SET

20351 Oversize: 0.5 mm 5120, Consists Of: 11-13

4шт.

10

A77728

PISTON RING SET

20351 Oversize: 0.5 mm 5140, 5150, Consist Of: 11-13

6шт.

11

NSS

NOT SOLD SEPARAT

RING, 20351 Top

1шт.

12

NSS

NOT SOLD SEPARAT

RING, 20351 Middle

1шт.

13

NSS

NOT SOLD SEPARAT

RING, 20351 Bottom

1шт.

14

NSS

NOT SOLD SEPARAT

PISTON, 20351 Oversize : 0.5 mm

1шт.

15

J901793

PISTON PIN

1шт.

16

J901706

RING

2шт.

A77732

PISTON

PACKAGE service, 20351, 5140, 5150, Oversize: 1.0 mm, Consists Of: 20-26

6шт.

A77735

PISTON

PACKAGE service, 20351, 5120, Oversize: 1.0 mm, Consists Of: 20-26

4шт.

20

A77729

PISTON RING SET

20351 Oversize: 1.0 mm 5120, Consists Of: 21-23

4шт.

20

A77729

PISTON RING SET

20351 Oversize: 1.0 mm 5140, 5150, Consist Of: 21-23

6шт.

21

NSS

NOT SOLD SEPARAT

RING, 20351 Top

1шт.

22

NSS

NOT SOLD SEPARAT

RING, 20351 Middle

1шт.

23

NSS

NOT SOLD SEPARAT

RING, 20351 Bottom

1шт.

24

NSS

NOT SOLD SEPARAT

PISTON, 20351 Oversize: 1.0 mm

1шт.

25

J901793

PISTON PIN

1шт.

26

J901706

RING

2шт.

30

J904166

SLEEVE

20351 If So Equipped

1шт.

J925232

ROD, CONNECTING

ASSY., 20355, 5120, Includes: 35, 36, 37

4шт.

J925232

ROD, CONNECTING

ASSY., 20355, 5140, 5150, Includes: 35, 36, 37

6шт.

35

NSS

NOT SOLD SEPARAT

ROD ASSY.

1шт.

36

J901085

BUSHING

1шт.

37

J900919

BOLT,Flng, MJ11 x 1.25 x 59mm, Cl 12.9

M11 x 59

2шт.

40

A77465

BEARING SET

KIT, 20355, 5120, Upper And Lower

4шт.

40

A77465

BEARING SET

KIT, 20355, 5140, 5150, Upper And Lower

6шт.

40

A77466

BEARING SET

KIT, 20355, 5120, Upper And Lower Undersize: 0.25 mm

4шт.

40

A77466

BEARING SET

KIT, 20355, 5140, 5150, Upper And Lower Undersize: 0.25 mm

6шт.

40

A77467

BEARING LINER

KIT, 20355, 5120, Upper And Lower Undersize: 0.5 mm

4шт.

40

A77467

BEARING LINER

KIT, 20355, 5140, 5150, Upper And Lower Undersize: 0.5 mm

6шт.

40

A77468

BEARING SET

KIT, 20355, 5120, Upper And Lower Undersize: 0.75 mm

4шт.

40

A77468

BEARING SET

KIT, 20355, 5140, 5150, Upper And Lower Undersize: 0.75 mm

6шт.

40

A77469

BEARING SET

KIT, 20355, 5120, Upper and Lower Undersize: 1.0 mm

4шт.

40

A77469

BEARING SET

KIT, 20355, 5140, 5150, Upper And Lower Undersize: 1.0 mm

6шт.
