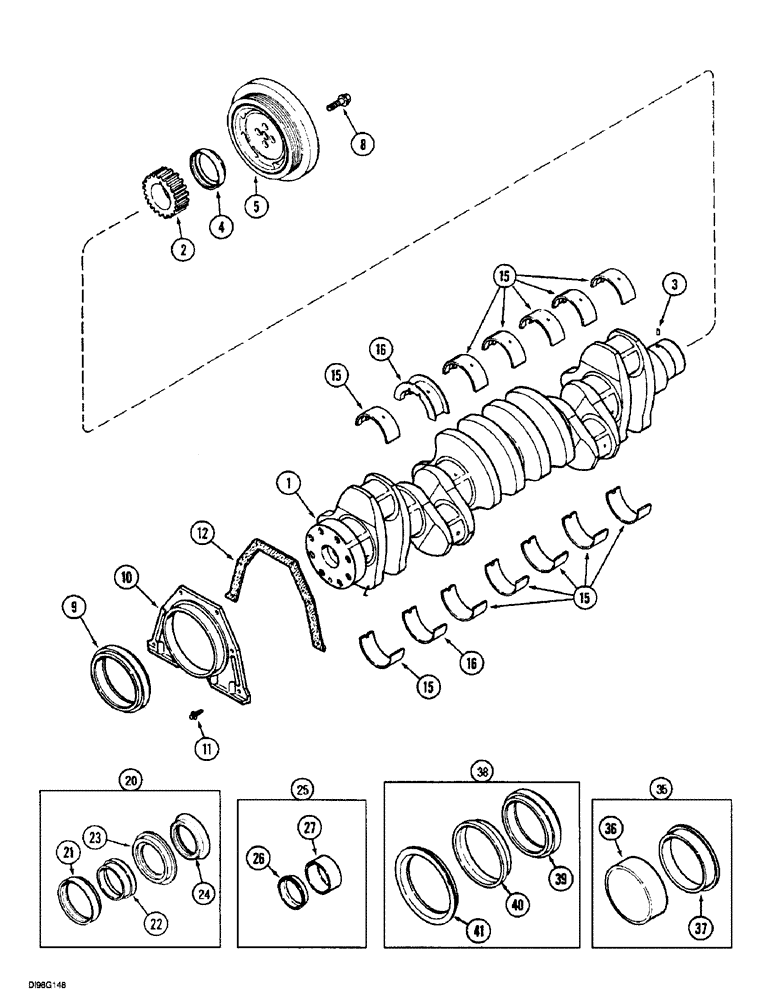

Запчасти Case IH 5150 (2-104) - CRANKSHAFT, (5130/5140/5150) (02) - ENGINE

1

J908032

CRANKSHAFT

ASSY., 20367 Includes: 2, 3, 4

1шт.

JR908032

REMAN-CRANKSHAFT

ASSY., 20367 Remanufactured

1шт.

2

J929027

PINION

GEAR

1шт.

3

J904483

PIN,6.01mm OD x 8mm L

1шт.

4

NSS

NOT SOLD SEPARAT

SEAL, 20361 Order : A77890

1шт.

5

J914454

DAMPER

PULLEY

1шт.

8

J903857

BOLT,Hex, M12 x 1.25 x 36mm

M12 x 36

4шт.

9

NSS

NOT SOLD SEPARAT

SEAL, 20361 Order : 38

1шт.

10

J913447

SEAL RETAINER

1шт.

11

845-6015

BOLT,Hvy Hex, M6 x 15mm, Cl 8.8

6шт.

12

J928493

GASKET

1шт.

15

A77405

CRANKSHAFT BEARING

20367 Upper And Lower Standard

6шт.

15

A77472

BEARING SET

20367 Upper And Lower Undersize : 0.25 mm

6шт.

15

A77474

BEARING SET

20367 Upper And Lower Undersize : 0.5 mm

6шт.

15

A77476

BEARING SET

20367 Upper And Lower Undersize : 0.75 mm

6шт.

15

A77478

BEARING SET

20367 Upper And Lower Undersize : 1.0 mm

6шт.

16

A77406

CRANKSHAFT BEARING

thrust, 20367 Upper And Lower Standard

1шт.

16

A77473

THRUST BEARING

20367 Upper And Lower Undersize : 0.25 mm

1шт.

16

A77475

THRUST BEARING

20367 Upper And Lower Undersize : 0.5 mm

1шт.

16

A77477

THRUST BEARING

20367 Upper And Lower Undersize : 0.75 mm

1шт.

16

A77479

THRUST BEARING

20367 Upper And Lower Undersize : 1.0 mm

1шт.

20

A77890

SEAL PACKAGE

20367 Crankshaft Front Consists Of: 21-24

1шт.

21

NSS

NOT SOLD SEPARAT

SEAL

1шт.

22

NSS

NOT SOLD SEPARAT

TOOL

1шт.

23

NSS

NOT SOLD SEPARAT

TOOL

1шт.

24

NSS

NOT SOLD SEPARAT

SHIELD

1шт.

25

A77809

GASKET KIT

repair, 20367 Oil-Seal Dry Front Consists Of: 26, 27

1шт.

26

NSS

NOT SOLD SEPARAT

SLEEVE

1шт.

27

NSS

NOT SOLD SEPARAT

SEAL

1шт.

35

A77810

SERVICE KIT

repair, 20367 Oil-Seal Dry Rear Consists Of: 36, 37

1шт.

35

J929106

SEAL

KIT repair, 20367 Oil-Seal Wet Rear Consists Of: 36, 37

1шт.

36

NSS

NOT SOLD SEPARAT

1шт.

37

NSS

NOT SOLD SEPARAT

1шт.

38

J909411

SEAL

KIT, 20367 Crankshaft Standard Rear Consists Of: 39, 40, 41

1шт.

39

NSS

NOT SOLD SEPARAT

SEAL

1шт.

40

NSS

NOT SOLD SEPARAT

TOOL

1шт.

41

NSS

NOT SOLD SEPARAT

TOOL

1шт.
