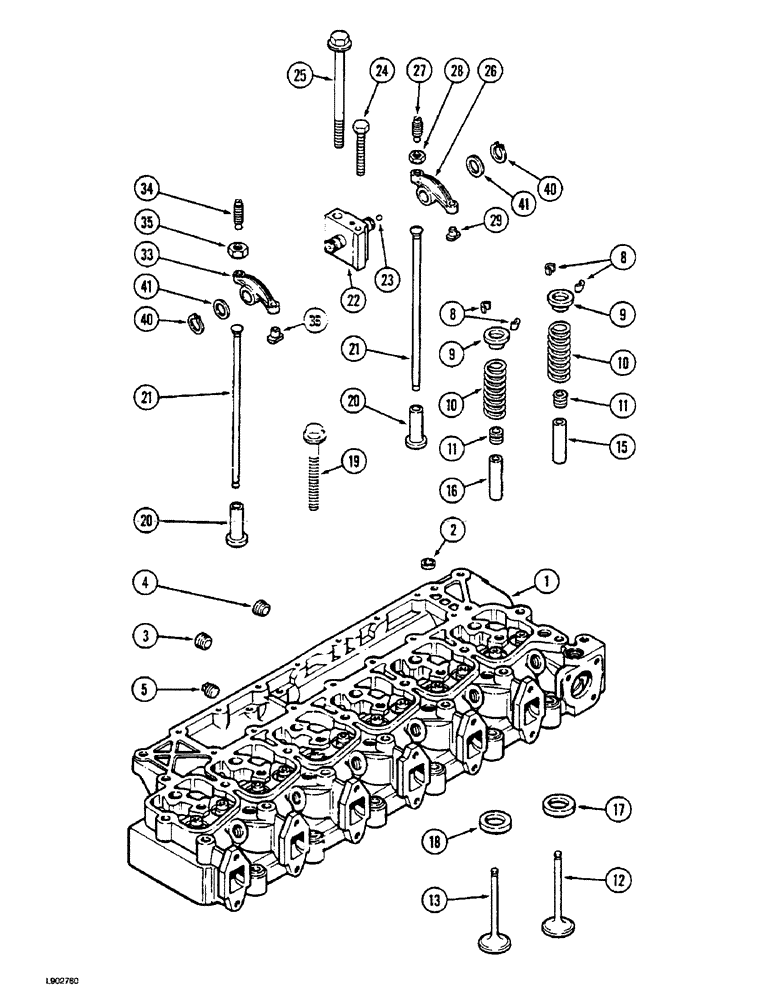

Запчасти Case IH 5150 (2-074) - VALVE MECHANISM, (5130/5140/5150) (02) - ENGINE

a

J910276

HEAD (CYLINDER)

20345 With Valves Consists Of: 1-13

1шт.

ENGINE NO. : -52107488

1шт.

b

J929735

HEAD (CYLINDER)

20345 With Valves Consists Of: 1-13

1шт.

ENGINE NO. : 52107489-

1шт.

1a

J913391

HEAD (CYLINDER)

20345 Without Valves Includes: 2

1шт.

ENGINE NO. : -52107488

1шт.

1b

J917287

HEAD (CYLINDER)

20345 Without Valves Includes: 2, 3

1шт.

ENGINE NO. : 52107489-

1шт.

2

A77783

PLUG

21 mm OD

5шт.

3

A77429

PLUG

1/2 PT

5шт.

4

J906619

PLUG,1/8" - 27

1/8 PT

2шт.

5

A77505

PLUG

3/4 PT

1шт.

8

J900250

SCREW

INSERT

24шт.

9

J900299

RETAINER

12шт.

10

J900276

VALVE SPRING

12шт.

11

J901097

SEAL

12шт.

12

J920867

VALVE

intake, 20347 Intake

6шт.

13

J920868

VALVE

exhaust, 20347 Exhaust

6шт.

15

J904408

GUIDE

11 mm OD, 20347 Intake

6шт.

16

J904409

GUIDE

11 mm OD, 20347 Exhaust

6шт.

16

J906206

GUIDE

14 mm OD

12шт.

17

J906854

SEAT, VALVE

20347 Intake

6шт.

18

J904105

SEAT, VALVE

20347 Exhaust

6шт.

19

J920779

BOLT,Flng, M12 x 1.75 x 70mm, Cl 12.9

70 mm

6шт.

19

J920780

BOLT,Flng, M12 x 1.75 x 120mm, Cl 12.9

120 mm

14шт.

20

J931623

TAPPET

12шт.

21

J904679

PUSH ROD

12шт.

22

J910814

SUPPORT

20343 With Shaft Includes : 23

6шт.

23

J907555

PLUG

1/4-18 PT

1шт.

24

814-8075

BOLT,Hex, M8 x 1.25 x 75mm, Cl 8.8

6шт.

25

J920781

BOLT,Flng, M12 x 1.75 x 180mm, Cl 12.9

180 mm

6шт.

26

J910811

ROCKER

ARM ASSY., 20343 Intake Includes : 27, 28, 29

6шт.

27

J937438

ADJUSTMENT SCREW,Hex Skt, 3/8" - 24 x 33mm, Adj, Ball Point

3/8 x 40 mm

1шт.

28

425-116

NUT,3/8" - 24, Gr 5

1шт.

29

NSS

NOT SOLD SEPARAT

INSERT

1шт.

33

J910810

ROCKER

ARM ASSY., 20343 Exhaust Includes : 34, 35, 36

6шт.

34

J937438

ADJUSTMENT SCREW,Hex Skt, 3/8" - 24 x 33mm, Adj, Ball Point

3/8 x 40 mm

1шт.

35

425-116

NUT,3/8" - 24, Gr 5

1шт.

36

NSS

NOT SOLD SEPARAT

INSERT

1шт.

40

J900242

SNAP RING

12шт.

41

J900245

WASHER

12шт.
