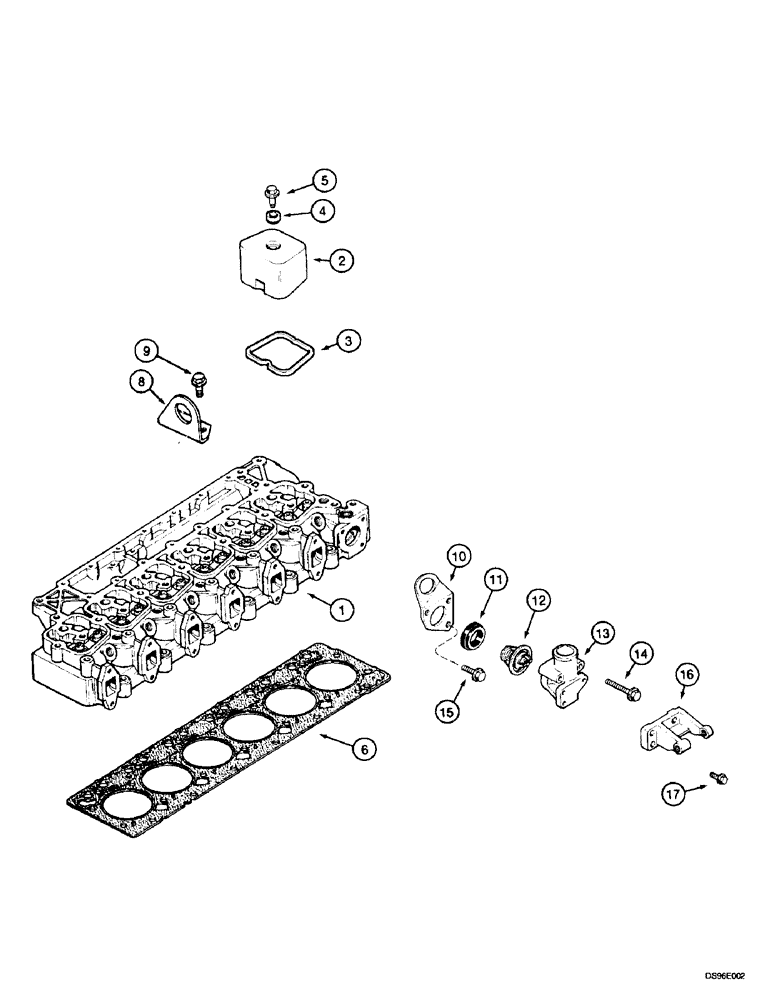

Запчасти Case IH 5150 (2-068) - CYLINDER HEAD AND GASKETS, (5130/5140/5150) (02) - ENGINE

1

REF

INSTRUCTION

HEAD cylinder, 20345 See Figure: 2-74

1шт.

2

J928404

COVER

6шт.

3

J929795

GASKET

6шт.

4

J928406

ISOLATOR

20345 Engine No. : 52169254 -

6шт.

4

J910824

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

20345 Engine No. : - 52169253

6шт.

5

J907049

BOLT,Hex

M8 x 21

6шт.

6

J283335

GASKET,2.32mm Thk

HEAD cylinder, 20345 Standard

1шт.

6

J283337

GASKET,2.24mm Thk

HEAD cylinder, 20345 Oversize : 0.25 mm

1шт.

6

J283339

GASKET

HEAD cylinder, 20345 Oversize : 0.50 mm

1шт.

8

J917599

SUPPORT

20319 Rear

1шт.

9

854-12025

BOLT,Hvy Hex, M12 x 25mm, Cl 10.9

2шт.

10

J903757

BRACKET

20319 Front

1шт.

A77736

THERMOSTAT

20319 Thermostat Includes: 13, 14

1шт.

11

J923331

GASKET

1шт.

12

NSS

NOT SOLD SEPARAT

THERMOSTAT

1шт.

13

J914409

HOUSING

20319 Thermostat

1шт.

14

J926972

FLANGE BOLT,Hex, M8 x 1.25 x 70mm, Cl 10.9

8 x 70 mm

2шт.

15

845-8035

BOLT,Hvy Hex, M8 x 35mm, Cl 8.8

1шт.

16

J923387

SUPPORT

43010 Alternator

1шт.

17

613-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

M8 x 25

3шт.
