Запчасти Case IH 5150 (2-064) - OIL PUMP AND OIL PAN (02) - ENGINE

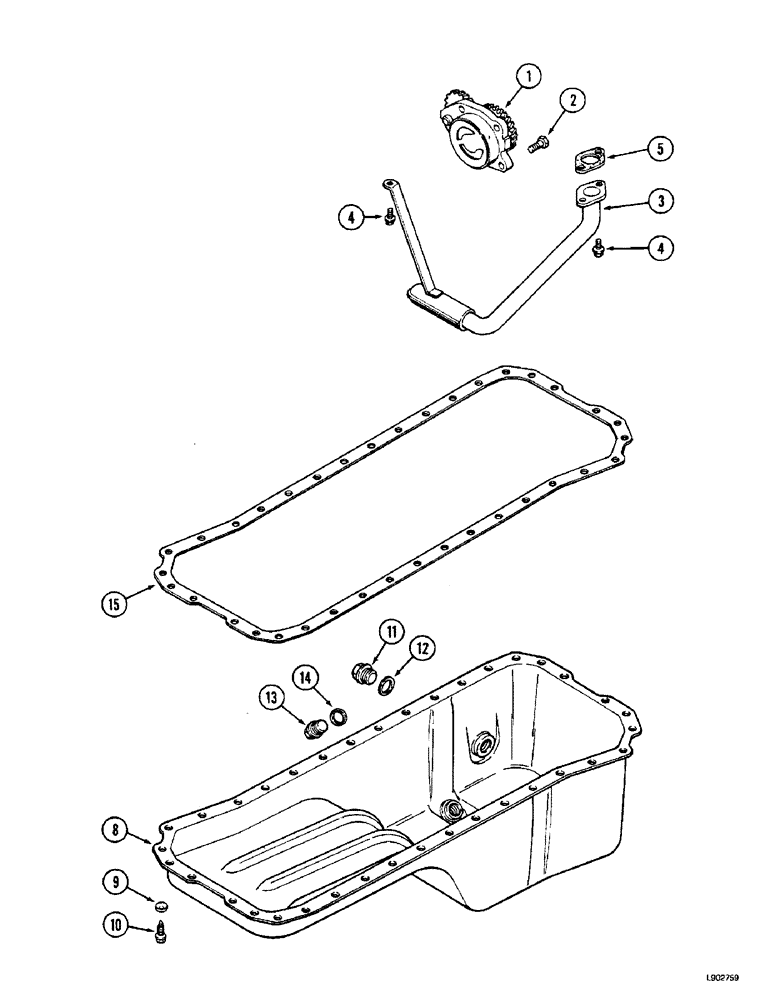

Схема запчастей Case IH 5150 - (2-064) - OIL PUMP AND OIL PAN (02) - ENGINE
12
5
11
3
10
2
4
15
4
8
13
1
14
9

Артикул

Название

Примечание

Количество

1

J926202

PUMP, ENGINE OIL

20343, 5120

1шт.

1

J926203

PUMP, ENGINE OIL

20343, 5130, 5140, 5150

1шт.

2

614-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

4шт.

3

J916790

TUBE,287, 198.5 mm L

20343, 5120

1шт.

3

J909373

TUBE

20343, 5130, 5140, 5150

1шт.

4

845-8016

BOLT,Hvy Hex, M8 x 16mm, Cl 8.8

3шт.

5

J914383

GASKET

1шт.

8

J907570

PAN

oil, 20371, 5120

1шт.

8

J915703

PAN, ENGINE OIL

PAN, OIL 20371, 5130, 5140, 5150

1шт.

9

J907537

SPRING WASHER

28шт.

10

J920400

FLANGE BOLT,Hex, M8 x 1.25 x 21mm, Gr 8.8

M8 x 25

28шт.

11

J904386

PLUG

1шт.

12

J902425

SEALING WASHER,22.2mm ID x 26.9mm OD x 1.75mm Thk

1шт.

13

J911638

PLUG,M18 x 1.5

20371 Magnetic

1шт.

13

1534736C1

FITTING

elbow, 20371 Downswept Exhaust

1шт.

14

J920773

SEALING WASHER

1шт.

14

906009R1

THIN NUT,Thin, M18 x 1.5, Cl 04

M18, 20371 Downswept Exhaust

1шт.

15

NSS

NOT SOLD SEPARAT

SEAL, 20371, 5120, Order: A77673

1шт.

15

NSS

NOT SOLD SEPARAT

SEAL, 20371, 5130, 5140, 5150, Order: A77676

1шт.

A77673

GASKET KIT

20371, 5120, Includes: 5, 14, 15

1шт.

A77676

GASKET KIT

20371, 5130, 5140, 5150, Includes: 5, 14, 15

1шт.
