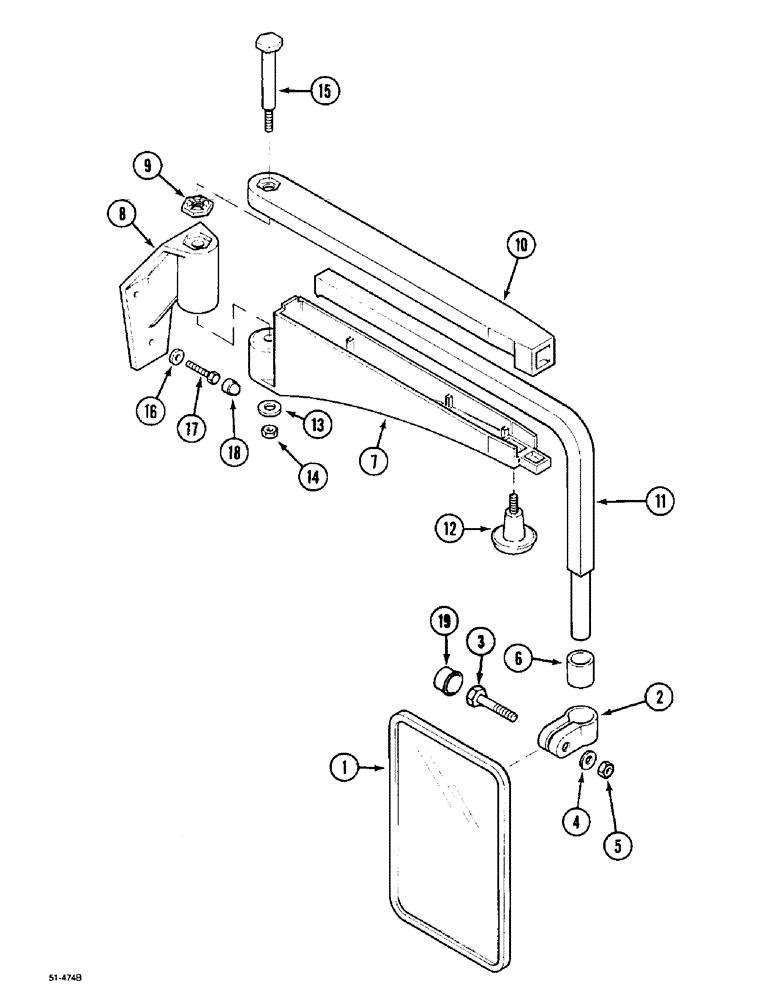

Запчасти Case IH 5150 (9H-14) - EXTENDABLE MIRRORS (09) - CHASSIS/ATTACHMENTS

131927A2

PACKAGE

90138, Includes: 1-19

1шт.

b

185773A1

MIRROR

90138, Plastic, Includes: 1, 2, 3B, 4B, 6, 19, Serial Range: -JJF1045163

2шт.

a

NSS

NOT SOLD SEPARAT

MIRROR ASSY., 90138, Includes: 1, 2, 3A, 4A, 5A, 6, Start Serial: JJF1045162

2шт.

1

185774A1

MIRROR

2шт.

2

132219A1

CLAMP

1шт.

3b

614-8050

BOLT,Hex, M8 x 1.25 x 50mm, Cl 8.8, Full Thd

, Serial Range: -JJF1045163

1шт.

3a

Q5301

SCREW

6 x 35 mm, Start Serial: JJF1045162

1шт.

4b

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

, Serial Range: -JJF1045163

1шт.

4a

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

, Start Serial: JJF1045162

1шт.

5a

934305R1

THIN NUT,M6 x 1, Thin

6 mm, Start Serial: JJF1045162

1шт.

6

132220A1

BUSHING

1шт.

1530998C2

SUPPORT

ARM, 813 mm, 90138, Consists Of: 7-15

2шт.

7

NSS

NOT SOLD SEPARAT

SUPPORT

1шт.

8

136294A1

SUPPORT

1шт.

9

NSS

NOT SOLD SEPARAT

DETENT

1шт.

10

258477A1

ARM

1шт.

11

136299A1

TUBE

1шт.

12

136300A1

HANDLE GRIP

HANDLE

1шт.

13

NSS

NOT SOLD SEPARAT

WASHER

1шт.

14

NSS

NOT SOLD SEPARAT

NUT

1шт.

15

NSS

NOT SOLD SEPARAT

SCREW

1шт.

16

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

6шт.

17

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

6шт.

18

182433A1

CAP

8 mm

6шт.

19

185775A1

CAP

1шт.
