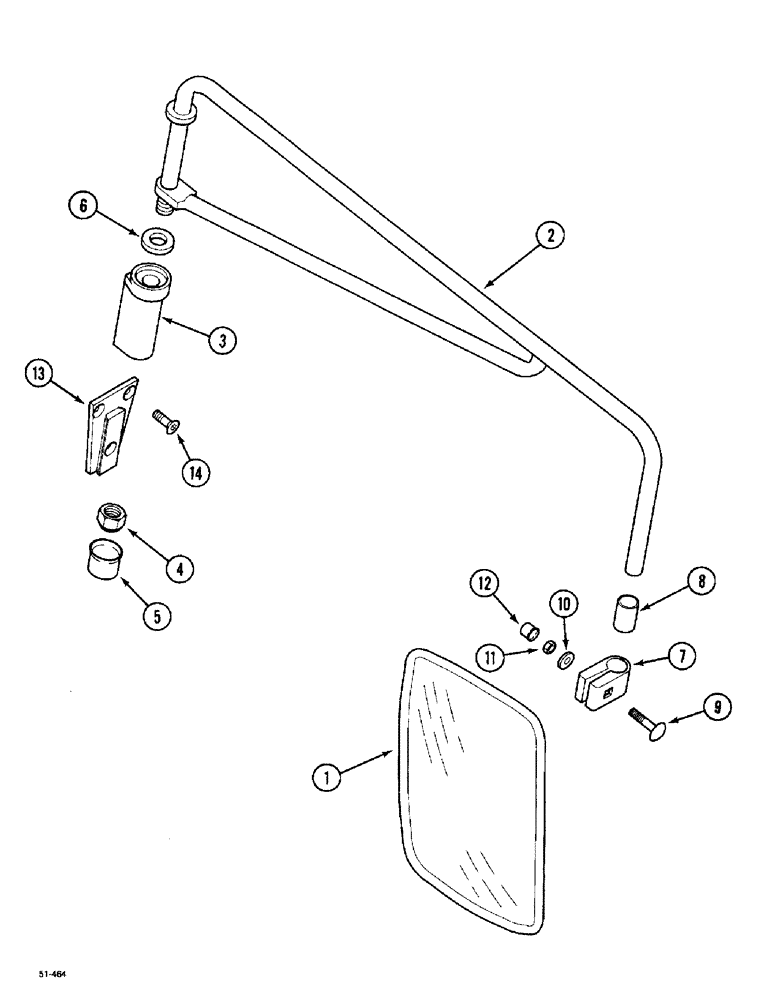

Запчасти Case IH 5150 (9H-12) - MIRRORS, WIDE ANGLE, ’WILKE’ (09) - CHASSIS/ATTACHMENTS

1535642C1

MIRROR ASSY.

90138, Consists Of: 1-11

2шт.

1

1535643C1

MIRROR

rear view

2шт.

2

1535644C1

SUPPORT ASSY.

HOLDER, 90138, Includes: 3-11

2шт.

3

1535645C1

SUPPORT

HOLDER

2шт.

4

934170R1

NUT,M14 x 1.5, Cl 10

2шт.

5

3221607R1

CAP

M14

2шт.

6

1535646C1

WASHER

special

2шт.

7

1535647C1

CLAMP

2шт.

8

1535648C1

BUSHING

2шт.

9

Q5301

SCREW

6 x 35 mm

2шт.

10

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

2шт.

11

934305R1

THIN NUT,M6 x 1, Thin

6 mm

2шт.

12

3221725R1

CAP

6 mm

2шт.

13

1535631C1

SLIDE

2шт.

14

906012R1

HEX SOC SCREW,Flat Hd, CSK, M8 x 20mm, Cl 8.8

8 x 20 mm

6шт.
