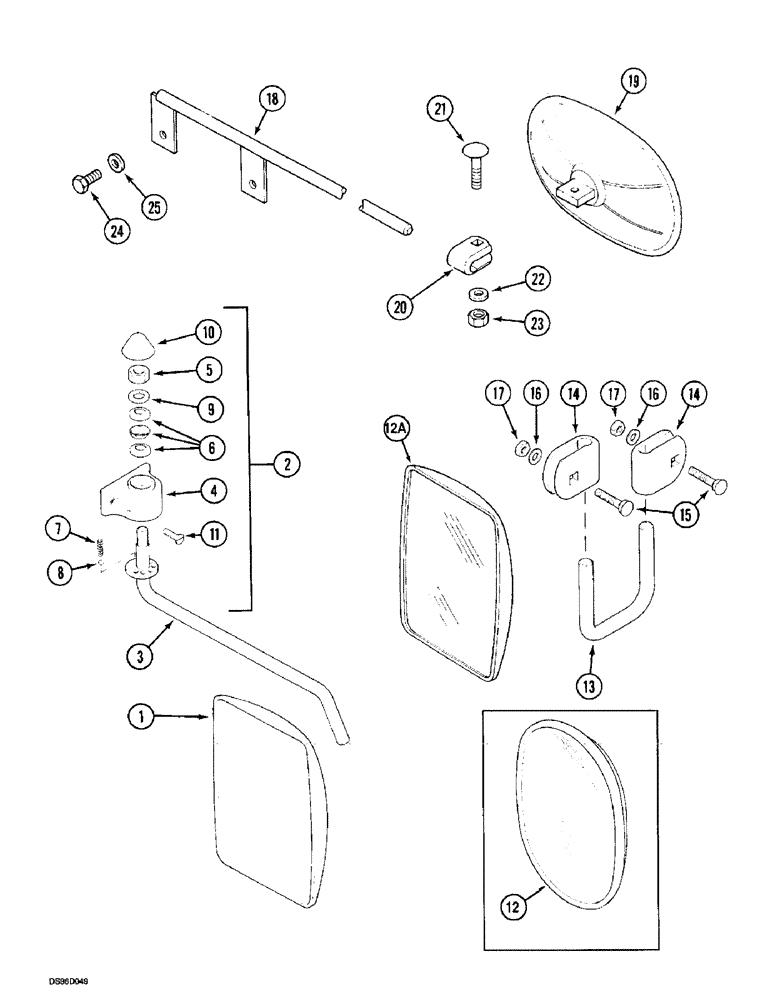

Запчасти Case IH 5150 (9H-08) - MIRRORS (09) - CHASSIS/ATTACHMENTS

1

1344062C1

MIRROR

rear view, 90138, Standard

2шт.

2

1535636C1

SUPPORT ASSY.

HOLDER, 90138, Right, Includes: 3-10

1шт.

2

1535637C1

SUPPORT ASSY.

HOLDER, 90138, Left, Includes: 3-10

1шт.

3

1535638C1

SUPPORT ASSY.

ARM, 90138, Right

1шт.

3

1535639C1

SUPPORT ASSY.

ARM, 90138, Left

1шт.

4

1977495C1

HOLDER

1шт.

5

3079424R1

THIN NUT,M12 x 20, Thin

1шт.

6

934223R1

BELLEVILLE WASHER,M12 Bolt Size x 25mm OD x 1.5mm Thk

Lock

3шт.

7

3399562R1

SPRING

1шт.

8

3057501R1

BALL

6 mm dia.

1шт.

9

95-81011

WASHER,17/32" x 1" x .120"

17/32 x 1 x 1/8

1шт.

10

3399567R1

CAP

1шт.

11

543-710

SCREW,Phillips Drive, Flat HD, M8 x 20mm, Cl 4.8

8 x 30 mm

4шт.

12

1975766C1

MIRROR

rear view, 90138, Interior

1шт.

12a

221737A1

MIRROR ASSY.

rear view, 90138, Interior, Consists Of: 12, 13, 14A, 15, 16, 17A

1шт.

13

1975807C1

ROD

1шт.

14

1975808C1

CLAMP

2шт.

14a

221739A1

CLAMP

2шт.

15

811-6025

CARRIAGE BOLT,Sht Sq Nk, M6 x 1 x 25mm, Cl 8.8

2шт.

16

896-11006

WASHER,6.6mm ID x 12.5mm OD x 2mm Thk

2шт.

17

829-1306

NUT,M6, Cl 10

2шт.

17a

832-10406

NUT,M6 x 1, Cl 8

2шт.

18

1533470C1

HOLDER

ASSY.

1шт.

19

1975766C1

MIRROR

rear view

1шт.

20

1975808C1

CLAMP

1шт.

21

811-6025

CARRIAGE BOLT,Sht Sq Nk, M6 x 1 x 25mm, Cl 8.8

1шт.

22

896-11006

WASHER,6.6mm ID x 12.5mm OD x 2mm Thk

1шт.

23

829-1306

NUT,M6, Cl 10

1шт.

24

814-6030

BOLT,Hex, M6 x 1 x 30mm, Cl 8.8

2шт.

25

3233293R1

WASHER,M6.34 x 18 x 1.6

6 mm

2шт.
