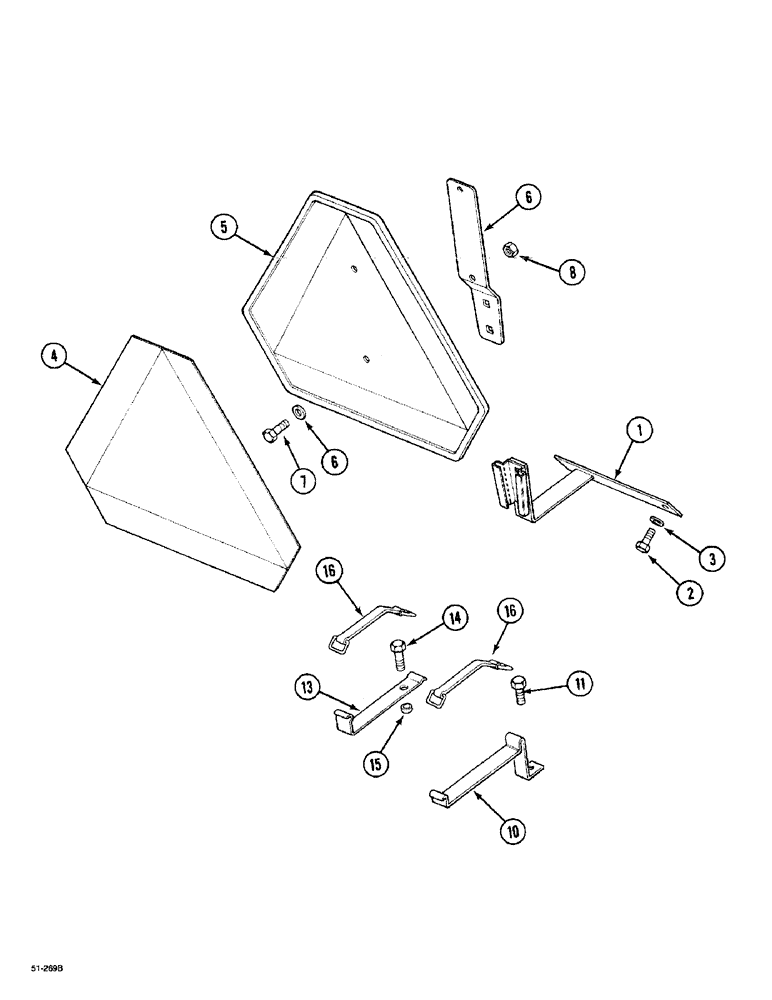

Запчасти Case IH 5150 (9H-04) - WARNING TRIANGLE - SLOW MOVING VEHICLE (09) - CHASSIS/ATTACHMENTS

1

1533002C1

SUPPORT

ASSY., 90136, For Scandinavia

1шт.

2

614-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8, Full Thd

2шт.

3

3233293R1

WASHER,M6.34 x 18 x 1.6

6 mm

2шт.

4

321-4311

DECAL

1шт.

4

T103854

DECAL

90136, Optional Without Cab

1шт.

5

133273A1

TRAFFIC SIGN

90136, For Scandinavia

1шт.

6

1533505C1

SUPPORT

90136, For Scandinavia

1шт.

7

614-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd

90136, Use with 1531413C1

2шт.

7

614-5020

BOLT,Hex, M5 x 0.8 x 20mm, Cl 8.8, Full Thd

90136, Use with 133723A1

2шт.

8

832-10406

NUT,M6 x 1, Cl 8

90136, Use with 1531413C1

2шт.

8

824-1405

NUT,M5, Cl 5

90136, Use with 133723A1

2шт.

9

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

90136, Use with 1531413C1

4шт.

9

895-11005

WASHER,5.5mm ID x 10mm OD x 1mm Thk

90136, Use with 133723A1

4шт.

10

1531383C2

SUPPORT

90136, With Cab

2шт.

11

614-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

2шт.

13

1531385C1

SUPPORT

90136, Without Cab

2шт.

14

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

2шт.

15

T104296

WASHER

2шт.

16

1531384C1

STRAP

2шт.
