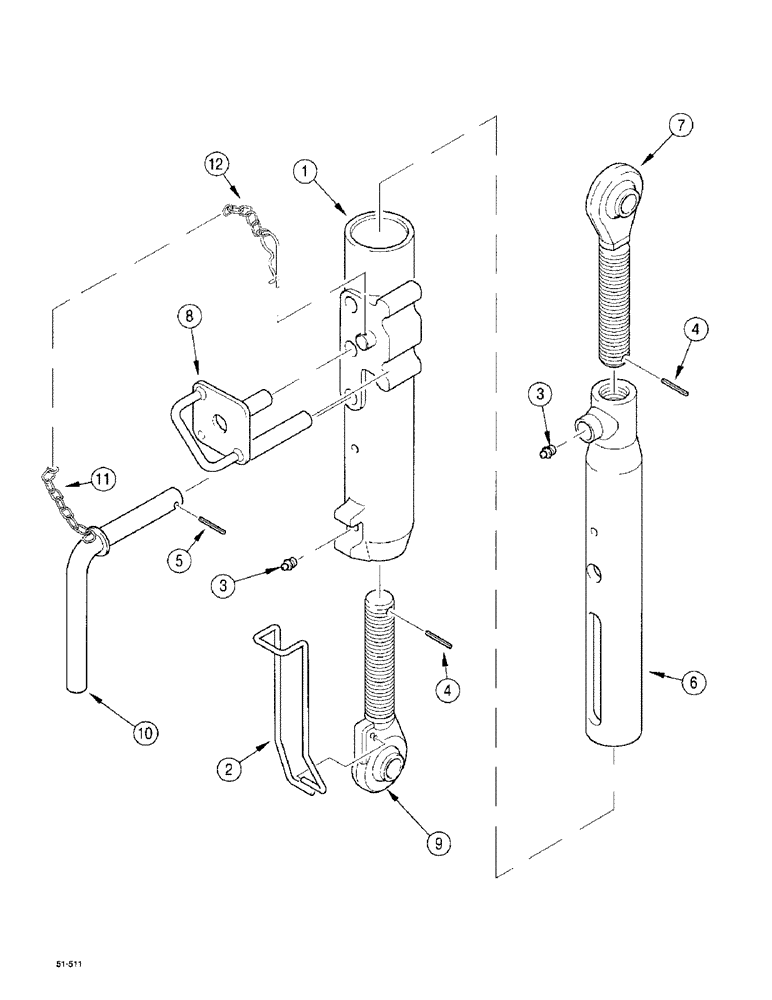

Запчасти Case IH 5150 (9G-114) - UPPER LINK - FRONT HITCH, (JJF1030630 - ) (09) - CHASSIS/ATTACHMENTS

130422A1

UPPER LINK

96120, Upper, Consists Of: 1-12

1шт.

1

130444A1

TURNBUCKLE

TENSIONER

1шт.

2

130445A1

SPRING CLIP

96120, Upper

1шт.

3

321204

LUBE NIPPLE,M6 x 1.0 x 16mm OAL

2шт.

4

Q5343

LOCK PIN,M5 x 30, Slotted

2шт.

5

738-5524

LOCK PIN,M5 x 24, Slotted

Roll

1шт.

6

130423A1

TURNBUCKLE

TENSIONER

1шт.

7

130425A1

ROD

SOCKET ASSY.

1шт.

8

130428A1

SUPPORT ASSY.

1шт.

9

130432A1

ROD

SOCKET ASSY.

1шт.

10

130437A1

HITCH PIN

ASSY., 96120, Includes: 11

1шт.

11

130438A1

RING, SNAP

RING SNAP

1шт.

12

130439A1

CHAIN,3 Point Linkage

ASSY.

1шт.
