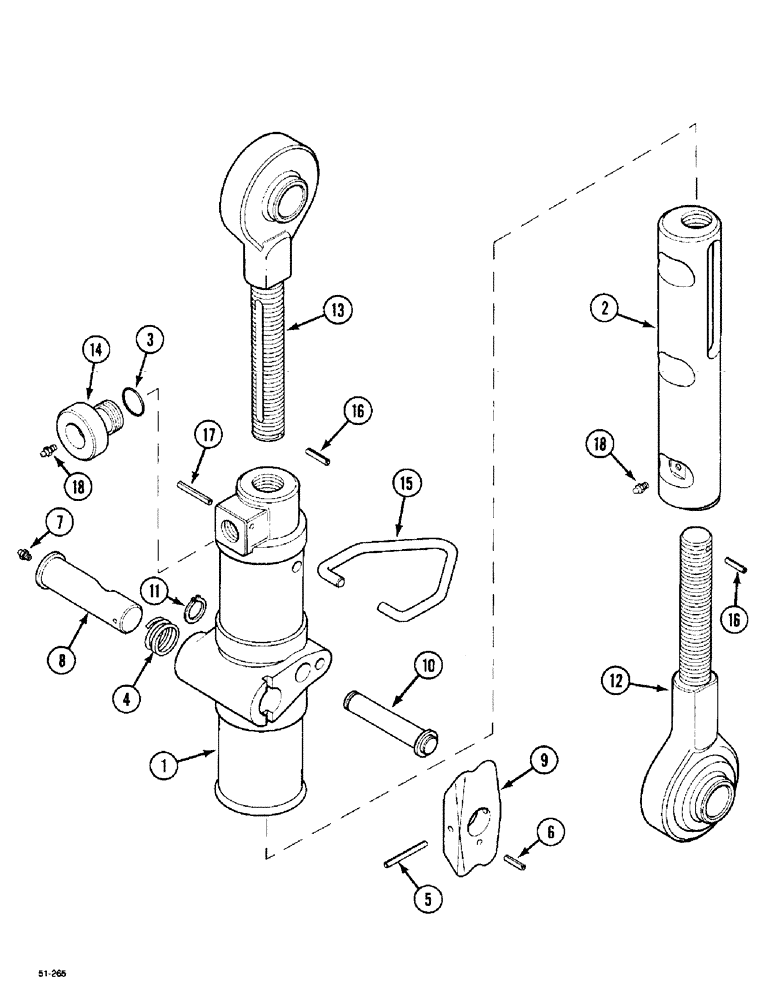

Запчасти Case IH 5150 (9G-112) - UPPER LINK - FRONT HITCH, ( - JJF1030639) (09) - CHASSIS/ATTACHMENTS

1531352C2

UPPER LINK

96120, Consists Of: 1-18

1шт.

1

1531561C2

SLEEVE

1шт.

2

1531566C2

SLEEVE

1шт.

3

1533129C1

SEALING RING

1шт.

1531560C1

PIN

ASSY., 96120, Consists Of: 4-9

1шт.

4

1533261C1

SPRING

1шт.

5

932234R1

LOCK PIN,M6 x 40, Slotted

1шт.

6

932470R1

LOCK PIN,M6 x 20, Slotted

Roll

1шт.

7

714100R91

NIPPLE, LUBE

NIPPLE 96120, Special

1шт.

8

NSS

NOT SOLD SEPARAT

PIN cross, 96120, Order: 1531560C1

1шт.

9

NSS

NOT SOLD SEPARAT

HANDLE ASSY., 96120, Order: 1531560C1

1шт.

10

1533253C1

HITCH PIN

1шт.

11

934240R1

SNAP RING,M16, Ext

retaining

1шт.

12

1531558C1

TURNBUCKLE

ROD ASSY.

1шт.

13

1531559C1

TURNBUCKLE

ROS ASSY.

1шт.

14

1533128C1

CLEVIS PIN,M22 x 1.5 x 47mm, Cl 8

1шт.

15

1531565C1

HANDLE

1шт.

16

Q5343

LOCK PIN,M5 x 30, Slotted

2шт.

17

932231R1

LOCK PIN,M4 x 36, Slotted

roll 5 x 36 mm

1шт.

18

714100R91

NIPPLE, LUBE

NIPPLE 96120, Special

2шт.
