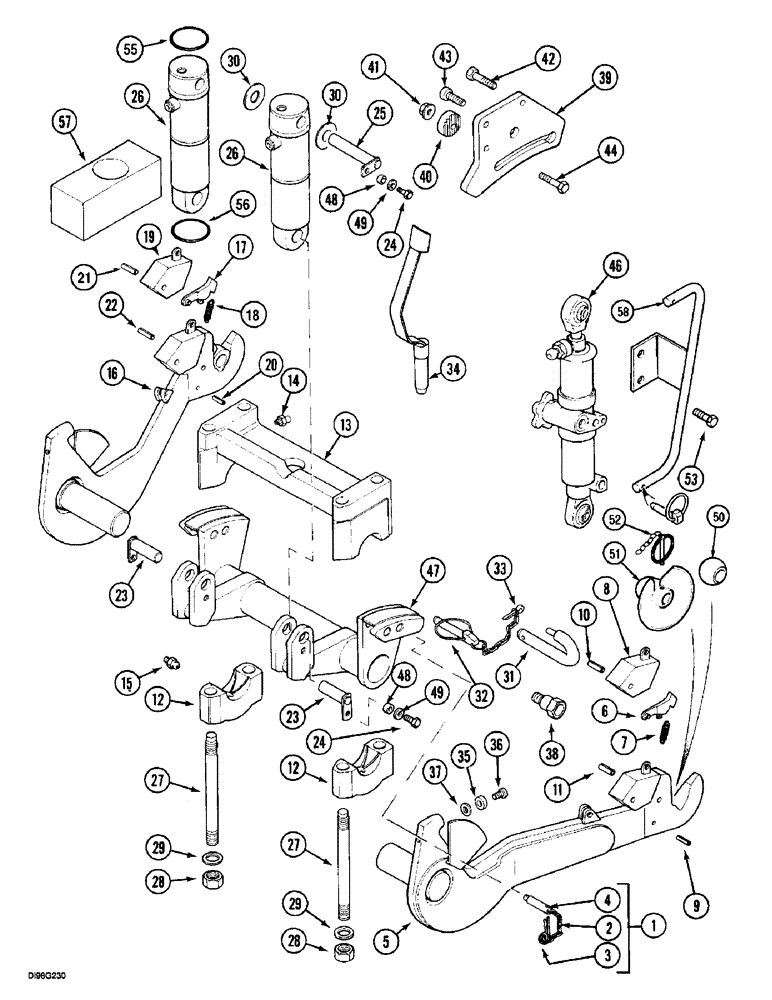

Запчасти Case IH 5150 (9G-106) - HITCH - 3 POINT FRONT (09) - CHASSIS/ATTACHMENTS

1b

1534574C1

HITCH PIN,30mm OD x 95mm L

ASSY., 96120, Consists Of: 2, 3, 4, Serial Range: -JJF1013035

2шт.

1a

T104025

PIN

BOLT ASSY., 96120, Consists Of: 2, 3, 4, 5120, 5130, 5140, Start Serial: JJF1013034

2шт.

2

T104098

CHAIN,W/Ring

96120, With Ring

1шт.

3

T104026

SPLIT PIN/SAFETY PIN

CLIP spring

1шт.

4b

1534575C1

HITCH PIN,30mm OD x 95mm L

, Serial Range: -JJF1013035

1шт.

4a

T100927

PIN

BOLT ASSY., 96120, 5120, 5130, 5140, Start Serial: JJF1013034

1шт.

5b

1534568C1

LOWER LINK

96120, Right, Includes: 6-11, Serial Range: -JJF1013035

1шт.

5a

1531831C1

LOWER LINK

96120, Right, 5120, 5130, 5140, Includes: 6-11, Start Serial: JJF1013034

1шт.

6

1974206C2

LATCH ASSY.

1шт.

7

1974207C1

SPRING

1шт.

8

1974208C1

LEVER

SUPPORT

1шт.

9

30783R1

LOCK PIN,M6 x 28, Slotted

Roll

1шт.

10

905985R1

LOCK PIN,M13 x 45, Slotted

roll

1шт.

11

905984R1

LOCK PIN,M13 x 32, Slotted

roll

1шт.

12

1533227C1

SUPPORT

2шт.

13

1533217C2

SUPPORT ASSY.

1шт.

14

933781R1

LUBE NIPPLE,M10 x 1

2шт.

15

A52236

LUBE NIPPLE,M8 x 1

96120, Straight

2шт.

16b

1534564C1

LOWER LINK

96120, Left, Includes: 17-22, Serial Range: -JJF1013035

1шт.

16a

1531830C1

LOWER LINK

96120, Left, 5120, 5130, 5140, Includes: 17-22, Start Serial: JF1013034

1шт.

17

1974206C2

LATCH ASSY.

1шт.

18

1974207C1

SPRING

1шт.

19

1974208C1

LEVER

SUPPORT

1шт.

20

30783R1

LOCK PIN,M6 x 28, Slotted

Roll

1шт.

21

905985R1

LOCK PIN,M13 x 45, Slotted

roll

1шт.

22

905984R1

LOCK PIN,M13 x 32, Slotted

roll

1шт.

23

1533063C1

PIN,31.85mm OD x 93mm L

PIN ASSY.

2шт.

24

614-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

4шт.

25

1533124C1

PIN,31.85mm OD x 170mm L

PIN ASSY.

2шт.

26

1531075C2

CYLINDER ASSY.

86161, Left, Single Acting

1шт.

26

1530612C1

CYLINDER ASSY.

86161, Right, Double Acting

1шт.

1530613C1

SEAL KIT

repair, 86161, Double Acting

1шт.

27

T104086

STUD

M24

4шт.

28

829-1324

NUT

M24; 10

4шт.

29

905763R1

WASHER,M25 High Tensile

4шт.

30

3226898R1

WASHER

SHIM adjusting

1шт.

31

T100657

PIN

1шт.

32

1531615C1

CHAIN (AG),10mm OD

ASSY., 96120, Includes: 33

1шт.

33

3059364R1

PIN

cotter

1шт.

34

1531591C1

PIN

ASSY.

1шт.

35

T100522

SPACER

2шт.

36

934600R1

HEX SOC SCREW,M8 x 25mm, Cl 8.8

2шт.

37

T100538

WASHER

1шт.

38

T100885

UNION

HOLDER

2шт.

39

1531360C2

PLATE

1шт.

40

1531361C2

STOP

PLATE

1шт.

41

905958R1

FLANGE NUT,Flg, M16 x 1.5, 10

1шт.

42

627-20060

BOLT,Hex, M20 x 2.5 x 60mm, Cl 10.9, Full Thd

3шт.

43

862-20045

HEX SOC SCREW,M20 x 45mm, Cl 12.9

1шт.

44

905959R1

BOLT,Hex, M16 x 1.5 x 50mm, Cl 10.9, Full Thd

Hex, M16 x 1.5 x 50, 10.9, Full Thd

1шт.

46

REF

INSTRUCTION

LINK upper, 96120, See Figures: 9G-112, 9G-114

1шт.

47b

1534570C1

SUPPORT ASSY.,530 mm Length

TUBE, Serial Range: -JJF1013035

1шт.

47a

1531105C2

SUPPORT ASSY.,530 mm Length

TUBE, Start Serial: JJF1013034

1шт.

48

1533065C1

SPACER

4шт.

49

933615R1

WASHER,M8.4 x 21 x 4

4шт.

50

3224240R1

BALL,20.7mm ID x 56mm OD

1шт.

51

1537371C1

BALL JOINT

RETAINER ASSY., 96120, With Flange, Includes: 52

1шт.

52

1537373C1

LINCH PIN

1шт.

53

626-16030

BOLT,Hex, M16 x 2 x 30mm, Cl 10.9, Full Thd

Hex, M16 x 30, 10.9, Full Thd

2шт.

54

3053363R91

LINCH PIN,32mm OD

2шт.

1533954C1

SEAL KIT

96120, Single Acting, Includes: 55, 56

1шт.

55

NSS

NOT SOLD SEPARAT

RING

1шт.

56

NSS

NOT SOLD SEPARAT

RING

1шт.

57

1533897C1

FOAM

2шт.

58

1533494C1

SUPPORT ASSY.

1шт.
