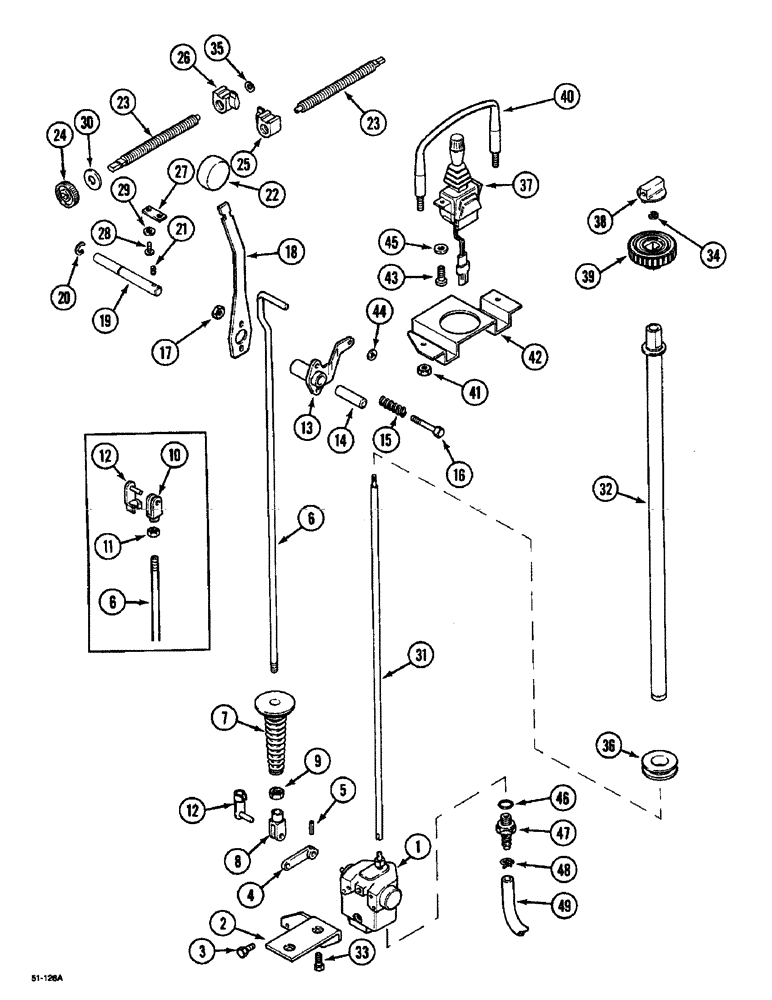

Запчасти Case IH 5150 (9G-100) - HITCH - CONTROL (09) - CHASSIS/ATTACHMENTS

1

REF

INSTRUCTION

VALVE control, 86143, Input Control, See Figure: 8-46

1шт.

2

1343920C2

BRACKET

1шт.

3

614-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

3шт.

4

113981A1

LEVER

1шт.

5

838-3420

PIN,M4 x 20, Coiled

4 x 20 mm

1шт.

6

1340043C1

ROD

96193, 5120, 5130, 5140 Setting Control, Serial Range: -JJF1012229

1шт.

6

1987184C1

ROD

96193, Setting Control (JJF1012230 - )

1шт.

7

1340062C1

BELLOWS

BOOT

1шт.

8

3234763R1

ADJUSTABLE CLEVIS,M6

6x24 mm

1шт.

9

825-1406

NUT,M6, Cl 8

1шт.

10

905940R1

ADJUSTABLE CLEVIS

6 x 24 mm, 96193, LH Thread If So Equipped

1шт.

11

905990R1

NUT,M6, Cl 5, LH

M6, 96193, LH Thread If So Equipped

1шт.

12

3234936R1

CLEVIS PIN

1шт.

1533812C1

LEVER

ASSY., 96193, Includes: 13, 14

1шт.

13

NSS

NOT SOLD SEPARAT

LEVER

1шт.

14

1533534C1

PLASTIC RING

BUSHING, 96193, If So Equipped

2шт.

15

T102381

SPRING

2шт.

16

828-6040

BOLT,Hex, M6 x 1 x 40mm, Cl 10.9

M6 x 40; 10.9

2шт.

17

933973R1

THIN NUT,Thin, M6 x 1, Cl 04

M6

2шт.

18

1533813C2

CONTROL LEVER

86191, Start Serial: JJF1012230

1шт.

18

1340039C1

LEVER

86191, 5120, 5130, 5140, Serial Range: -JJF1012229

1шт.

19

1340042C1

SHAFT

1шт.

20

T101807

CLIP

1шт.

21

577-2068

SET SCREW,Hex Soc, M6 x 8, Cone Pt

6 x 8 mm

1шт.

22

1958670C1

KNOB

86191, Control

1шт.

23

1546825C1

ROD,THREADED

THREADED ROD SCREW

2шт.

24

T103053

KNOB

2шт.

25

1340047C1

STOP

96193, Front

1шт.

26

1340048C1

STOP

96193, Rear

1шт.

27

T103056

BAR

SHEET

2шт.

28

30773R1

SELF-TAP SCREW,Pan Hd, M4.8 x 16

4.8 x 16 mm

4шт.

29

T103057

WASHER

2шт.

30

T104140

WASHER

2шт.

31

1343937C1

SHAFT

1шт.

32

1343930C1

TUBE,32 mm OD, 618 mm Length

ASSY., 96193, Mode Selector

1шт.

33

614-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

2шт.

34

800-436

CIRCLIP,M6

Retaining

1шт.

35

495-31025

WASHER,3/16"

1/4 x 9/16 x 3/64

3шт.

36

1340061C1

GROMMET

1шт.

37

1534361C2

SWITCH, THREE POINT

1шт.

38

1340052C2

BUTTON

KNOB

1шт.

39

1340053C2

KNOB

86191, Mode Selector

1шт.

40

1533588C2

PROTECTOR

1шт.

41

825-1405

NUT,M5, Cl 8

2шт.

42

1990868C1

SUPPORT

1шт.

43

840-1516

SCREW,Pan, M5 x 16mm, Cl 4.8

2шт.

44

1987185C1

CLIP

1шт.

45

934902R1

WASHER,M5.3 x 15 x 1.6

5.3 x 16 x 1.6

2шт.

47

217-387

FITTING,3/8" Hose Barb x 9/16" - 18 Male ORB

3/8 stem x 9/16 Or

1шт.

48

905893R1

CLAMP,M12-23, Worm

2шт.

49

1533447C1

HOSE

1шт.

46

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.
