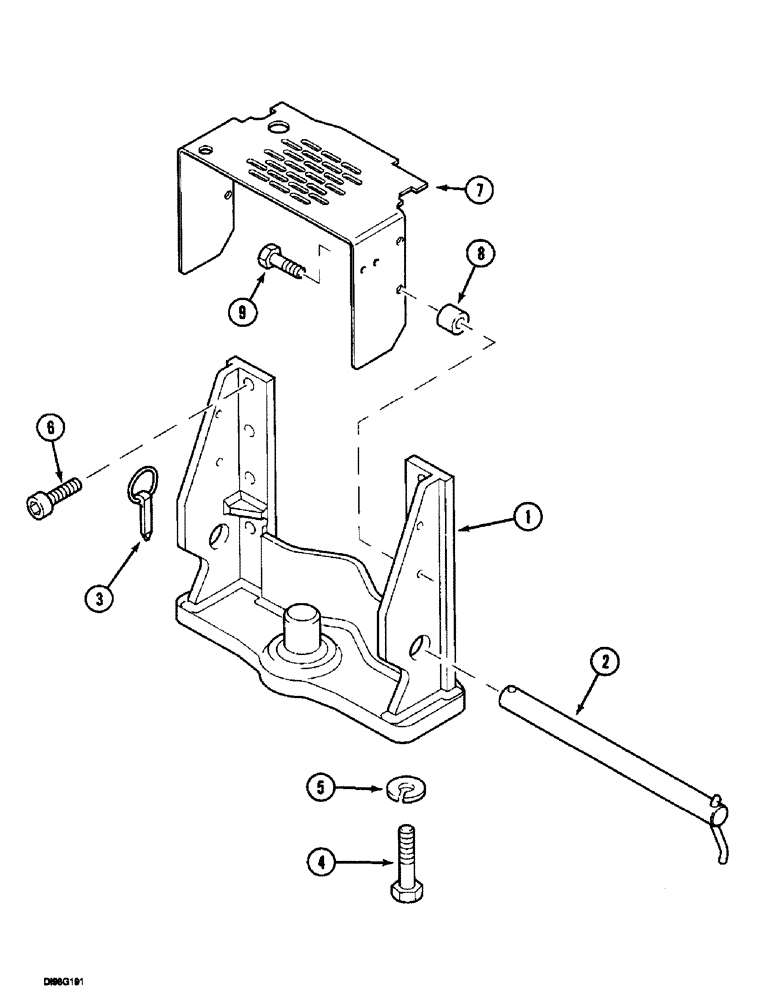

Запчасти Case IH 5150 (9G-098) - HITCH - PITON FIXE (09) - CHASSIS/ATTACHMENTS

1974034C3

HITCH ASSY

90117, Consists Of: 1-3

1шт.

1

1974035C3

SUPPORT

1шт.

2

1982024C1

HITCH PIN

1шт.

3

1960092C1

LINCH PIN

1шт.

4

828-16100

BOLT,Hex, M16 x 2 x 100mm, Cl 10.9

2шт.

5

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

2шт.

6

31303R1

HEX SOC SCREW,M16 x 45mm, Cl 12.9

16 x 45 mm

8шт.

7

1974281C5

PROTECTION PLATE

ASSY., 90117, Independent Power Take Off

1шт.

8

1974263C1

SPACER

4шт.

9

628-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 10.9, Full Thd

4шт.
