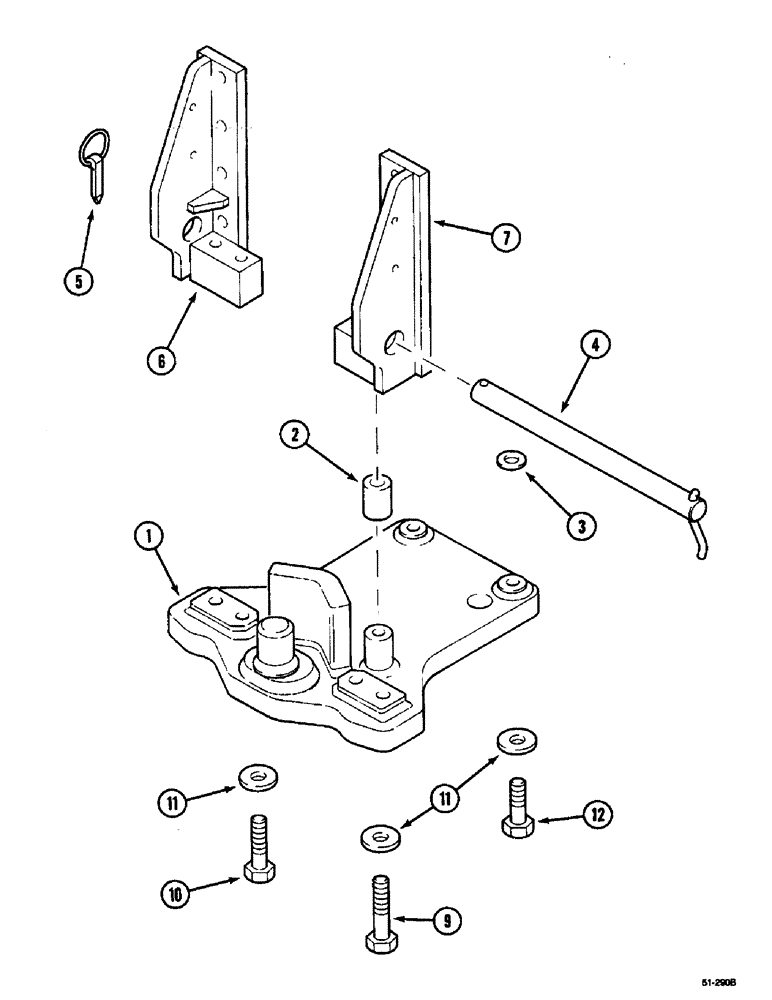

Запчасти Case IH 5150 (9G-096) - HITCH - SWINGING DRAWBAR SUPPORT WITH PITON FIXE (09) - CHASSIS/ATTACHMENTS

1

1534658C1

HITCH BRACKET

ASSY.

1шт.

2

1960105C2

SPACER

90117, Long, 5120, 5130, 5140, Serial Range: -JJF1012574

2шт.

3

1960093C1

WASHER

SPACER, 90117 Short 5120, 5130, 5140, Serial Range: -JJF1012574

2шт.

4

1534809C1

HITCH PIN

1шт.

5

1960092C1

LINCH PIN

90117, 5120, 5130, 5140, Serial Range: -JJF1020006

1шт.

5

3053363R91

LINCH PIN,32mm OD

90117 ), Start Serial: JJF1020007

1шт.

6

1534662C1

HITCH BRACKET

90117 Short, Left

1шт.

7

1534663C1

HITCH BRACKET

90117 Short, Right

1шт.

9

828-16100

BOLT,Hex, M16 x 2 x 100mm, Cl 10.9

2шт.

10

828-16060

BOLT,Hex, M16 x 2 x 60mm, Cl 10.9

90117, 5120, 5130, 5140, Serial Range: -JJF1012574

2шт.

10

514-1028

BOLT,Hex, M16 x 2 x 90mm, Cl 12.9

M16 x 90; 12.9, 90117, Start Serial: JJF1012575

4шт.

11

896-12016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

6шт.

12

828-16050

BOLT,Hex, M16 x 2 x 50mm, Cl 10.9

M16 x 50; 10.9

2шт.
