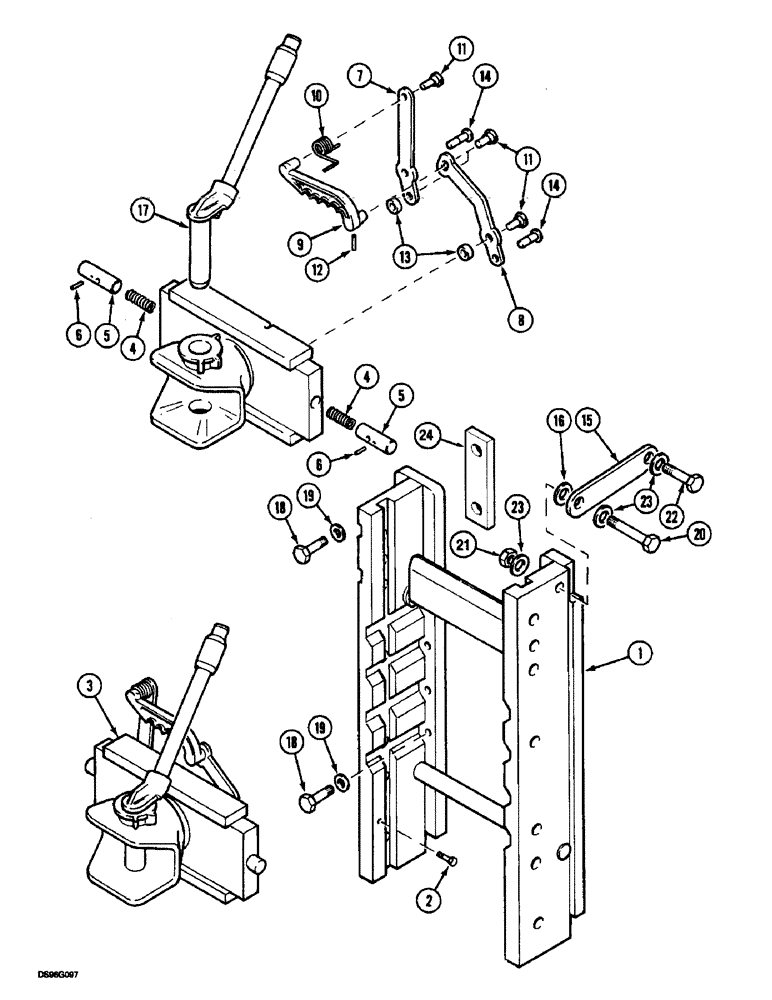

Запчасти Case IH 5150 (9G-092) - TRAILER HITCH, (JJF1036659 - ) (09) - CHASSIS/ATTACHMENTS

130230A1

HITCH ASSY

90117, Consists Of: 1B-15B,16-19, 24

1шт.

175107A1

HITCH ASSY

90117, Standard Clevis, Consists Of: 1A-15A,16-19

1шт.

1b

175104A1

SUPPORT ASSY.

FRAME, 90117, Includes: 2

1шт.

1a

175108A1

SUPPORT ASSY.

FRAME, 90117, Includes: 2

1шт.

2

864-10025

HEX SOC SCREW,M10 x 25mm, Cl 8.8

M10 x 25

1шт.

3

175106A1

TRAILER HITCH

SHACKLE, 90117, Includes: 4-19

1шт.

4

141013A1

SPRING

ASSY.

2шт.

5

141014A1

PIN

2шт.

6

738-5520

LOCK PIN,5mm OD x 20mm L, Slotted

2шт.

175101A1

LEVER

90117, Includes: 7-14

1шт.

7

NSS

NOT SOLD SEPARAT

BAR, 90117, Order: 175101A1

1шт.

8

NSS

NOT SOLD SEPARAT

BAR, 90117, Order: 175101A1

1шт.

9

NSS

NOT SOLD SEPARAT

HANDLE ASSY., 90117, Order: 175101A1

1шт.

10

NSS

NOT SOLD SEPARAT

SPRING, 90117, Order: 175101A1

1шт.

11

NSS

NOT SOLD SEPARAT

PIN cross, 90117, Order: 175101A1

1шт.

12

738-1516

LOCK PIN,M5 x 16, Slotted

1шт.

13

NSS

NOT SOLD SEPARAT

SPACER ASSY., 90117, Order: 175101A1

2шт.

14

NSS

NOT SOLD SEPARAT

PIN cross, 90117, Order: 175101A1

2шт.

15

175151A1

LARGE PLATE

PLATE, LARGE 241 mm

1шт.

16

175152A1

SPACER

ASSY.

2шт.

17

1974073C1

CLEVIS PIN

ASSY.

2шт.

18

962-16045

HEX SOC SCREW,M16 x 45mm, Cl 10.9

M16 x 45

10шт.

19

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

10шт.

20

828-20080

BOLT,Hex, M20 x 2.5 x 80mm, Cl 10.9

1шт.

21

829-1320

NUT,M20, Cl 10

1шт.

22

628-20050

BOLT,Hex, M20 x 50mm, Cl 10.9

1шт.

23

896-16020

WASHER,22mm ID x 44mm OD x 5mm Thk

22 x 44 x 5 mm

3шт.

24

185169A1

SPACER

1шт.
