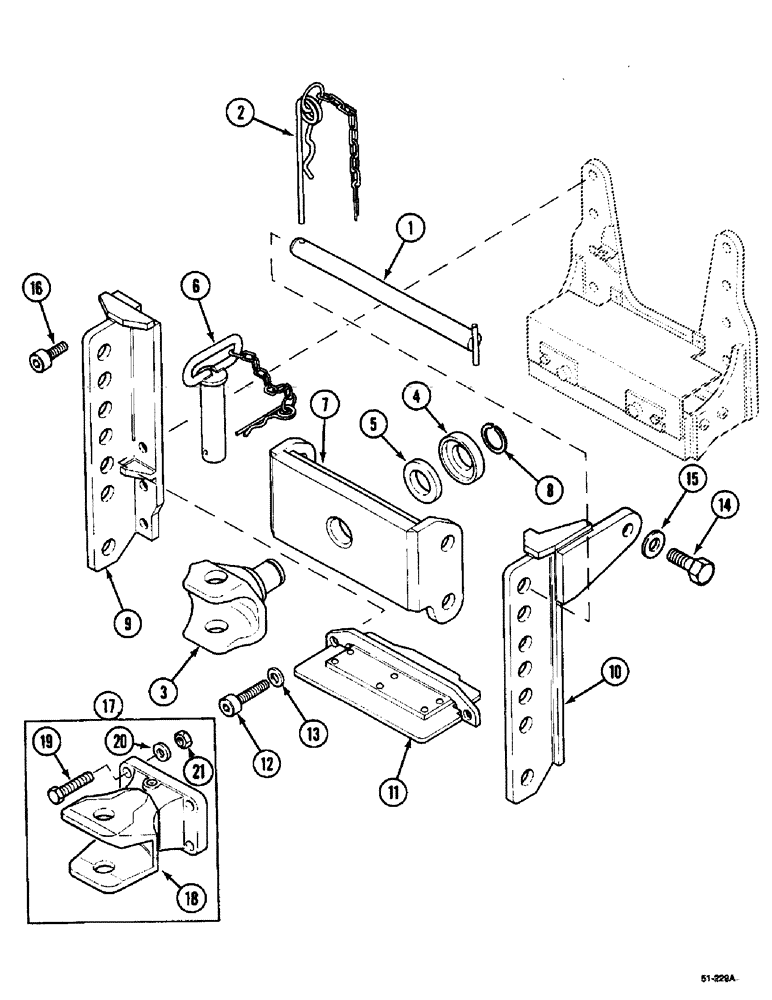

Запчасти Case IH 5150 (9G-090) - TRAILER HITCH, ( - JJF1036658), USED WITH AUTO HITCH FOR UK AND SCANDINAVIA (09) - CHASSIS/ATTACHMENTS

NSS

NOT SOLD SEPARAT

HITCH ASSY., 90117, Consists Of: 1-10

1шт.

1

1974025C1

PIN

2шт.

2

1974036C1

LINCH PIN

CLIP spring

1шт.

1974017C1

SUPPORT

SHACKLE, 90117, Consists Of: 3-8

1шт.

3

1974018C1

ADJUSTABLE CLEVIS

1шт.

4

1974019C1

FITTING

COLLAR

1шт.

5

1974020C1

SPACER

1шт.

6

1974021C1

PIN

ASSY.

1шт.

7

1974022C1

SUPPORT

1шт.

8

1974037C1

CIRCLIP,Ext, M37.1

1шт.

9

1974027C2

SUPPORT

90117, Left

1шт.

10

1974028C1

SUPPORT

90117, Right

1шт.

11

1974283C3

SHIELD

90117, Independent Power Take Off

1шт.

12

828-16070

BOLT,Hex, M16 x 2 x 70mm, Cl 10.9

2шт.

13

896-12016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

2шт.

14

864-20055

HEX SOC SCREW,M20 x 55mm, Cl 8.8

M20 x 55

1шт.

15

892-11016

LOCK WASHER,16.4mm ID x 27.4mm OD x 5mm Thk

1шт.

16

31376R1

HEX SOC SCREW,M16 x 60mm, Cl 12.9

16 x 60 mm

6шт.

17

131388A1

TRAILER HITCH

PACKAGE, 90117, Consists Of: 18-21

1шт.

18

131389A1

TRAILER HITCH

CLEVIS

1шт.

19

828-16070

BOLT,Hex, M16 x 2 x 70mm, Cl 10.9

4шт.

20

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

4шт.

21

829-1416

NUT,M16, Cl 10

4шт.
