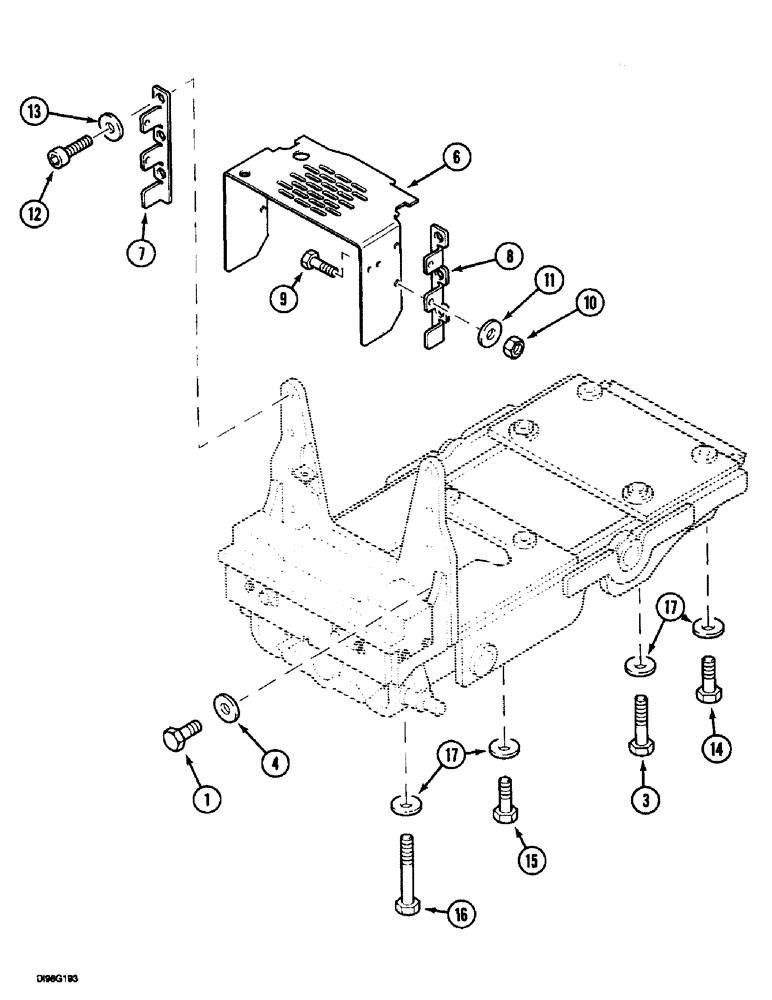

Запчасти Case IH 5150 (9G-086) - AUTO HITCH MOUNTING FOR U.K. AND SCANDINAVIA (09) - CHASSIS/ATTACHMENTS

1

628-16045

BOLT,Hex, M16 x 2 x 45mm, Cl 10.9, Full Thd

2шт.

3

828-16070

BOLT,Hex, M16 x 2 x 70mm, Cl 10.9

2шт.

4

896-16016

WASHER,17.5mm ID x 34mm OD x 5mm Thk

17.5 x 34 x 5 mm

2шт.

6

1974281C5

PROTECTION PLATE

ASSY., 90135, Independent Power Take Off

1шт.

7

1974261C2

SUPPORT

90135, Left

1шт.

8

1974262C2

SUPPORT

90135, Right

1шт.

9

628-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

4шт.

10

829-1310

NUT,M10, Cl 10

4шт.

11

896-12010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

11 x 21 x 2.5 mm

4шт.

12

863-16040

HEX SOC SCREW,M16 x 40mm, Cl 12.9

M16 x 40; 12.9

6шт.

13

896-12016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

6шт.

14

828-16055

BOLT,Hex, M16 x 2 x 55mm, Cl 10.9

2шт.

15

628-16050

BOLT,Hex, M16 x 2 x 50mm, Cl 10.9, Full Thd

2шт.

16

828-16090

BOLT,Hex, M16 x 2 x 90mm, Cl 10.9

2шт.

17

896-12016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

8шт.
