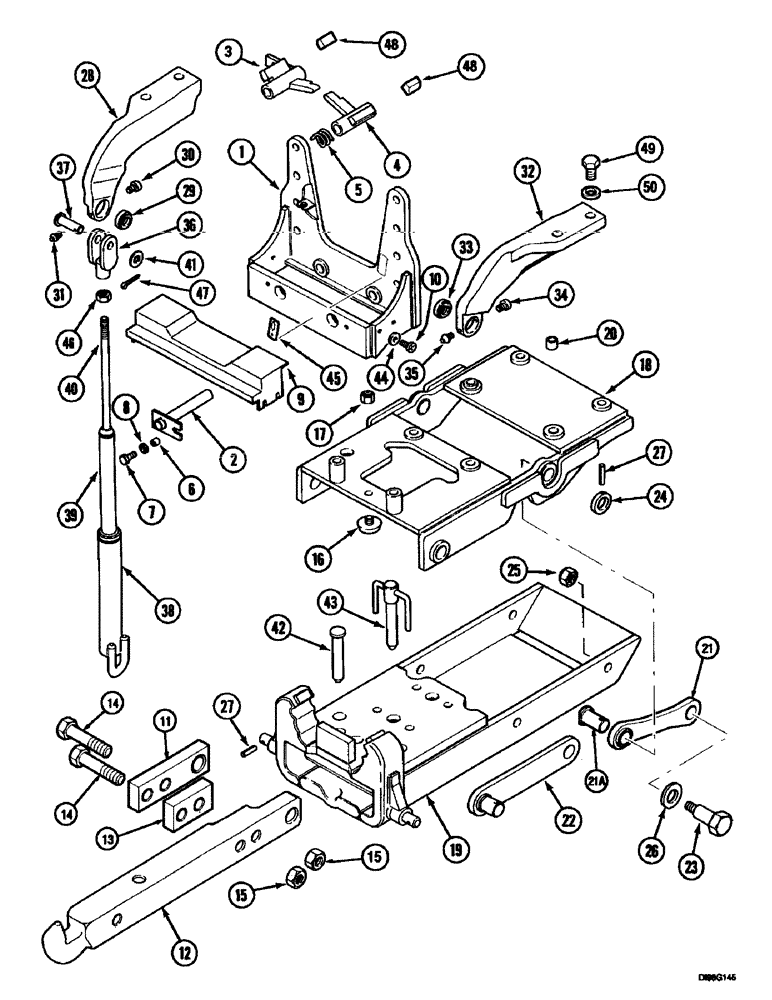

Запчасти Case IH 5150 (9G-082) - AUTO HITCH FOR U.K. AND SCANDINAVIA, DO NOT MIX OLD AND NEW ON SAME TRACTOR (09) - CHASSIS/ATTACHMENTS

1982008C8

FRAME ASSY

90117 Consists Of: 1-10

1шт.

1

1974106C7

FRAME ASSY

1шт.

2

123327A2

HITCH PIN,22.2mm OD x 150mm L

ASSY., 90117, Start Serial: JJF1026754

2шт.

2

1982006C1

PIN

ASSY., 90117, Serial Range: -JJF1026753

2шт.

221402A2

SET OF PARTS

repair, 90117, Includes: 3-5, 45, 48

1шт.

3

1348188C3

PAWL

BAR, 90117, Left

1шт.

4

1348189C4

PAWL

BAR, 90117, Right

1шт.

5

1965237C1

SPRING

1шт.

6

1982003C1

SPACER

2шт.

7

628-8020

BOLT,Hex, M8 x 20, 10.9, Full Thd

2шт.

8

896-12008

WASHER,8.8mm ID x 17.5mm OD x 2mm Thk

9 x 17 x 2 mm

2шт.

9

123328A1

COVER ASSY

90117, Start Serial: JJF1026754

1шт.

9

1998119C1

COVER ASSY

90117, Serial Range: -JJF1026753

1шт.

10

31006R1

SCREW,Cross Pan Hd, M6 x 16

16 x 16 mm

4шт.

11

1998220C1

DRAWBAR CLAMP

BAR

1шт.

12

1974135C3

HOOK

BAR

1шт.

13

1998221C1

SPACER

1шт.

14

828-20150

BOLT,Hex, M20 x 2.5 x 150mm, Cl 10.9

M20 x 150; 10.9

2шт.

15

832-41320

NUT,M20 x 2.5, Cl 10

2шт.

1982092C3

FRAME ASSY

90117, Consists Of: 16-27

1шт.

16

1500608C1

SHOCK ABSORBER

stop

1шт.

17

832-10410

NUT,M10 x 1.5, Cl 8

1шт.

18

1974120C5

BRACKET

ASSY., 90117, Bottom

1шт.

19

1974107C5

FRAME, HITCH

ASSY.

1шт.

20

1974142C1

PIN

BUSHING

1шт.

21

253917A1

ARM

LINK ASSY., 90117, Front

2шт.

21a

253918A1

HITCH PIN

2шт.

22

1974128C3

ARM

LINK ASSY., 90117, Rear

2шт.

23

1974131C3

BOLT

4шт.

24

1974130C1

BUSHING

4шт.

25

1982091C1

NUT

M20

4шт.

26

1348164C1

WASHER

8шт.

27

838-5845

LOCK PIN,M8 x 45, Slotted

6шт.

1982093C1

ARM ASSY.

SUPPORT ASSY., 90117, Left, Consists Of: 28-31

1шт.

28

1974318C2

ARM ASSY.

BRACKET

1шт.

29

1982095C1

SPHERICAL BEARING,19.99mm ID x 15mm W

ball

1шт.

30

30855R1

SET SCREW,Hex Soc, M6 x 12 Cup Pt

6 x 12 mm

1шт.

31

712156R91

NIPPLE, LUBE

NIPPLE M6

1шт.

1982094C1

ARM ASSY.

SUPPORT, 90117, Right, Consists Of: 32-35

1шт.

32

1974319C2

ARM ASSY.

BRACKET, 90117, Right

1шт.

33

1982095C1

SPHERICAL BEARING,19.99mm ID x 15mm W

ball

1шт.

34

30855R1

SET SCREW,Hex Soc, M6 x 12 Cup Pt

6 x 12 mm

1шт.

35

712156R91

NIPPLE, LUBE

NIPPLE M6

1шт.

1982101C2

ARM ASSY.

90117, Consists Of: 36, 37, 46, 47

2шт.

36

1982089C3

CLEVIS,M16 x 2

1шт.

37

1982090C2

CLEVIS PIN

1шт.

1974133C6

LOWER LINK

ARM, 90117, Consists Of: 38-40

1шт.

38

220375A1

COLUMN JACKET

TUBE, 90117, Lower

1шт.

39

220374A1

COLUMN JACKET

TUBE, 90117, Center

1шт.

40

220373A1

LIFTING ROD

STEM, 90117, Upper

1шт.

41

896-12020

WASHER,22mm ID x 37mm OD x 4mm Thk

22 x 37 x 4 mm

1шт.

42

1974122C2

PIN

2шт.

43

1974123C2

PIN

ASSY.

1шт.

44

NSS

NOT SOLD SEPARAT

WASHER

4шт.

45

187264A1

DECAL

1шт.

46

1974139C1

THIN NUT

M16

1шт.

47

732-5032

COTTER PIN,M5 x 32

1шт.

48

221403A1

SPACER

2шт.

49

828-16060

BOLT,Hex, M16 x 2 x 60mm, Cl 10.9

4шт.

50

896-12016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

4шт.
