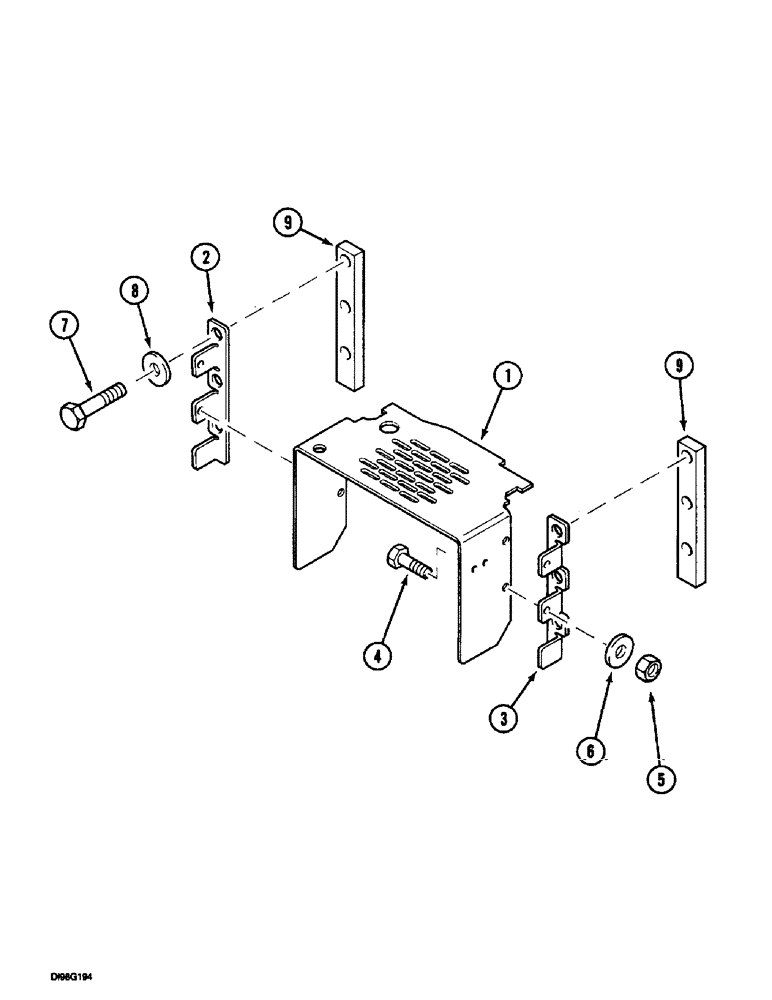

Запчасти Case IH 5150 (9G-080) - P.T.O. SHIELD, WITHOUT TRAILER HITCH (09) - CHASSIS/ATTACHMENTS

1

1974281C5

PROTECTION PLATE

ASSY., 90135, Independent Power Take Off

1шт.

2

1974261C2

SUPPORT

90135, Left

1шт.

3

1974262C2

SUPPORT

90135, Right

1шт.

4

628-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

4шт.

5

829-1310

NUT,M10, Cl 10

4шт.

6

896-12010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

11 x 21 x 2.5 mm

4шт.

7

628-16050

BOLT,Hex, M16 x 2 x 50mm, Cl 10.9, Full Thd

6шт.

8

896-12016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

6шт.

9

3131645R1

SPACER

PLATE

4шт.
