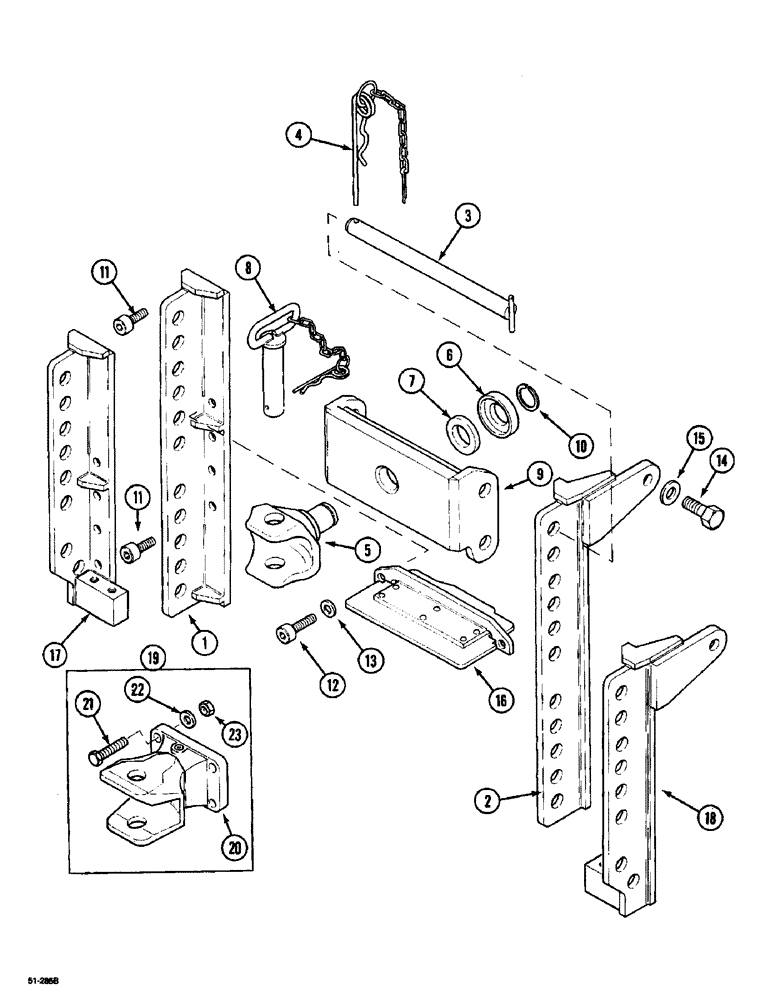

Запчасти Case IH 5150 (9G-078) - TRAILER HITCH, LEMOINE (09) - CHASSIS/ATTACHMENTS

NSS

NOT SOLD SEPARAT

HITCH ASSY., 90117, Consists Of: 1-10

1шт.

1

1534660C1

HITCH BRACKET

90117, Long

1шт.

2

1534661C1

HITCH BRACKET

90117, Long

1шт.

3

1974025C1

PIN

2шт.

4

1974036C1

LINCH PIN

CLIP spring

1шт.

5

NSS

NOT SOLD SEPARAT

CLEVIS

1шт.

6

1974019C1

FITTING

COLLAR

1шт.

7

1974020C1

SPACER

1шт.

8

1974021C1

PIN

ASSY.

1шт.

9

1974022C1

SUPPORT

1шт.

10

1974037C1

CIRCLIP,Ext, M37.1

1шт.

11

863-16040

HEX SOC SCREW,M16 x 40mm, Cl 12.9

M16 x 40; 12.9

8шт.

12

828-16055

BOLT,Hex, M16 x 2 x 55mm, Cl 10.9

2шт.

13

896-12016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

2шт.

14

628-20055

BOLT,Hex, M20 x 2.5 x 55mm, Cl 10.9, Full Thd

1шт.

15

896-16020

WASHER,22mm ID x 44mm OD x 5mm Thk

22 x 44 x 5 mm

1шт.

16

1960217C4

SHIELD

ASSY., 90117, Independent Power Take Off

1шт.

17

1534664C1

SUPPORT

90117, Short

1шт.

18

1534665C1

SUPPORT

90117, Short

1шт.

19

131388A1

TRAILER HITCH

PACKAGE, 90117, Consists Of: 20-23

1шт.

20

131389A1

TRAILER HITCH

CLEVIS

1шт.

21

828-16070

BOLT,Hex, M16 x 2 x 70mm, Cl 10.9

4шт.

22

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

4шт.

23

829-1416

NUT,M16, Cl 10

4шт.
