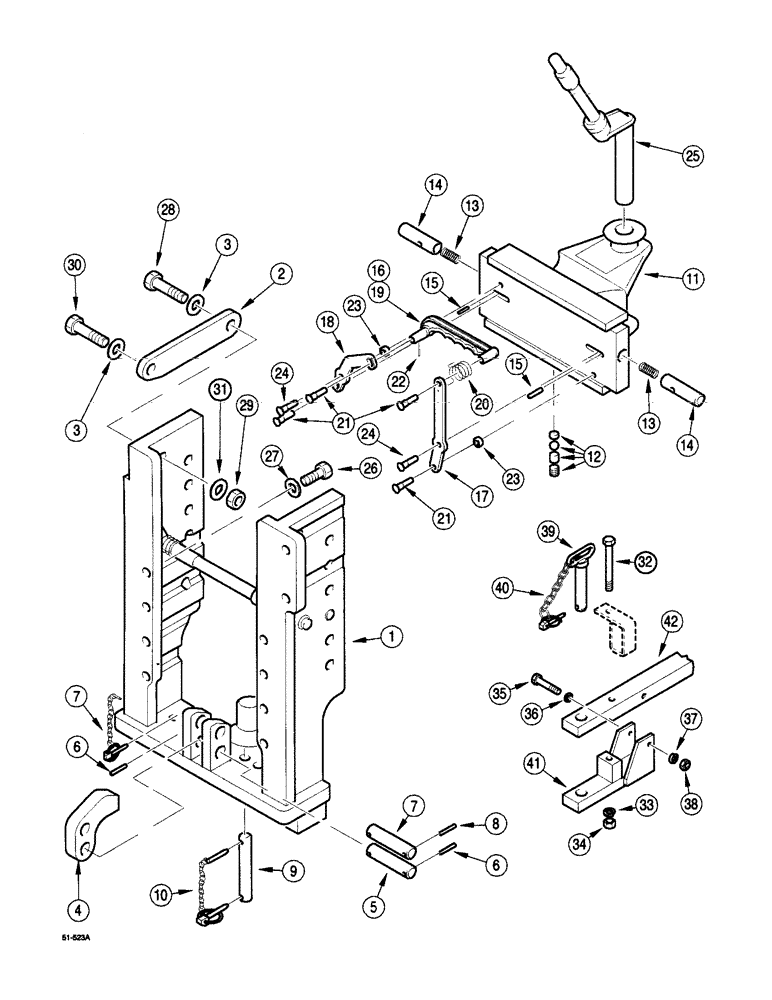

Запчасти Case IH 5150 (9G-074) - AUTO TRAILER HITCH - STANDARD CLEVIS, (JJF1036659 - ) (09) - CHASSIS/ATTACHMENTS

136201A1

HITCH ASSY

90117, Consists Of: 1-25

1шт.

1

139376A1

SUPPORT ASSY.

1шт.

2

175151A1

LARGE PLATE

PLATE, LARGE 241 mm

1шт.

3

896-16020

WASHER,22mm ID x 44mm OD x 5mm Thk

22 x 44 x 5 mm

2шт.

4

141035A2

LATCH

1шт.

5

141036A1

PIN

ASSY., 90117, Includes: 6

1шт.

6

838-5836

LOCK PIN,M8 x 36, Slotted

8 x 38 mm

2шт.

7

141038A1

PIN

ASSY., 90117, Includes: 8

1шт.

8

NSS

NOT SOLD SEPARAT

PIN roll

1шт.

9

139129A1

HITCH PIN

ASSY., 90117, Includes: 10

2шт.

10

NSS

NOT SOLD SEPARAT

CHAIN ASSY.

1шт.

11

143893A1

TRAILER HITCH

SHACKLE, 90117, Consists Of: 12-15

1шт.

12

177336A1

BRAKE ASSY.

BRAKE ASSY.

1шт.

13

141013A1

SPRING

ASSY.

2шт.

14

141014A1

PIN

2шт.

15

738-5520

LOCK PIN,5mm OD x 20mm L, Slotted

2шт.

16

175101A1

LEVER

90117, Includes: 17-24

1шт.

17

NSS

NOT SOLD SEPARAT

BAR 90117, Order: 175101A1

1шт.

18

NSS

NOT SOLD SEPARAT

BAR, 90117, Order : 175101A1

1шт.

19

NSS

NOT SOLD SEPARAT

HANDLE ASSY., 90117, Order: 175101A1

1шт.

20

NSS

NOT SOLD SEPARAT

SPRING, 90117, Order: 175101A1

1шт.

21

NSS

NOT SOLD SEPARAT

PIN cross, 90117, Order: 175101A1

4шт.

22

738-1516

LOCK PIN,M5 x 16, Slotted

4шт.

23

NSS

NOT SOLD SEPARAT

SPACER ASSY.

2шт.

24

NSS

NOT SOLD SEPARAT

PIN cross, 90117, Order: 175101A1

2шт.

25

1974073C1

CLEVIS PIN

ASSY.

2шт.

26

962-16045

HEX SOC SCREW,M16 x 45mm, Cl 10.9

M16 x 45

10шт.

27

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

10шт.

28

828-20080

BOLT,Hex, M20 x 2.5 x 80mm, Cl 10.9

1шт.

29

829-1320

NUT,M20, Cl 10

10шт.

30

628-20050

BOLT,Hex, M20 x 50mm, Cl 10.9

10шт.

31

896-16020

WASHER,22mm ID x 44mm OD x 5mm Thk

22 x 44 x 5 mm

1шт.

32

828-16160

BOLT,Hex, M16 x 2 x 160mm, Cl 10.9

1шт.

33

896-12016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

1шт.

34

829-1316

NUT,M16, Cl 10

1шт.

35

828-12110

BOLT,Hex, M12 x 1.75 x 110mm, Cl 10.9

1шт.

36

896-12012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

1шт.

37

892-11012

LOCK WASHER,M12

1шт.

38

829-1412

NUT,M12, Cl 10.9

1шт.

39

1974215C3

HITCH PIN,40mm OD x 185mm L

ASSY., 90117, Includes: 39

1шт.

40

1974219C1

CHAIN (AG)

ASSY., 90117, Order: 1974215C3

1шт.

41

1973926C2

SUPPORT

STRAP ASSY.

1шт.

42

1332020C3

BAR

1шт.
